TRITON
| Multifunctional wheelchair

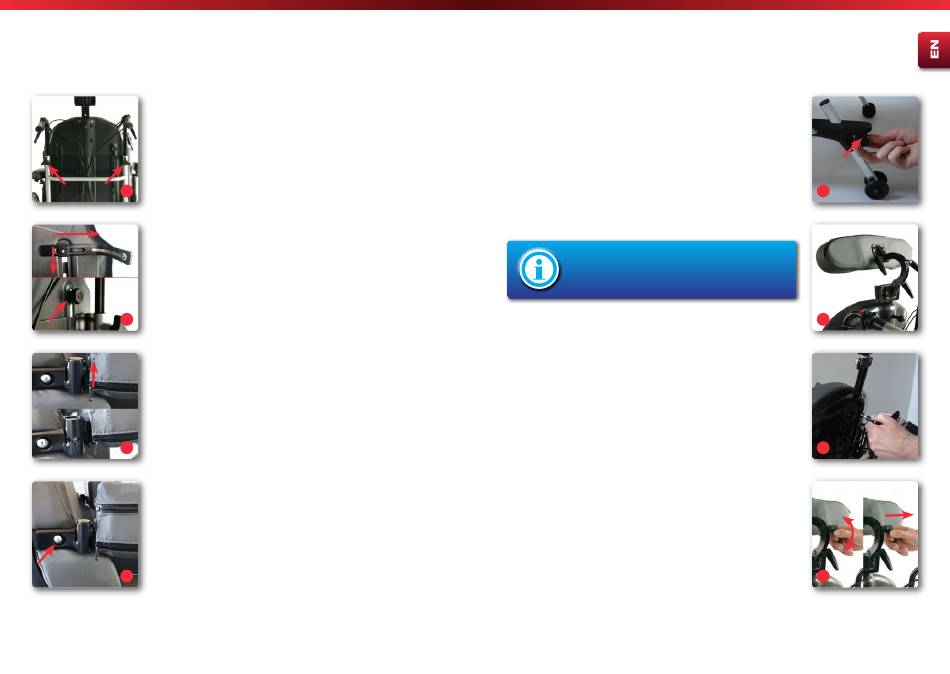

4.11. Push handles

The Triton push handle can be continuously adjusted upward by
17 cm.
Loosen the plastic screws to the rear on the back tube.
Adjust the push handle to the desired height and tighten the socket
24
head screws again.
At the crossbar between the handles, you will find the release lever
to adjust the seat and backrest angle (Fig. 24).
4.12. Trunk support pads
The height, width and angle of the side of the Triton's trunk support
pads can be adjusted.
25
Loosen the upper plastic screws at the back (Fig. 25).
Position the trunk support pads at the desired height and width of
the chest.
Re-tighten the plastic screw.
You can adjust the angle by pulling the trunk support pad upward
until the teeth are disengaged. (Fig. 26).
Position the trunk support pads at the desired angle to the chest.
Release the trunk support pad again; it will click into place
26
automatically.
In order to remove the pad, hold the button pushed in and pull the
pad forwards out of the bracket (Fig. 27).
4.13. Tip protection
The anti-tipping protectors prevent the wheelchair from tipping over
backwards There must be a gap of 3-5 cm between the anti-tip
27
wheels and the ground.
It is highly recommended that the anti-tippers be used when
the wheelchair is being operated by inexperienced users or by
wheelchair users with an amputated leg.
50
Multifunctional wheelchair |
The anti-tippers are attached as a pair to the right-hand and
lefthand sides of the frame.
The height of the anti-tippers can be adjusted.
Pull the metal disc backwards and slide the anti-tipper into the
desired position (Fig. 28).
Release the disc once again.
The wheel will now click firmly into place in the next possible
position.
Always use the anti-tip wheels in pairs.
4.14. Head rest
The Triton wheelchair is equipped with a headrest; its angle, height
and depth can be adjusted. (Abb. 29).
Pull the locking mechanism on the backrest out (Fig. 30).
Position the headrest at the desired height and then let go of the
locking mechanism.
The slide bar will snap into place in the next possible position.
With the help of the quick-release lever in the neck and head area of
the headrest, the depth and angle of the headrest can be adjusted
(Fig. 31).
Release the screw connection by pulling the lever upward.
Position the headrest at the required depth.
Re-tighten the screw connection with the help of the lever.
In order to bring the lever to another position without loosening the
screw, pull the lever to the side; it can therefore be adjusted without
moving the screw.
Bischoff & Bischoff GmbH | 01.06.2019
TRITON
28
29
30
31
51
