9.3.4

Making holes for the pipes

• Case A: Pipework exiting from the rear of the unit.
In this case, a suitable hole must be made in the wall
behind the unit (see Figures 9.6, 9.7 and 9.8).
- Drill a hole in accordance with the diameter and position
as indicated in Figures 9.6, 9.7 and 9.8, ensure the hole is
slightly descending to the outside to allow for a fall in the
drain line.
The dimensions are given in mm.

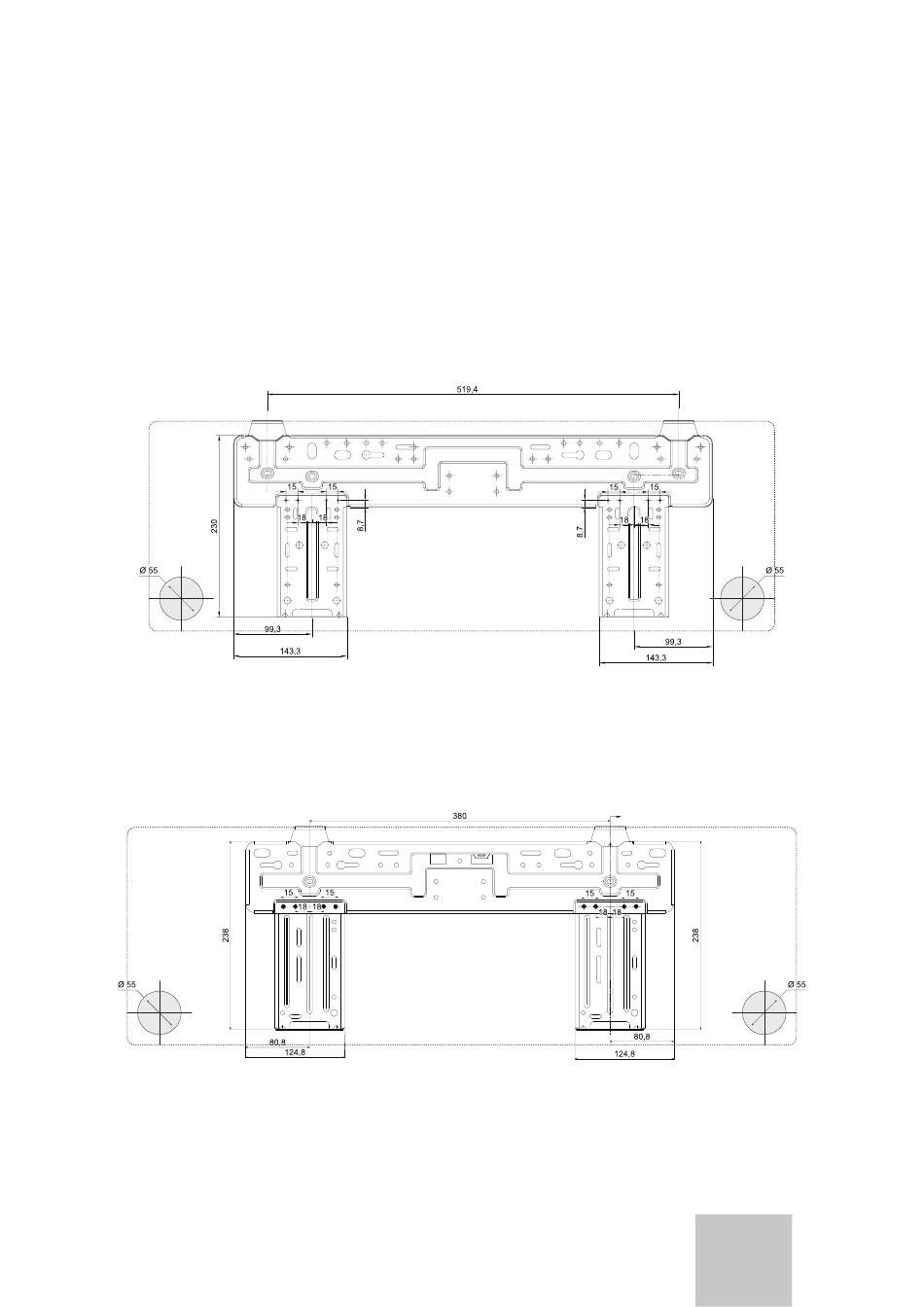

Fig. 9.6 Mounting plate for VAI 6-025 WMNI.
Fig. 9.7 Mounting plate for VAI 6-035 WMNI.
