Configuracion

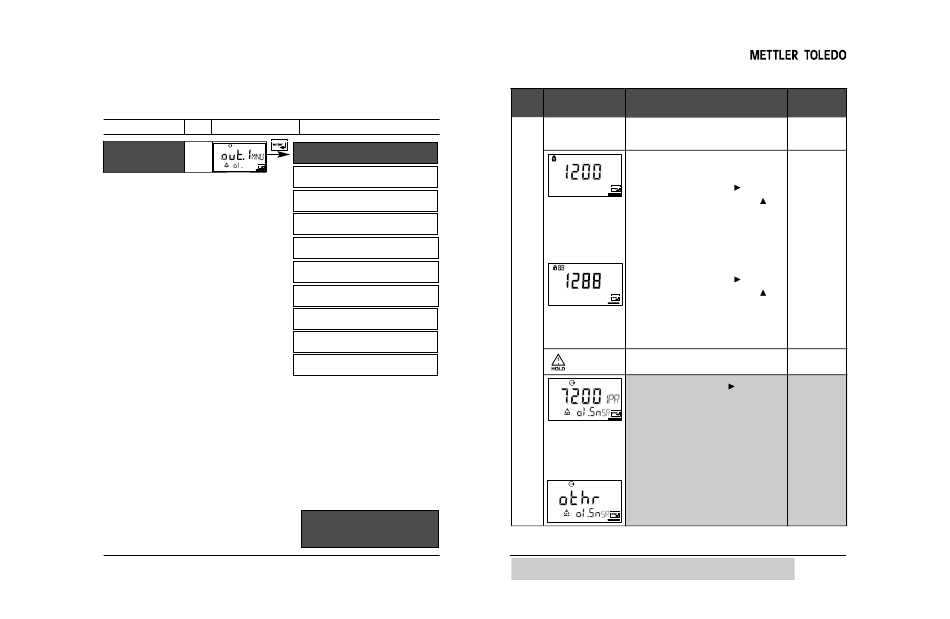

Salida 1

Seleccionar sensor
Grupo menu Cod. Display
Salida 1
o1.
30
Seleccionar item del menu
Seleccion del sensor
Selec. la variable medida
Selec. solucion (Conc)
Selec. 0-20 / 4-20 mA
Caracteristica: LIN / LOG
Entrar inicio corriente
Entrar fin corriente
Establecer filtro de salida
22 mA en caso de error
Modo Hold (Mantener)
Fin:
Pulse conf, luego enter
Cond Ind 7100 e
Code Display
Action
o1.
Select configuration
(Press conf.)
For parameter set 1:
Enter mode code "1200"
(Select position using
key and edit number using
After correct input a welcome
text (CONF) is displayed for
When the display reads "1200",
approx. 3 s
press enter to confirm.)
For parameter set 2:
Enter mode code "1288"
(Select position using
key and edit number using
When the display reads "1288",
After correct input a welcome
press enter to confirm.)
text (CONF) is displayed for
approx. 3 s
The Transmitter is in HOLD
mode (HOLD icon is on).
Select sensor * with
key. Proceed with enter.
Note:
After each sensor selection the
nominal cell factor of the sensor
is stored.
To adjust the cell factor to the
Transmitter, calibrate the sensor
afterwards!
Note: Characters represented in gray are flashing and can be edited.
*) These parameters are only edited in parameter set 1.
They are valid for both parameter sets.
Choices
arrow
.
arrow
.
7200 IPR
arrow
(7201 IPR
7202 IPR
other)
