7. Control By Universal DMX
Controller

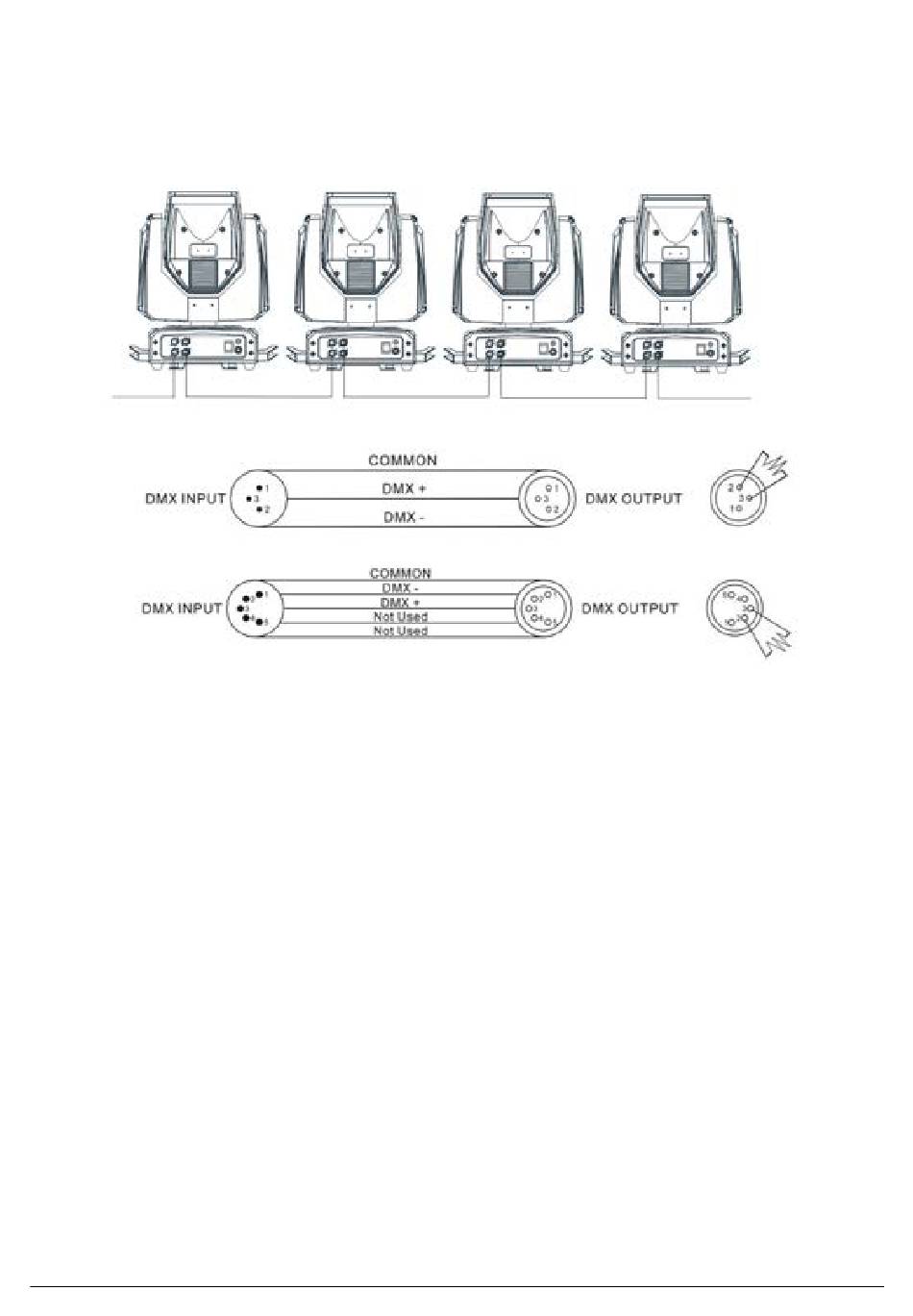

7.1 Connection

Unit 1
1. At last unit, the DMX cable has to be terminated with a
terminator. Solder a 120-ohm 1/4W resistor between pin
2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in
the DMX-output of the last unit.
2. Connect the unit together in a "daisy chain" by XLR plug
cable from the output of the unit to the input of the next unit.
The cable cannot be branched or split to a "Y" cable. DMX 512
is a very high-speed signal. Inadequate or damaged cables,
soldered joints or corroded connectors can easily distort the
signal and shut down the system.
3. The DMX output and input connectors are pass-through
to maintain the DMX circuit, when one of the units' power is
disconnected.
4. Each lighting unit needs to have a DMX address to receive
the data by the controller. The address number is between
0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to
reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR. 3
pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive
signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin
3: Positive signal (+), Pin4, Pin5 not used.
RAZOR 7R BEAM
ENGLISH VERSION
Unit 2 Unit 3

7.2 Channel Mode Setting

Enter menu mode, select DMX Functions, press ENTER button
to confirm, use UP and DOWN button to select DMX Channel
Mode, press ENTER button to confirm, present channel mode
will blink on the display, use UP and DOWN button to select
Mode1 (15 channels mode) or Mode 2 (14 channels mode)
or Mode 3 (18 channels mode), press ENTER button to store.
Press MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Unit 4
p. 17
