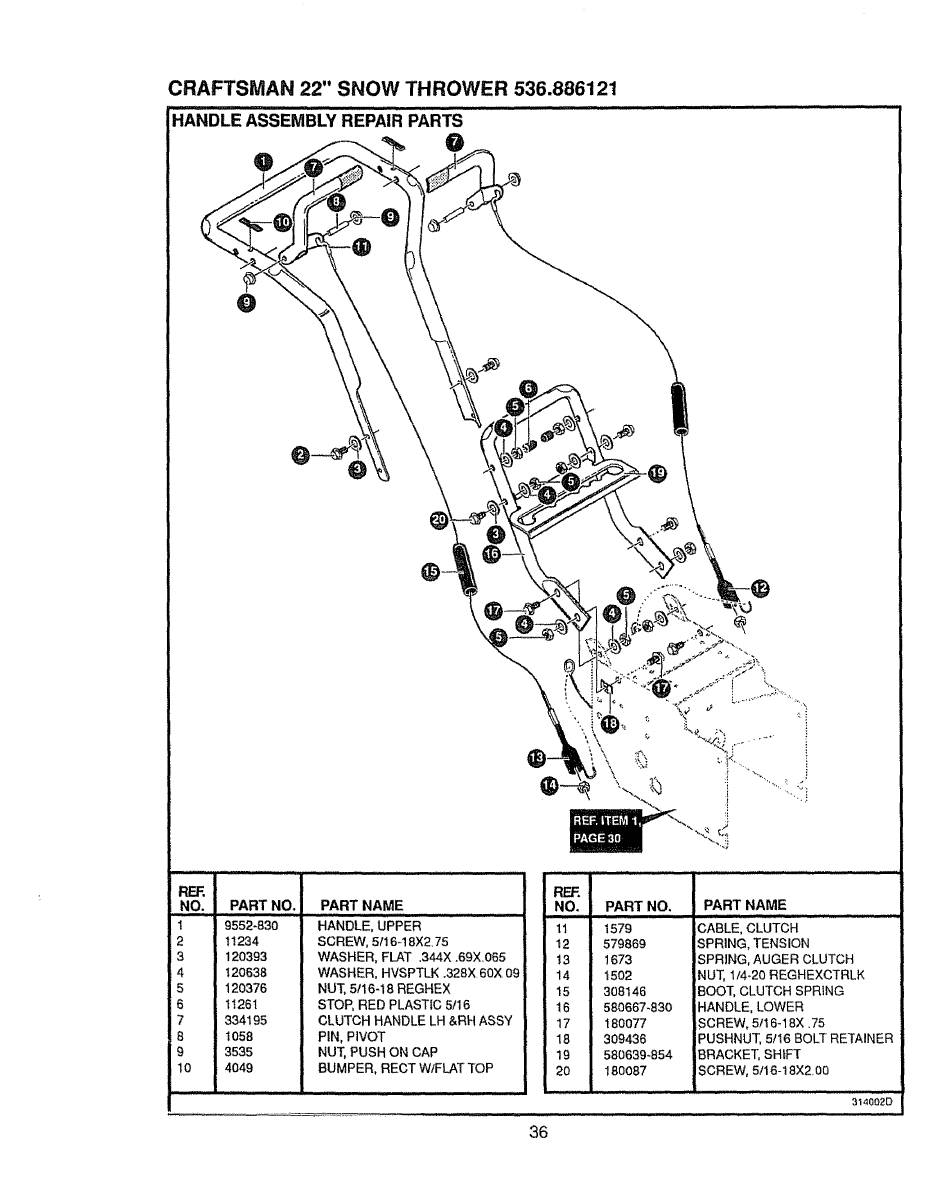

CRAFTSMAN 22" SNOW THROWER 536.886121
HANDLE ASSEMBLY REPAIR PARTS ........................... .....
,,
NO. PART NO,
1 9552-830
2 11234
3 120393
4 120638
5 120376
6 11261
7 334195
8 1058
9 3535
10 4049
PART NAME
HANDLE, UPPER
SCREW, 5116-t 8X275
WASHER, FLAT .344X .69X_065
WASHER, HVSPTLK .328X 60X.09
NUT, 5116-18 REGHEX
STOP, RED PLASTIC 5/16
CLUTCH HANDLE LH &RH ASSY
PIN, PIVOT
NUT, PUSH ON CAP
BUMPER, RECT W/FLAT TOP
RF_,,
NO.
17
12
13
14
15
16
17
18
19
20
PART NO,
1579
579869
1673
1502
308146
580667-830
180077
309436
580639_854
180087
' i .................... Jl,,
PART NAME
CABLE, CLUTCH
SPRING, TENSION
SPRING, AUGER CLUTCH
NUT, 114-20 REGHEXCTRLK
BOOT, CLUTCH SPRING
HANDLE, LOWER
.SCREW, 5/16-18X .75
PUSHNUT, 5/t6 BOLT RETAINER
BRACKET, SHIFT
SCREW, 5116-18X200
314002D
