INTRODUCTION
EN
This instruction sheet provides you with the information required to
safely own and operate your product. Retain these instructions for future
reference.
The product you have purchased is of the highest quality workmanship
and material, and has been engineered to give you long and reliable
service. This product has been carefully tested, inspected, and packaged
to ensure safe delivery and operation. Please examine your item(s)
carefully to ensure that no damage occurred during shipment. If damage
has occurred, please contact the place of purchase. They will assist you
in replacement or repair, if required.
READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING
TO INSTALL, OPERATE, OR SERVICE YOUR PRODUCT. KNOW
THE PRODUCT'S APPLICATION, LIMITATIONS, AND POTENTIAL
HAZARDS. PROTECT YOURSELF AND OTHERS BY OBSERVING
ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH THESE
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE!
SPECIFICATIONS
DISCHARGE: 14S – 3", 16S – 3"
HANDLING CAPABILITIES: 2" spherical solids
HOUSING: Cast Iron
VOLUTE: Cast Iron
IMPELLER: Non-clog cast iron, with pressure relief vanes.
MOTOR: PSC, 1625 RPM, with automatic overload protection
HARDWARE: 300 series stainless steel
BEARING: Ball
SHAFT SEAL: Mechanical, spring loaded, rotating carbon with Nitrile
boot and stationary ceramic seat, with secondary Nitrile exclusion seal
POWER CORD: 16 AWG 3-conductor copper stranded; 18 AWG (208-
240V models)
COOLING: The motor housing contains oil to provide cooling for the
motor and to lubricate bearings and seals. These pumps are capable of
operating with the motor housing partially exposed for extended periods
of time, providing sufficient motor cooling and bearing lubrication.

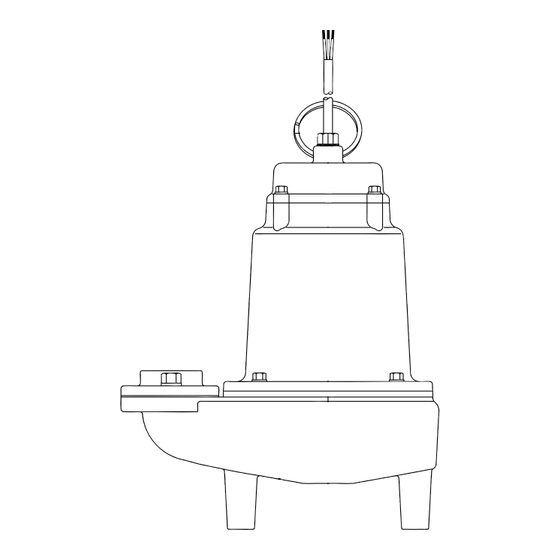

Figure 1
MODEL
14S-CIM
16S-CIM
14S-CIM
16S-CIM
6.92"
9.89"
14.07"
AMPS/
LISTING HP VOLTS WATTS
UL 1/2 115 11.6/1100
UL 1 230 11.0/1900 10800 9600
READ ALL INSTRUCTIONS AND SAFETY GUIDELINES THOROUGHLY.
FAILURE TO FOLLOW THE GUIDELINES AND THE INSTRUCTIONS
COULD RESULT IN SERIOUS BODILY INJURY AND/OR PROPERTY
DAMAGE.
WARNING: Risk of electric shock. This pump is supplied with a
grounding conductor and/or grounding type attachment plug. To
reduce the risk of electric shock, be certain that it is connected to a
properly grounded, grounding type receptacle.
The 115V pumps are equipped with a 3-prong electrical plug. The third
prong is to ground the pump to prevent possible electrical shock hazard.
Do not remove the third prong from the plug. A separate branch circuit
is recommended. Do not use an extension cord.
When a pump is in a basin, etc. do not touch motor, pipes or water until
unit is unplugged or shut off. If your installation has water or moisture
present, do not touch wet area until all power has been turned off. If shut-
off box is not accessible, call the electric company to shut off service to
the house, or call your local fire department for instructions. Failure to
follow this warning can result in fatal electrical shock.
The flexible PVC jacketed cord assembly mounted to the pump must not
be modified in any way, with the exception of shortening the cord to fit
into a control panel. Any splice between the pump and the control panel
must be made within a junction box and mounted outside of the basin,
and comply with the National Electrical Code. Do not use the power cord
for lifting the pump.
The pump motor is equipped with an automatic resetting thermal
protector and may restart unexpectedly. Protector tripping is an
indication of motor overloading as a result of operating the pump at
low heads (low discharge restriction), excessively high or low voltage,
inadequate wiring, incorrect motor connections, or a defective motor or
pump.
1. DO NOT USE TO PUMP FLAMMABLE OR EXPLOSIVE FLUIDS
SUCH AS GASOLINE, FUEL OIL, KEROSENE, ETC. FAILURE TO
FOLLOW THIS WARNING CAN RESULT IN PERSONAL INJURY
AND/OR PROPERTY DAMAGE.
2. During normal operation the pump is immersed in water. Also, during
rain storms, water may be present in the surrounding area of the
pump. Caution must be used to prevent bodily injury when working
near the pump:
a. The plug must be removed from the receptacle prior to touching,
servicing or repairing the pump.
b. To minimize possible fatal electrical shock hazard, extreme care
should be used when changing fuses. Do not stand in water
while changing fuses or insert your fingers into the fuse socket.
17.18"
6.75"
PERFORMANCE:
SHUTOFF
HEAD
5' 10' 20' 30'
GALLONS PER HOUR
FEET P.S.I.
--
7800 6000 2100 25'
6000 2400 35'
SAFETY GUIDELINES
2.00"
POWER WEIGHT
CORD (lbs.)
10.8 20' 80
15.1 20' 88
