6. Intended use of the machine.

The machine is intended for stationary sanding/grinding of metal materials and for use with
radius grinding module GXR or centerless unit GXC using manufacturer approved grinding
belts.
The grinding machine is designed for industrial indoor use in moisture free surroundings.
The grinding machine is only for metal grinding and must not be used for grinding of wood or
plastic materials.

7. Adjustments.

Before any work on the machine itself, pull the power plug from the socket outlet.
WARNING

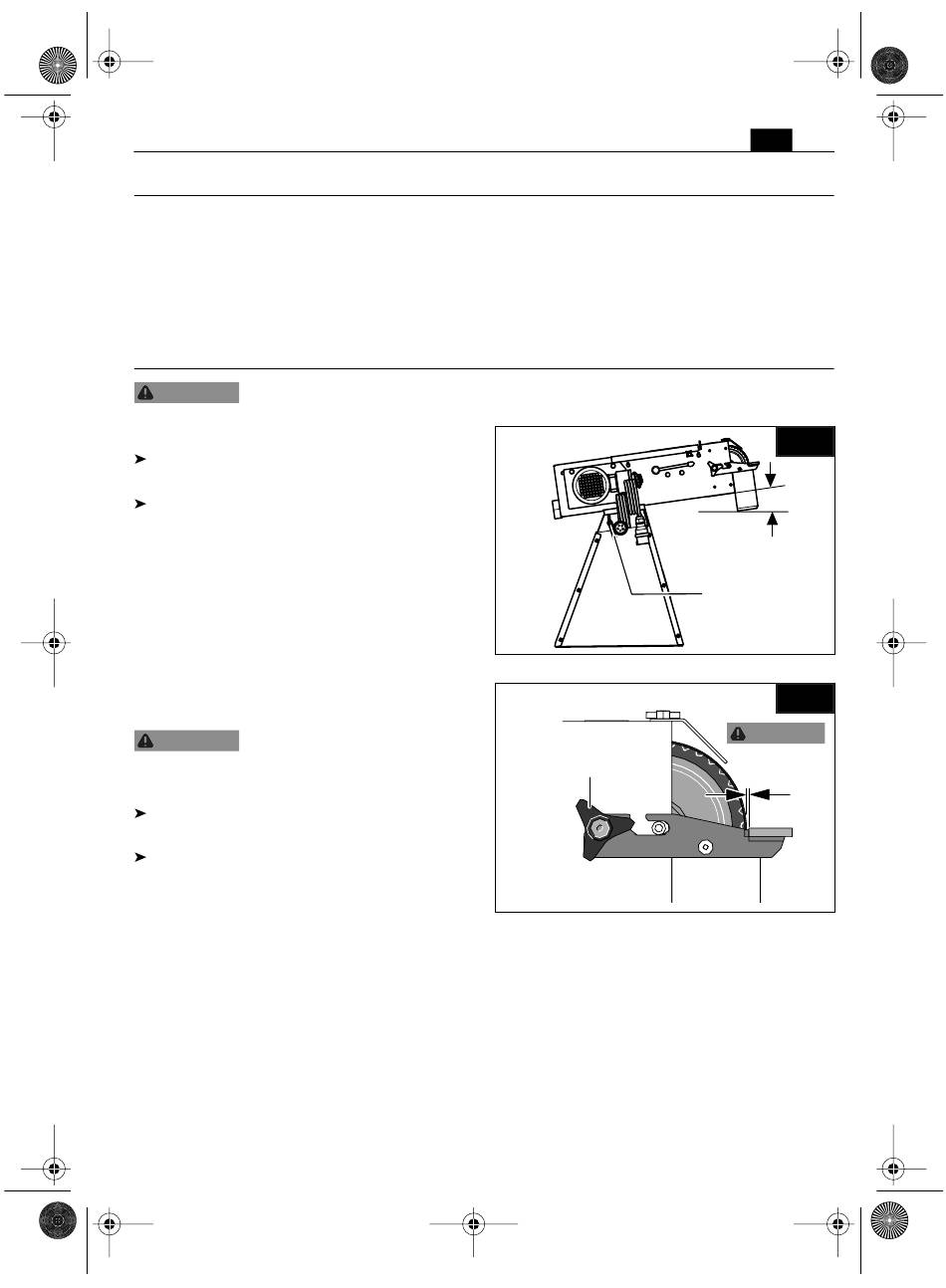

7.1 Adjusting the incline (Figure 5).

Loosen both clamping levers. Adjust the
machine to the required working height.
Tighten both clamping levers again.
7.2 Adjusting the grinding rest
(Figure 6).
The gap size must always be
WARNING
adjusted to the correct size.
Thin workpieces could be pulled into the
machine and cause severe or fatal injury.
Loosen star-knob bolt and adjust the gap
size to 2 mm (max.).
Tighten the star-knob bolt again.
Adjustment knob
for grinding rest
en
11
Fig. 5
Clamping lever
Fig. 6
WARNING
max 2 mm
