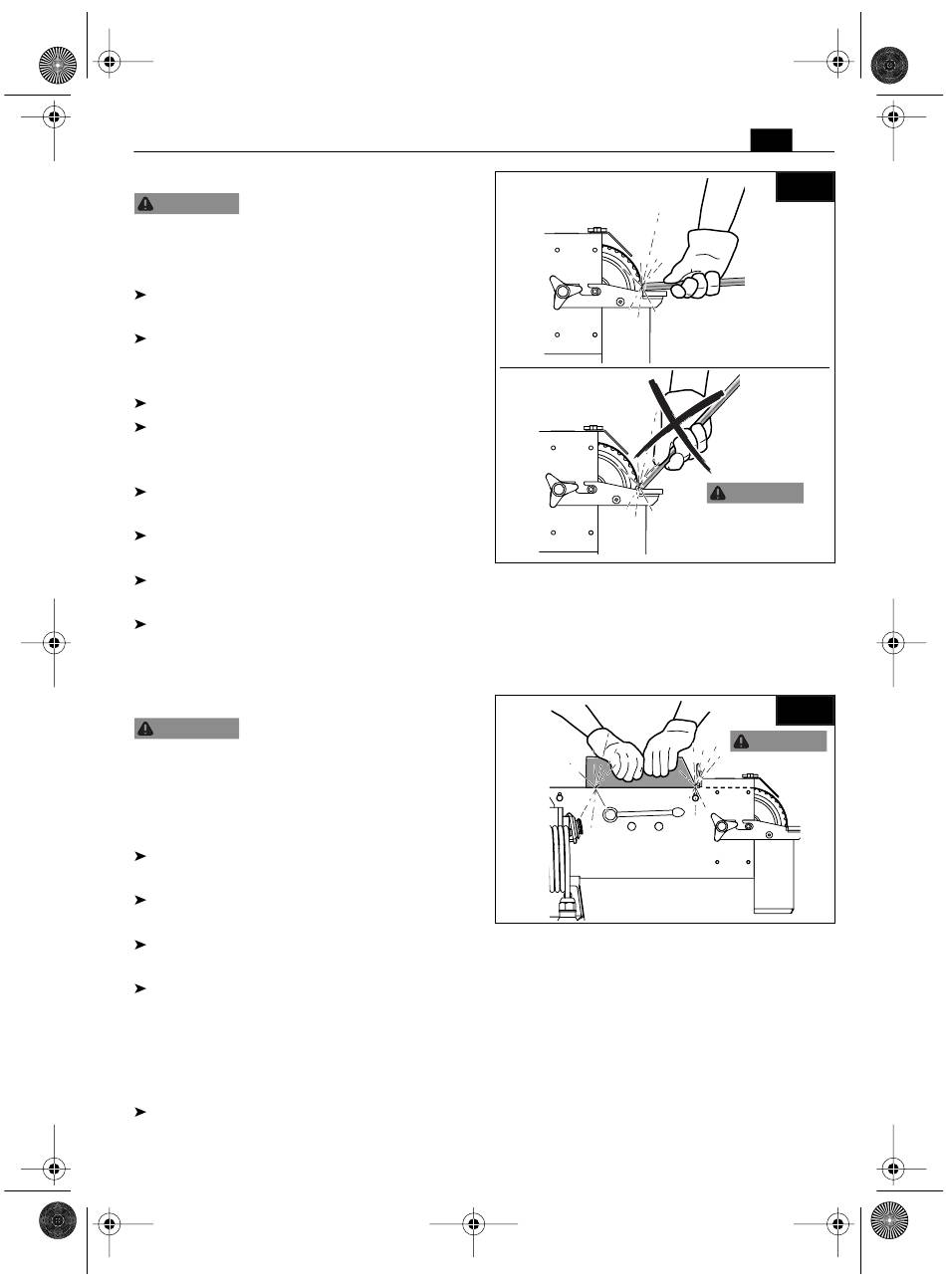

9.6 Contact grinding (Figure 10).

The workpiece must always lie
WARNING
securely on the grinding rest
and the stop. Workpieces that are too small or
too thin may not be worked. Danger of injury
from workpieces pulled into the machine.
Check if the star-knob bolt is firmly tight-
ened.
Ensure that the top protective cover is
secured with star-knob bolt and that the
side cover is shut.
Check the gap size of the grinding rest.
Check the position of the face-grinding
rest. The adjustment screws must be in
the bottom position.
Check if the screws of spark guard are
properly tightened.
Switch the machine on and check the belt
run.
Place the workpiece firmly onto the grind-
ing rest.
Guide the workpiece with both hands or
fasten it in a fixture.

9.7 Face grinding (Figure 11).

Hold the workpiece with both
WARNING
hands. The workpiece must
always lie securely on the face grinding rest
and the stop. Workpieces that are too small or
too thin may not be worked. Danger of injury
from workpieces being pulled in or thrown
from the machine.
Loosen the star-knob bolts and remove
the top protective cover.
Make sure that the gap size is correctly
adjusted.
Switch the machine on and check the belt
run.
Guide the workpiece with both hands and
remove it to upward after the working
procedure. (Figure 11)

9.8 Extraction device

The machine can be connected via the
sleeve to a dust extraction system.
en
15
Fig. 10
WARNING
Fig. 11
WARNING
