5. Tester is now ready to take a current measurement
Note:
Always set the correct fuse rating on the tester or the result will not be accurate.
If the required rating is not shown on the display then use the nearest rating available.
6. Place the red and black probes on the exposed metal contacts on rear of the fuse.

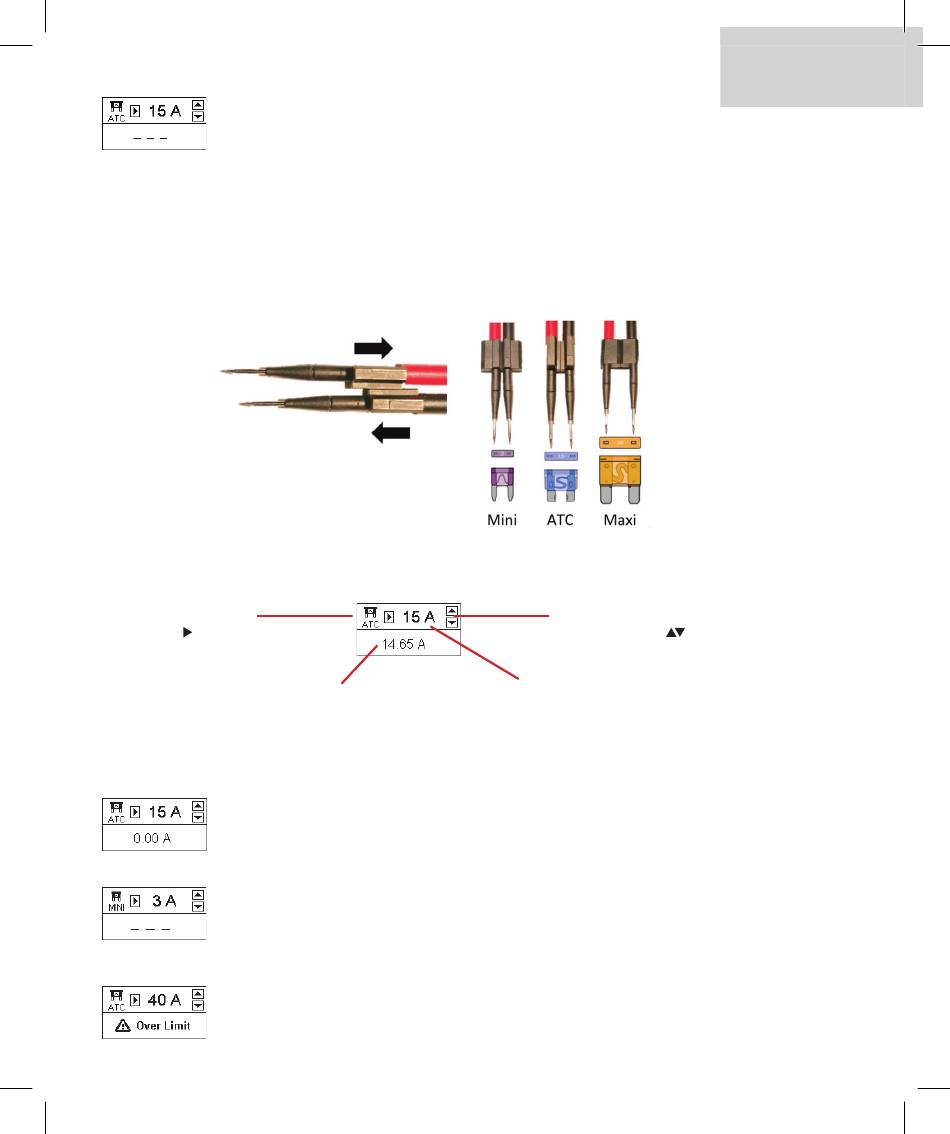

7. For faster testing the probes can be connected together by sliding the two halves together to suit Mini, ATC or Maxi fuses
8. If current is detected the tester will beep once and display as shown below
9. The probes can now be removed and the HOLD function will retain the display
Fuse type can be changed by
pressing the key to cycle
between MINI, ATC and
MAXI fuses
10. To cancel the HOLD function and test another fuse, press any key on the tester
11. If no current is detected the tester will beep continuously and display 0.00A. This can be used to confirm continuity of a fuse without removing it.
12. If an open circuit is detected, the display will show - - - as below. Check the fuse is not blown and the probe contact is good
13. If the measured current is higher than the fuse rating Over Limit will be displayed. If this happens check the correct fuse value is selected
10422 RMM500 Instructions UK 140x170mm 15pp MULTI LANGUAGE.indb 5
Measured
current
To quickly increase or decrease
the fuse current, use
Fuse rating
5
GB
keys
