English

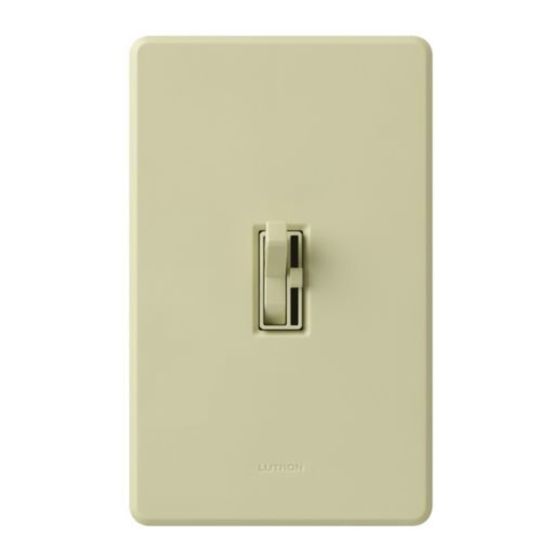

Incandescent /
120 V~ Halogen Dimmer
Rated at 120 V~ 60 Hz
Important Notes
Please read before installing.
1. CAUTION: Use only with permanently-installed incandescent or 120 V~ halogen fixtures. To avoid
overheating and possible damage to other equipment, do not use to control receptacles, fluorescent
lighting fixtures, motor-driven appliances, or transformer-supplied appliances.
2. Install in accordance with all national and local electrical codes.
3. Only one dimmer can be used in a 3-way/4-way circuit.
4. When no "grounding means" exist within the wallbox then the NEC
mer without a grounding connection to be installed as a replacement, as long as a plastic, noncom-
bustible wallplate is used. For this type of installation, cap or remove the green ground wire on the
dimmer and use an appropriate wallplate such as Lutron's Claro
5. For new installations, install a test switch before installing the dimmer.
6. Protect dimmer from dust and dirt when painting or spackling.
7. Recommended minimum load is 40 W.
8. It is normal for the dimmer to feel warm to the touch during operation.
9. Clean dimmer with a soft damp cloth only. Do not use any chemical cleaners.
10. For indoor use only.
11. Compact fluorescent lamps may not operate properly with this control.
12. Controls must be mounted vertically. See stamp on control for correct positioning.
Multigang Installations
When installing more than one control in the
same wallbox, it may be necessary to remove
all inner side sections prior to wiring (see dia-
gram). If pre-installed, remove the Lutron
wallplate and wallplate adapter from dimmer.
Using pliers, bend side section up and down
until it breaks off. Repeat for each side section
to be removed. Removal of dimmer side sec-
tions reduces maximum load capacity. Refer to
chart below for maximum dimmer capacity.
Each Control Has Inside
Sections Removed
Dimmer Capacity Chart
Dimmer No sides
Rating removed
600 W 600 W
1000 W 1000 W
Technical Assistance
?
If you have questions concerning the installation or operation of this product, call the
Lutron Technical Support Center. Please provide exact model number when calling.
U.S.A. and Canada (24 hrs /7days)
1.800.523.9466
Other countries (8 am – 8 pm ET)
+1.610.282.3800
Limited Warranty
(Valid only in U.S.A., Canada, Puerto Rico, and the Caribbean.)
Lutron will, at its option, repair or replace any unit that is defective in materials or manufacture within one year after purchase. For warranty serv-
ice, return unit to place of purchase or mail to Lutron at 7200 Suter Rd., Coopersburg, PA 18036-1299, postage pre-paid.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND THE IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED
TO ONE YEAR FROM PURCHASE. THIS WARRANTY DOES NOT COVER THE COST OF INSTALLATION, REMOVAL OR REINSTALLATION,
OR DAMAGE RESULTING FROM MISUSE, ABUSE, OR DAMAGE FROM IMPROPER WIRING OR INSTALLATION. THIS WARRANTY DOES
NOT COVER INCIDENTAL OR CONSEQUENTIAL DAMAGES. LUTRON'S LIABILITY ON ANY CLAIM FOR DAMAGES ARISING OUT OF OR
IN CONNECTION WITH THE MANUFACTURE, SALE, INSTALLATION, DELIVERY, OR USE OF THE UNIT SHALL NEVER EXCEED THE PUR-
CHASE PRICE OF THE UNIT.
This warranty gives you specific legal rights, and you may
have other rights which vary from state to state. Some
states do not allow the exclusion or limitation of incidental
or consequential damages, or limitation on how long an
implied warranty may last, so the above limitations may not
apply to you.
This product may be covered by one or more of the fol-
lowing U.S. patents: D558,151; D566,659; 4,939,383;
5,207,317; 5,637,930; 6,005,308; D364,141; and corre-
sponding foreign patents. Lutron, Claro, Diva and Satin
Colors are registered trademarks of Lutron Electronics
Co., Inc. NEC is a registered trademark of the National
Fire Protection Association, Quincy, Massachusetts. ©
2008 Lutron Electronics Co., Inc.
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
Printed in China
10/08 P/N 030-977 Rev. A
Models:
Lutron Technical Support Center
600 W 1000 W
DL-600PL DL-10PL
DL-603PL DL-103PL
Installation
DV-600P DV-10P
DV-603P DV-103P
1 1
DVSC-600P DVSC-10P
DVSC-603P DVSC-103P
DVW-600P LG-10P
DVW-603P LG-103P
LG-600P LX-10PL
LG-603P LX-103PL
LX-600PL
2 2
LX-603PL
2008, Article 404.9 allows a dim-
®
or Satin Colors series wallplates.
® ®
3 3
Do Not Remove
Ground (Bare Copper
Outside Sections
or Green Wire)
SINGLE-POLE:
Insulated wires connected to
two screws of the same color.
Replace with a SINGLE-POLE
dimmer. See Step 5a when
wiring.
Middle Control Has Two
4 4
Side Sections Removed
1 side 2 sides Important Note:
Your wall switch may have two wires attached to the same screw (see illustrations
removed removed
below for examples). Tape these two wires together before disconnecting. Connect
500 W 400 W
both wires to the dimmer wire in Step 5.
800 W 650 W
Fax +1.610.282.6311
http://www.lutron.com
Important Wiring Information
When making wire connections, follow the recommended strip lengths and combinations for
the supplied wire connectors. Note: Wire connectors provided are suitable for copper wire
030-977 030-977
1.800.523.9466
Turning OFF power.
• Turn power OFF at circuit breaker (or remove fuse).
Removing wallplate and switch.
• Remove wallplate and switch mounting screws.
• Carefully remove switch from wall (do not remove wires).
Warning: Before proceeding, verify that
power to the switch is OFF. Otherwise,
death or serious injury could result.
Identifying the type of circuit.
Different-colored screw
(Common). Actual location may
vary.
OR
Ground (Bare
Copper or
Green Wire)
Tag
3-WAY:
Insulated wires connected to three screws. One of
OR these wires is connected to a screw of a different-
color (not green) or labeled COMMON. MARK or
TAG this wire to identify it when wiring. Replace
with a 3-WAY dimmer. See Step 5b when wiring.
Disconnecting switch wires.
• Carefully disconnect switch wires.
One wire in the back- One continuous wire
wired hole and one to to the screw.
the screw.
Screw Terminals:
Turn screws to
loosen.
only. For aluminum wire, consult an electrician.
Small:
Strip insulation 3/8 in (10 mm) for 14 AWG (1.5 mm
Strip insulation 1/2 in (13 mm) for 16 or 18 AWG (1.0 or
0.75 mm ) wire
2
Use to join one 14 AWG (1.5 mm 2 ) supply wire with one
16 or 18 AWG (1.0 or 0.75 mm 2 ) control wire.
Large:
Strip insulation 1/2 in (13 mm) for 10, 12 or 14 AWG (6 , 2.5
or 1.5 mm 2 ) wire
Strip insulation 5/8 in (16 mm) for 16 or 18 AWG (1.0 or
0.75 mm 2 ) wire
Use to join one or two 12 or 14 AWG (2.5 or 1.5 mm
supply wires with one 10, 12, 14, 16, or 18 AWG control
wire.
Twist wire connector tight.
Be sure no bare wire is exposed.
Large
Small
24 hrs / 7 days www.lutron.com
5 5 Wiring the Dimmer.
• For installations involving more than one control in a wallbox, refer to
the section on Multigang Installations before beginning.
NOTE: Depending on model number,
the dimmer may include a Lutron
Claro or Satin Colors wallplate. If
so, please remove the front
piece of the wallplate from the
adapter before installing. This will
expose dimmer mounting holes
and prevent wallplate damage
while installing dimmer.
5a - Single-Pole Wiring
Black
Ground
Green
Black Black
~
Green
120 V
60 Hz
Light
Ground
Neutral
5b - 3-Way Wiring
Black Tag
Green
Ground
Red
Tag 3-Way Switch
Dimmer
Black Red
Green Red
~
120 V
60 Hz
Backwired:
Ground
Light
Insert screw-
driver. Pull wire
Neutral
out.
NOTE: Dimmer can be installed in either location.
Wire location will vary by product. Reference wires by color, not location.
6 6 Mounting dimmer to wallbox.
• Form wires carefully into the wallbox, mount and align dimmer.
• Install wallplate.
2 ) wire
Attach standard wallplate. Attach Claro or Satin Colors wallplate.
OR
2 )
7 7
Turning ON power.
• Turn power ON at circuit breaker (or replace fuse).
Grasp and pull
front piece of
wallplate from
the wallplate
adapter.
• Connect the green dimmer
ground wire to the bare copper or
green ground wire in the wallbox.
(See Important Note 4.)
• Connect one of the black dimmer
wires to either of the wires
removed from the switch.
• Connect the remaining black
dimmer wire to the other wire
removed from the switch.
NOTE: To use a 3-way dimmer
(one black and two red wires) in a
single-pole application, cap off
one of the red wires and follow
instructions for single-pole wiring.
(If the on/off switch works back-
wards, switch the red wires.)
NOTE: Only one dimmer can be
used in a 3-way circuit.
• Connect the green dimmer
ground wire to the bare copper or
green ground wire in the wallbox.
(See Important Note 4.)
• Connect the black dimmer wire
to the wire removed from the dif-
ferent-colored screw on the
switch (marked or tagged wire) in
Step 3. Remove tag from wire.
• Connect one of the red dimmer
wires to either of the remaining
wires removed from the switch.
• Connect the remaining red dim-
mer wire to the remaining wire
removed from the switch.
