38 - MAGNETIC LOCK

Put the PROG key in position as shown in the figure below and press
the LEARN button according to the setting for magnetic lock.
Once selected, return the PROG switch to the OFF position (all
down) for the control panel to save the configuration.

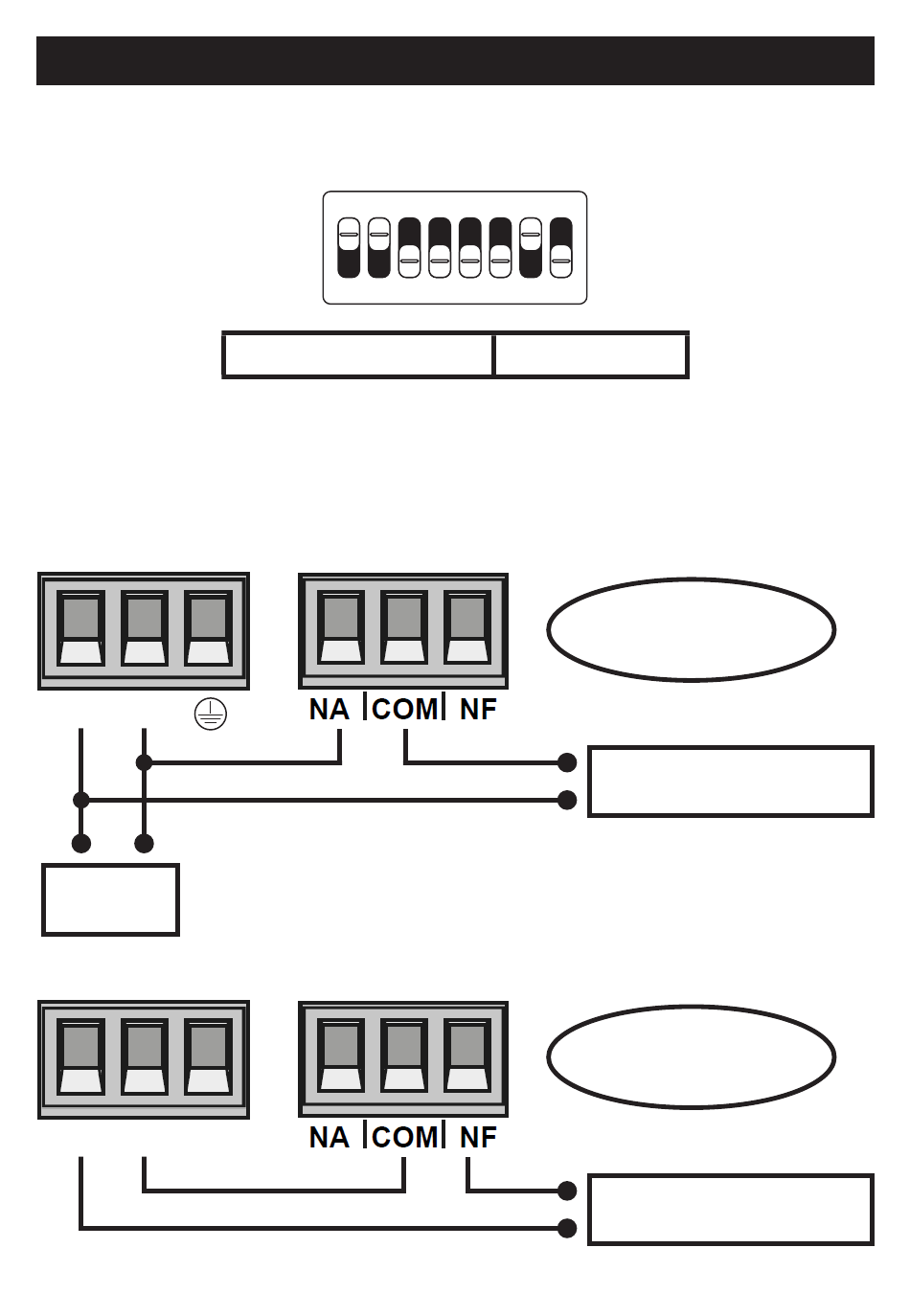

Below are the connection diagrams:
Connectors of the central
|
AC NETWORK
AC network
127/220V
Connectors of the central
| GND FTC |
12V
ON
1 2 3
LED blinks 4 times Magnetic lock
DP
4 5 6 7 8
ENGLISH
CONNECTION
IN 127/220V
Magnetic lock
127/220V
CONNECTION
IN 12V
Magnetic lock
12V / 500mA
