9. The symbol .
10. The alarm will sound for 120 seconds when the preset alarm time is reached. Press any button at
the back of the clock to de-activate the alarm. The clock will automatically enter snooze mode if
the alarm is not de-activated.
11. Press the "SNOOZE/LIGHT" button (1) when the alarm is on, to enter "snooze" mode.
symbol ZZ will flash when the clock is on "snooze" mode. The alarm will sound again in 5 minutes.
Press any button at the back of the clock to de-activate the alarm.
12. Please note that alarm time setting ceases to function when the clock is in RCC synchronisation
mode. Wait until synchronisation has ended before setting the alarm time.
CONFIGURING THE THERMOMETER
The weather station is equipped to synchronise up to 3 remote temperautre sensors. One remote
temperature sensor is included. Additional remote temperature sensors area available for purchase
separately. Please contact your local distributor to purchase these sensors.
Remote temperature sensors

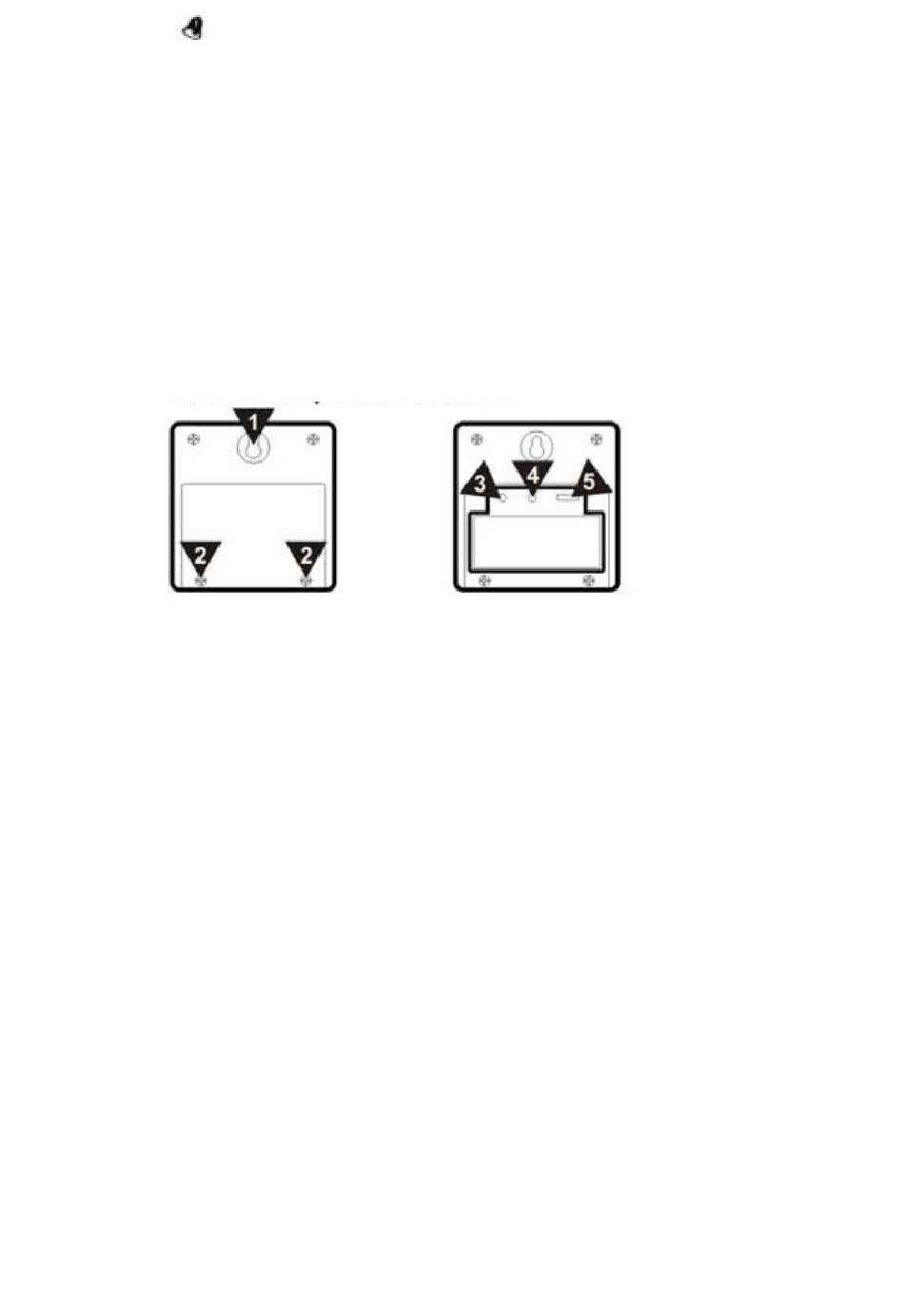

Fig. 4 Back View
1. Hole to hang the sensor
2. Battery compartment screws
"TX" button
3.
"RESET" button
4.
"Channel 123" switch
5.

BATTERIES INSTALLATION

1. Open battery compartment at the back of the unit by removing the two small screws (RTS2) with a
Philips head screwdriver. (see figure 4)
Install / replace with 2 x "AAA" size batteries in the compartment. It is recommended that only
2.
alkaline batteries are used. Do not use rechargeable batteries.
3. The weather station is capable of receiving up to 3 different channels. Select the channel number
(1,2, or 3) by sliding the "Channel 123" switch (RTS 5).
sensor, select 1.
Press the "reset" button (RTS 4) once and the red light will flash once.
4.
5. Replace the battery compartment cover at the back of the unit by tightening the two screws (RTS
2).
INSTALLATION
1. Place the remote temperature sensor at a desired place by mounting the unit on a screw (screw
not inlucded) using the hole for hanging (RTS 1). Alternatively, the unit can be placed on a flat
horizontal surface.
2. The unit can be placed indoor or outdoor. The unit is weather-proof. Do not submerge unit in
water. Do not expose unit to water for prolonged periods. Avoid accumulation of water and or
snow on unit.
extreme or harsh weather conditions, including but not limited to hurricane, typhoon, and cyclones
will be shown when alarm A2 is on.
Avoid exposing unit to direct sunlight.
Fig.5 Back view - Open
If you only have 1 remote temperature
Remove unit from the exterior location in
5
