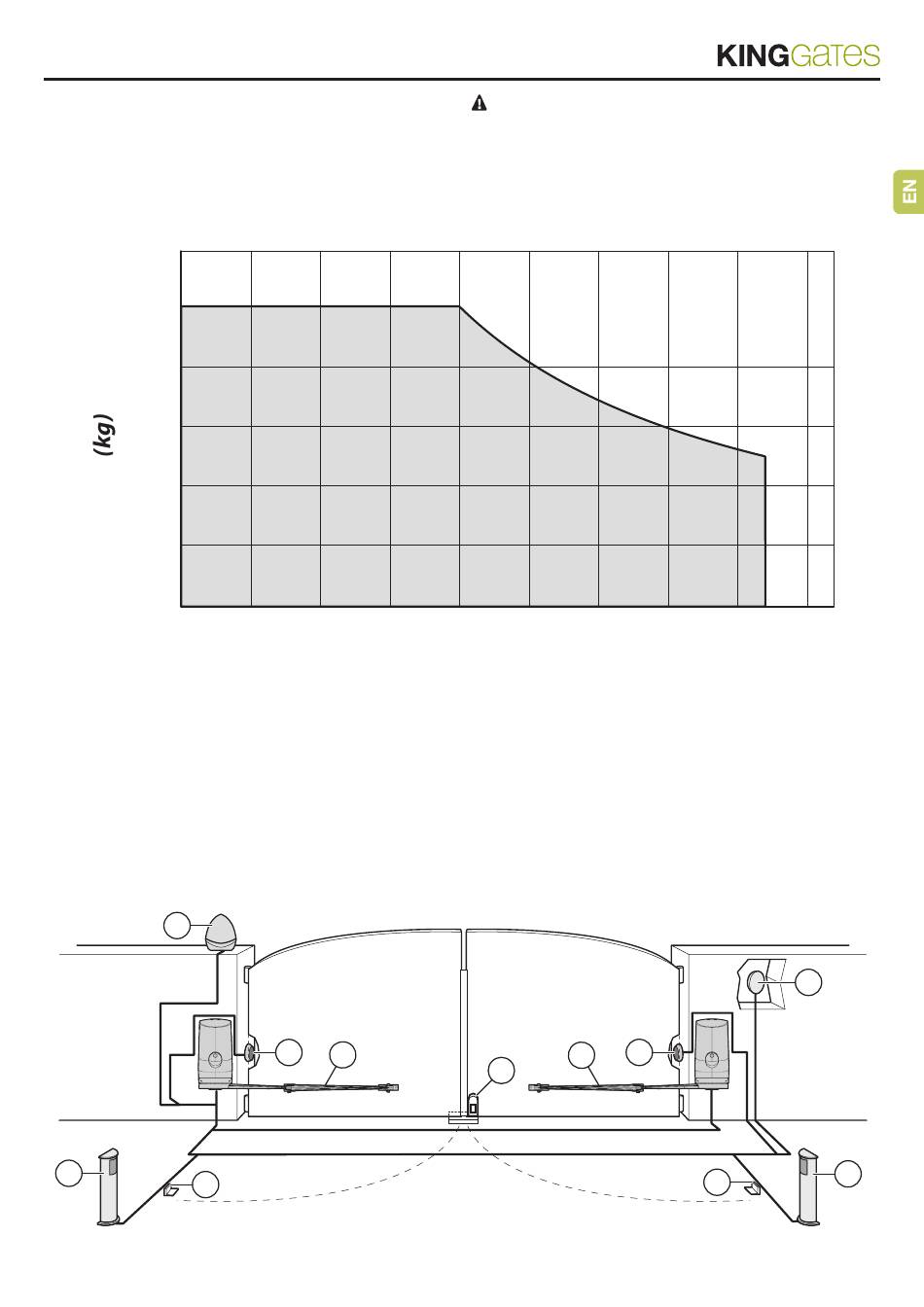

3.3 -
Use limitations
Before installing the product, check that the size and the weight of
the gate leaf are within the limits stated in chart 1.
kg - Maximum gate leaf weight
mm - maximum gate leaf length
500
400
300
200
100
3.4 -
Installation preparation works
Fig.2 shows an example of an automation system using King-
Gates components. These components are positioned following a
typical and standard setup.
With reference to Fig.2, establish the approximate position where
each component will be installed and then arrange any conduits
for the electrical wiring.
5
4
3
Chart 1 - Use limitations
500 1000
1500
2
1
WARNING!
- The single leaf must not exceed 4.2m in length.
2000
2500
3000
(mm)
Useful components for a complete system:
1 - MODUS MASTER gear motor
2 - Pair of photocells
3 - Pair of stops (open position)
4 - Photocell columns
5 - Flashing warning device with built-in antenna
6 - Key selector or digital keypad
7 - Vertical solenoid latch
8 - MODUS SLAVE gear motor
8
7
3500
4000
4500
6
2
3
4
Fig. 2
