LINEA 3000

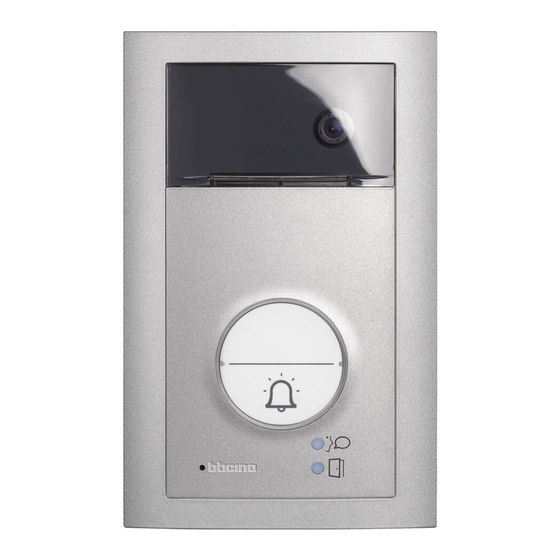

Colour video entrance panel with wide angle
camera and proximity reader
Description
2 WIRE wall-mounted pushbutton panel with zamak front cover, wide angle colour
camera and proximity reader. White LEDs for the lighting of the shooting field in low
light conditions. Can be configured for one-family or two-family installations. Can open
an electrical door lock directly connected between S+ and S- clamps (18 V 4 A impulsive,
250 mA holding current, 30 Ohm max). It can manage a maximum of 20 key cards (125
KHz) for the electric door lock release (including the one for the system management).
Nameplate lit by white LED.
Related items
343051 Rainshield
343061 Flush mounted accessory
350020 2-module flush mounted box
348260 Bag of door lock release key cards
348261 Bag of door lock release clear discs
Dati tecnici
Power supply from SCS BUS:
Stand by absorption (with backlighting LEDs off):
Stand by absorption (with backlighting LEDs on):
Max. operating absorption:
Colour sensor:
Lens:
Viewing angle:
Resolution:
Viewing field lighting:
Brightness adjustment:
Interlace:
Key card operating frequency:
Operating temperature:
Protection index:
Protection index against mechanical impact:
Dimensional data
www.bticino.com
18 – 27 Vdc
30 mA
40 mA
265 mA
1/3"
F 2.35 mm f 2.2
~ 110° on the diagonal
330 TV lines (horizontal)
white LEDs
Automatic
2:1
125 Khz
(-25) – (+70) °C
IP 54
IK 10
ST-00000758- EN
Front view without panel
16
15
14
13
12
11
10
9
8
Legend
1. Camera
LED for the shooting field lighting
2.
3. BUS connection clamps, door lock and local door release pushbutton
Call pushbuttons
4.
5. Key card reader aerial
Active connection notification LED
6.
Open door notification LED
7.
Microphone
8.
Microphone volume adjustment
9.
Loudspeaker volume adjustment
10.
Switch
11.
1=one-family
2=two-family
Key card programming pushbutton / Reset
12.
LED panel for call pushbutton lighting
13.
Configurator socket
14.
Brightness sensor for automatic activation of the night lighting
15.
Loudspeaker
16.
29/07/2020
343091 - 343093
1
2
3
4
5
6
7
1
