Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect
yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.

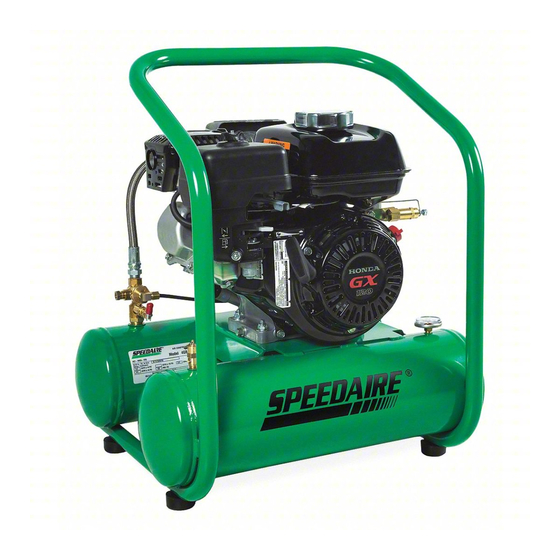

Speedaire Portable Gasoline
Air Compressor
Description
Speedaire gasoline air compressor was constructed with the highest level of precision
and accuracy. Each component has been rigorously tested by technicians to ensure
the quality, endurance and performance of this air compressor.
Unpacking
When unpacking the unit, carefully in-
spect for signs of obvious or concealed
freight damage. If damage does exist,
file a claim with the transportation
company immediately. Be sure that all
damaged parts are replaced and that
the mechanical and electrical problems
are corrected prior to operation of the
unit.
Specifications
Engine ..................................Honda 4.0 HP
Engine Oil ..........................................20 oz.
Compressor Pump .................. Single Stage
Pump Oil ..............................................7 oz.
Air Tank ........................................ 5 Gallons
Maximum Pressure ..........................125 PSI
CFM @ 90 PSI ..........................................3.9
Dimensions (in) ..... 21.5L x 18.25W x 24.5H
®
General Safety Information
1. Read Operating Instructions
Always become familiar with all
the instructions and warnings be-
fore operating any air compressor.
2. Risk of Explosion or Fire: Seri-
ous injury or death may occur from
normal sparks in the engine igni-
tion system or engine exhaust/muf-
fler. Always operate air compressor
in a well ventilated area free of
flammable vapors, combustible
dust, gases or other combustible
materials.
Printed in U.S.A.
06273
0405/097/VCPVP
DO NOT SMOKE if spraying flam-
mable material. Locate the air
compressor at least 20 feet away
from the spray area. (An addi-
tional hose may be required.)
Injury or death may occur as a
result of improper fueling. Do not
smoke while filling engine fuel
tank.
Never fill the engine fuel tank
while the engine is running or
hot. Allow the engine to cool two
minutes before refueling. Do not
refuel indoors or in a poorly venti-
lated area.
Always refuel slowly to avoid the
possibility of spilled fuel which
may cause a risk of fire.
Do not operate the unit if gasoline
is spilled. Wipe the air compressor
clean and move it away from the
spill. Avoid creating any ignition
until the gasoline has evaporated.
Do not store the air compressor
near an open flame or any equip-
ment such as a stove, furnace,
water heater, etc. which utilizes a
pilot light or sparking device.
A spark arrester must be added to
the muffler of this engine if it is
to be used on any forest covered,
brush covered or grass covered
unimproved land. The arrester
must be maintained in effective
working order by the operator.
Serious injury may occur if any
air compressor ventilation open-
ings are restricted, causing the air
compressor to overheat and start a
fire. Never place objects against or
on top of air compressor. Operate
air compressor at least 12 inches
away from any wall or obstruction
that would restrict proper ventila-
tion.
37-0823-062016
