Special Application: Metal Conduit

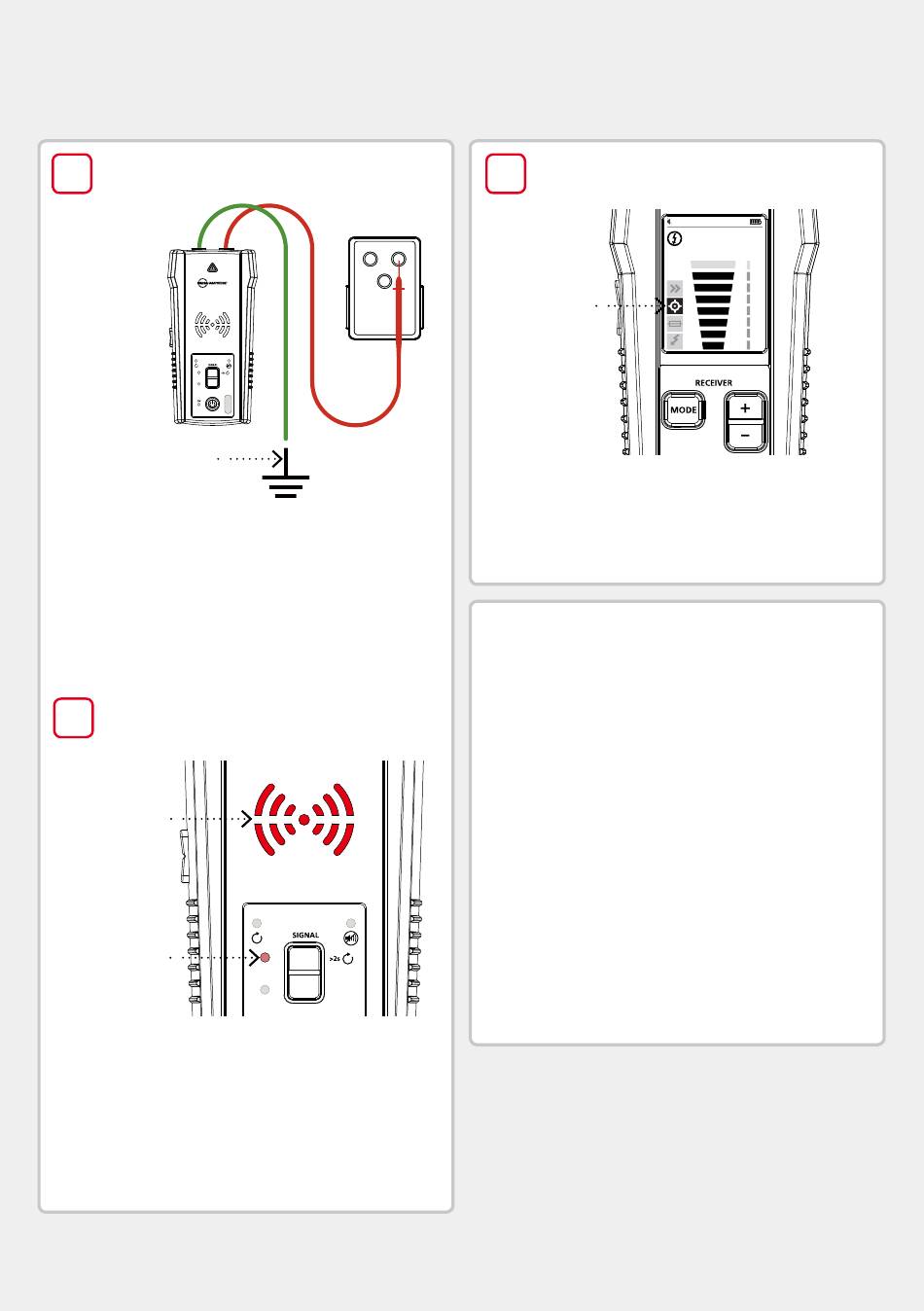

Set-up:
1
Test Leads
AT-6000-TE
TRANSMITTER
HI
LO
Proper connection with
separate ground
1. Connect the green and red test leads to the
Transmitter.
2. Plug the socket adapter onto the receptacle and
connect the red lead to the Energized hot wire.
The signal will only betransmitted between the
load-side to which the Transmitter is connected
and the source of power.
3. Connect the green wire to a separate ground.
Set-up:
2
Transmitter
Blinking
Transmitter
indicator showing
signal in
HIGH mode
1. Turn on the Transmitter.
2. Verify that the test leads are properly connected;
the red LED voltage status light should be on
for circuits with voltage above 30 V AC/DC, and
it should be off for De-energized circuits below
30 V AC/DC.
3. Select HIGH signal mode by pressing HI, LED
display will quickly begin to blink.
AT-6000-TE
TRANSMITTER
HI
LO
©2019 Beha-Amprobe
For detailed specifications and ordering go to beha-amprobe.com 6011095 A
®
Advanced Wire Tracer Series - Quick Guide
Set-up:
1
Receiver
Precision
tracing mode
1. Turn on the Receiver. Press the MODE button
to select a wire tracing mode (either Quick Scan
or Precision Tracing).
Receiver:
Tracing Wires in
Metal Conduit
1. Open junction boxes and use the Receiver Tip
Sensor to detect which wire in the junction box is
carrying the signal.
2. Move from junction box to junction box to follow
the path of the wire.
Important Notes:
Applying a signal directly to the conduit will send the
signal through all the conduit branches, making tracing
a particular conduit path impossible.
The Receiver is unable to pick up the signal from a
wire through a metal conduit. The metal conduit will
completely shield the tracing signal. The Receiver will be
able to detect wires in a non-metallic conduit. For these
applications follow general tracing guidelines.
88
NCV
AT-6000-RE
7
