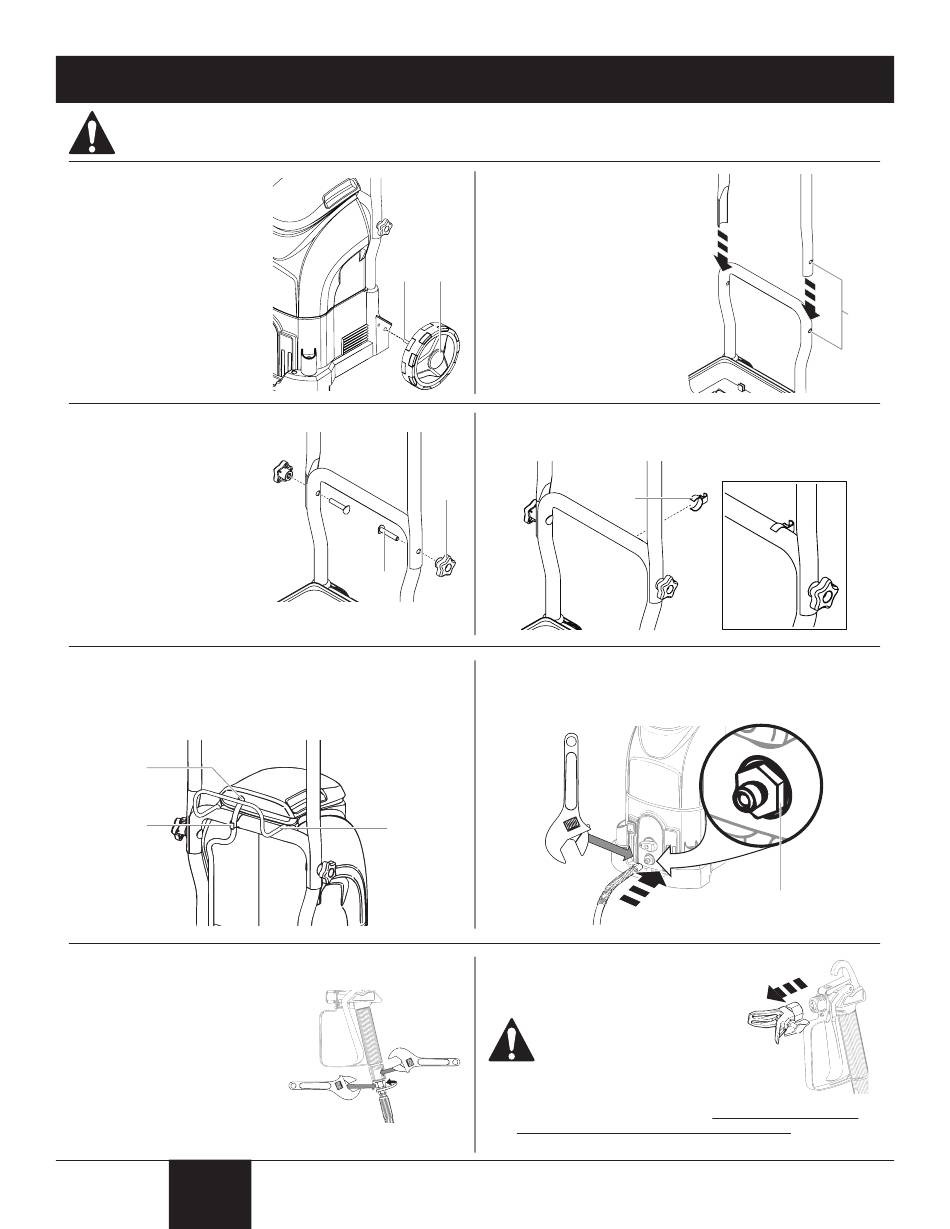

Do not plug in the power cord until assembly is complete.
1. Insert the axle pins (a)
through the holes in
the side of the sprayer
base as shown. Push
wheel in until the axle
snaps into place.
2. Snap the caps (b) into
the center of each
wheel as shown.
4. Insert screws (d)
through the holes in
the handles. Place
the nuts (e) over the
ends of the screws and
tighten.
6. Place the return tube into the return tube clip (g). Make
sure hopper is attached to unit and thread the end of the
return tube through the hole in the rear of the hopper lid (h).
Attach hose bracket (i).
(h)
(g)
8. Thread the other end of
the hose to the spray gun.
Hold the gun with one
adjustable wrench and
tighten the hose nut with
the other.
English

Assembly

3. Slide the top half of
the handle assembly
over the bottom half as
shown. Make sure the
holes in both the top
(a) (b)
and bottom halves line
up as shown (c).
5. Clip the return tube clip (f) onto the horizontal brace of
the lower handle assembly.
(e)
(d)
7. Thread one end of the high pressure spray hose to
the spray hose port. Hold the outlet valve (j) with an
adjustable wrench, and tighten the hose with the other.
(i)
9. Remove spray tip assembly
from the spray gun.
The spray tip assembly
comes assembled to the
spray gun for shipping
purposes only. The spray
tip assembly SHOuLD nOT be
assembled to the spray gun until
you are ready to paint. Complete Preparing the Sprayer
and Preparing the Spray Hose and Spray Gun instructions
first. Failure to comply could result in an injection injury.
6
(f)
x2
(c)
(j)
