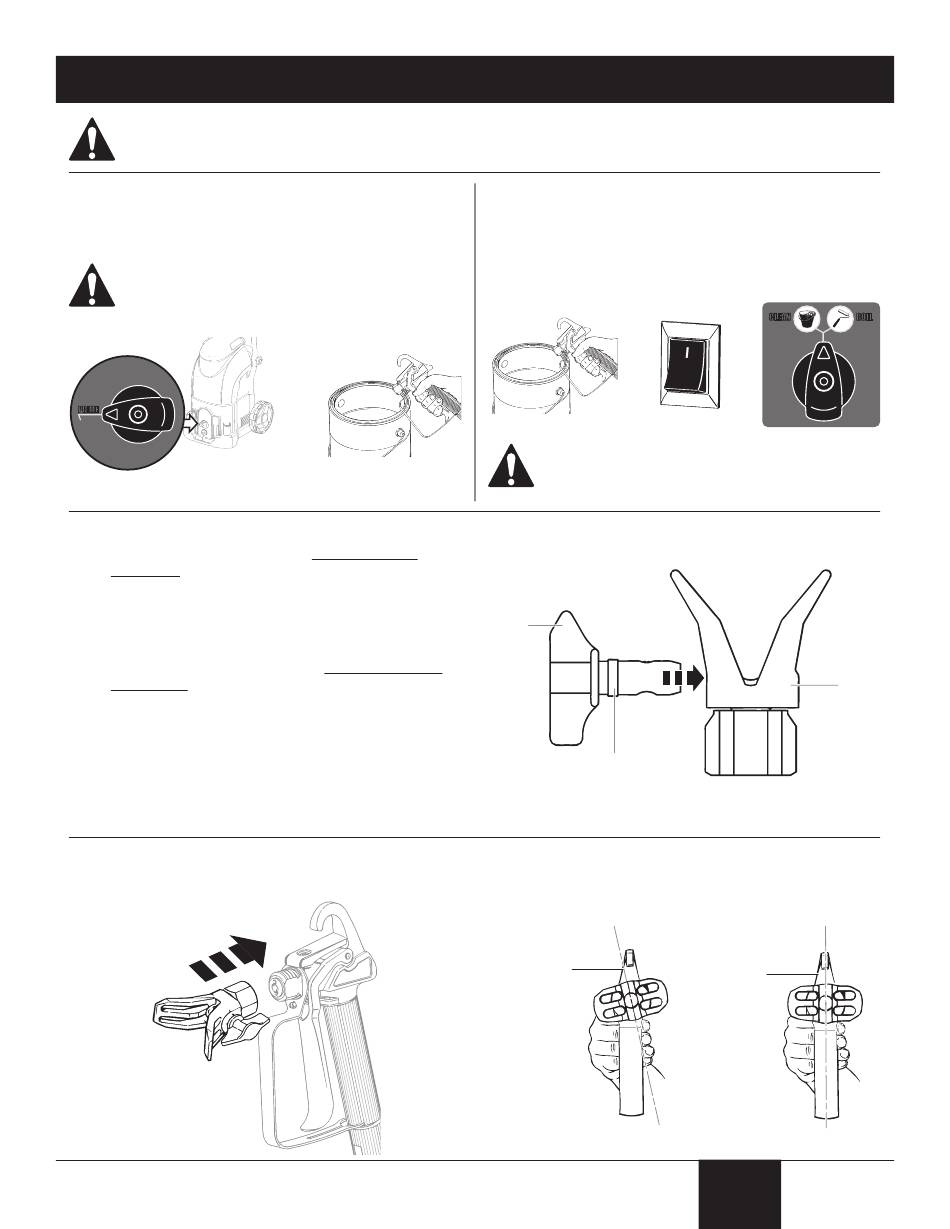

Preparing the Spray Hose and Spray Gun
The spray tip assembly should not be attached to the spray gun when purging the spray hose. Failure to comply
could result in an injection injury.
1. Unlock the spray gun trigger.
2. Make sure PRIME/SPRAY knob is set to PRIME.
3. Aim the spray gun at the side wall of a waste container.
If using oil-based materials, the spray gun must be
grounded (see Grounding the Spray Gun, page 7).
PRIME PRIME
5. Release trigger and perform the Pressure Relief
Procedure, page 7).
6. Lock the spray gun trigger.
7. Make sure the saddle seat and black seal are in
place inside the tip guard nut (see Components and
Description, page 4).
8. Insert gray spray tip (a) into the side of the red spray
guard (b). The pointed end (c) of the gray spray tip
should be facing forward as shown.
9. Thread the spray tip guard assembly onto the gun.
Tighten by hand.
4. While pulling the trigger, switch the pump ON (l), and
turn the PRIME/ SPRAY knob to SPRAY - MINIMUM
PRESSURE.
Hold the trigger until all air, water, or solvent is
purged from the spray hose and material is flowing
freely.
+
Whenever the PRIME/SPRAy knob is still on
SPRAy, there will be high pressure in the hose
and spray gun until the PRIME/SPRAy knob is
turned to PRIME.
(c)
(a)
Begin
tightening
the tip at
this angle
9
CLEAN CLEAN ROLL ROLL
+
(b)
. . .to achieve
the desired
spray angle
when tight.
