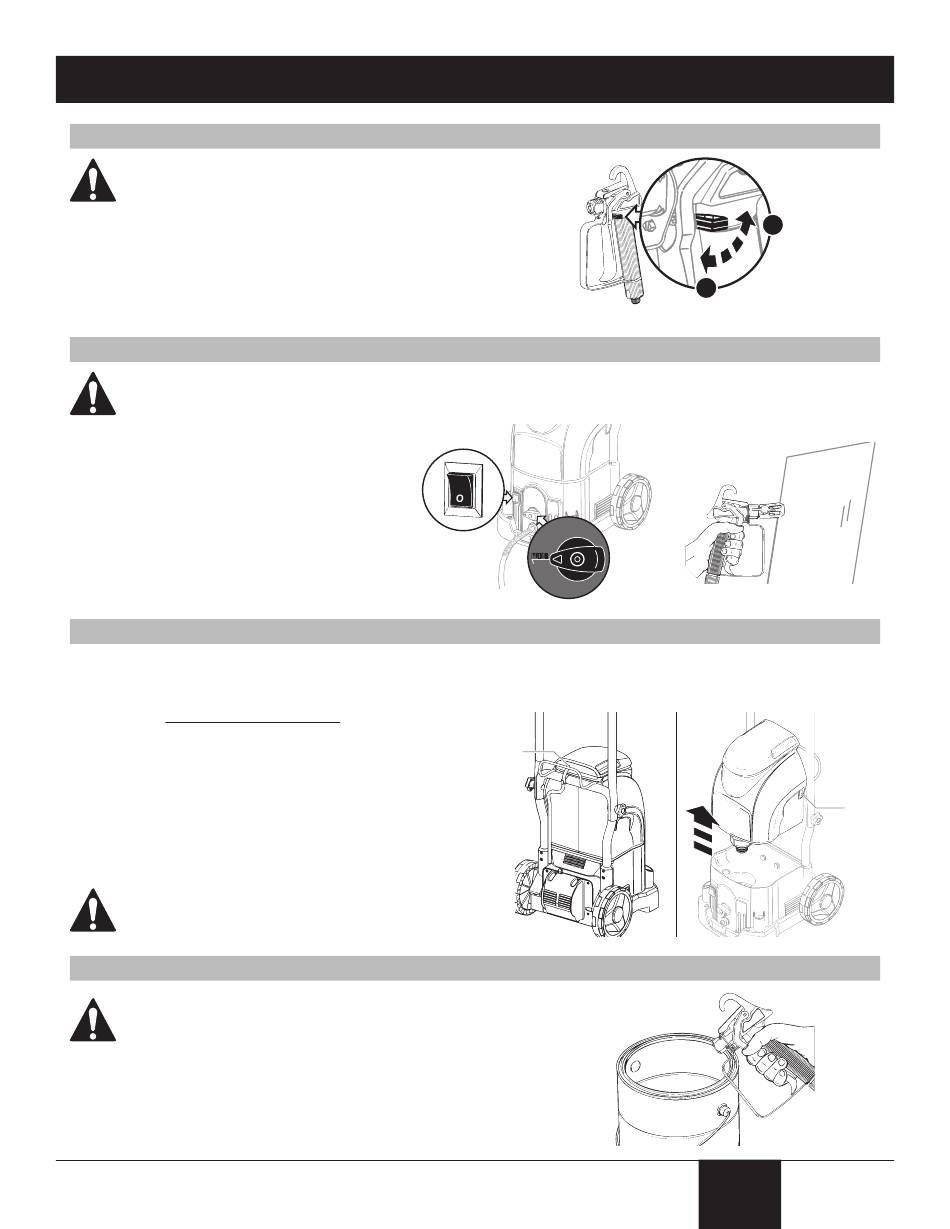

Before you Begin -

Locking / unlocking the Spray Gun
Always lock the trigger off when attaching the spray
tip or when the spray gun is not in use.
1. The gun is secured when the trigger lock is at a 90º angle
(perpendicular) to the trigger in either direction.
2. To unlock the gun, turn the trigger lock to be in line with
the trigger.

Pressure Relief Procedure

Be sure to follow the Pressure Relief Procedure when shutting the unit off for
any purpose. This procedure is used to relieve pressure from the spray hose.
1. Lock the spray gun trigger (see
directions above). Flip the ON/OFF
switch to the OFF position.
2. Turn the PRIME/SPRAY knob to PRIME.
3. Unlock the spray gun trigger. Trigger
spray gun onto a scrap piece of wood or
cardboard.

Removing / Emptying the Hopper

IMPORTAnT: Make sure your floors and furnishings are protected with drop cloths to avoid property damage.
IMPORTAnT: The hopper will not stand on its own. Make sure it is empty of all liquids before setting it down.
1. Perform Pressure Relief Procedure (see above).
2. Pull the return tube (a) from the rear of the hopper lid.
3. Grab hopper by the side handles (b) and gently pull it out.
4. When finished emptying / cleaning, replace hopper and
hopper lid.
5. Replace the return tube by inserting it through the notch in
the hopper lid.
The hopper can be heavy when filled with spraying
material. Make sure to lift with your legs and not
your back in order to reduce the risk of injury.
Grounding the Spray Gun (oil-based materials only)
If spraying or cleaning with with oil-based materials, the
spray gun must be grounded while preparing the spray
hose or cleaning.
Ground the gun by holding it against the edge of a metal
container while purging. Failure to do so may lead to a
static electric discharge which may cause a fire.
Keep hands clear of the fluid stream.
This section contains instructions that
will be repeated throughout this manual.
PRIME PRIME
(a)
7
1
2
(b)
