Safety strategy - The new chargers are not just characterised by purely functional features. In terms of
standard protec-
safety, the active inverters are also equipped to the highest standards. The following
tive features
safety features come as standard:
-
-
-
-
-
-

Controls and connections

General remarks

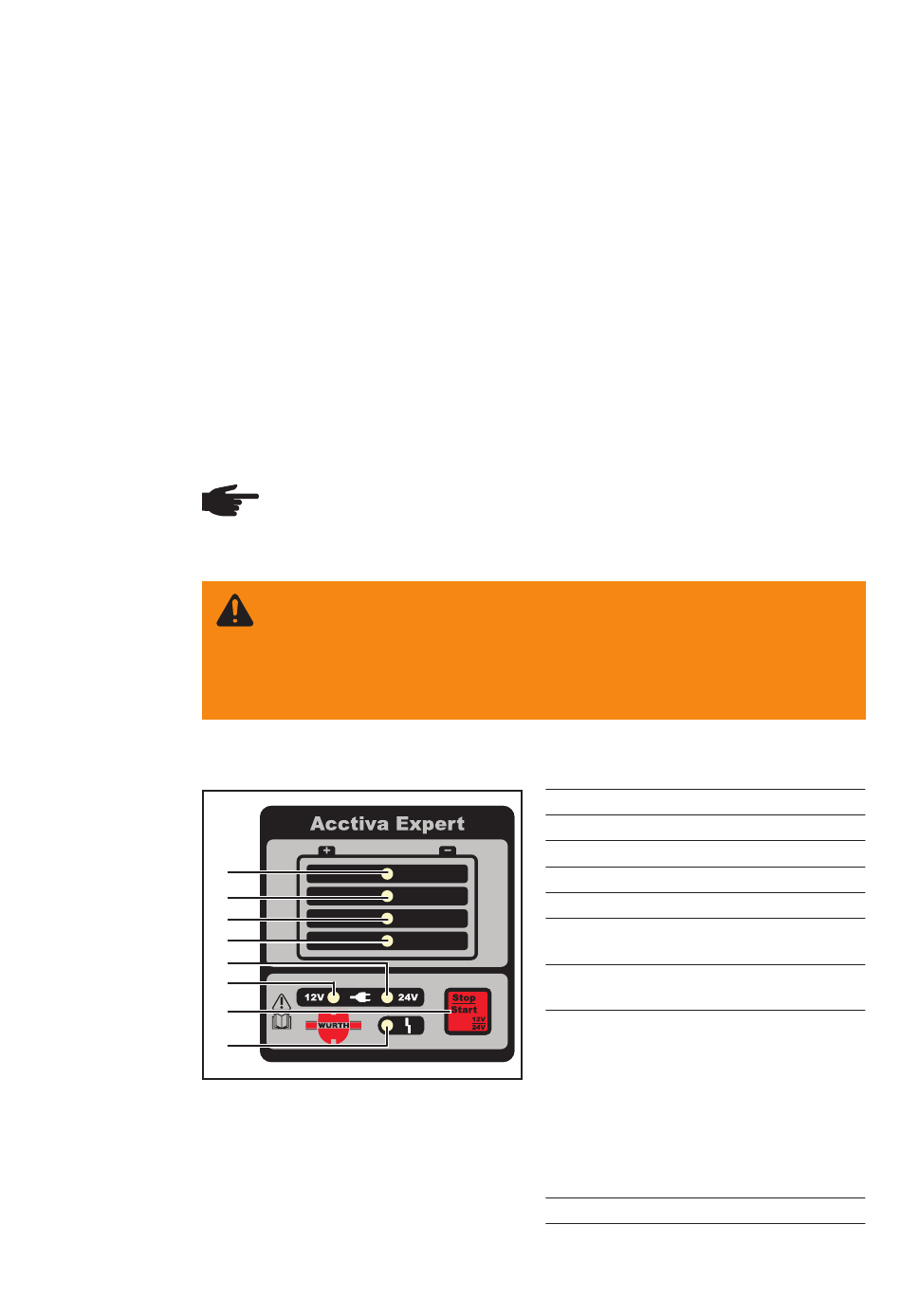

Control panel

Control panel
Voltage-free and spark-free terminals protect against explosions
Reverse polarity protection prevents the battery or charger from being damaged or
destroyed
Short-circuit protection provides effective protection for the charger. The fuse does
not need to be replaced in the event of a short circuit.
A charging time monitor provides effective protection against overcharging and
destruction of the battery
Thanks to the high level of protection, there is a lower rate of contamination in
adverse conditions. This adds to the charger's reliability.
Overtemperature protection through derating (charging current reduced if the
temperature rises above the permitted level)
NOTE! As a result of firmware updates, you may find that there are functions
available on your charger that are not described in these operating instructions
or vice versa. Certain illustrations may also differ slightly from the actual cont-
rols on your unit. However, the functionality of these controls is identical.
WARNING! Operating the equipment incorrectly can cause serious injury and
damage. You should not use the functions described until you have thoroughly
read and understood the following documents:
- These operating instructions
- All operating instructions for the system components, especially the
„Safety rules"
(4)
(3)
(2)
(1)
(5)
(6)
(7)
(8)
No. Function
(1) Charge level indicator 25%
(2) Charge level indicator 50%
(3) Charge level indicator 75%
(4) Charge level indicator100%
(5) Ready indicator,
charging voltage 24 V
(6) Ready indicator,
charging voltage 12 V
(7) Stop/start, voltage selection and
setup button
- For interrupting and restarting char-
ging
- For selecting charging voltage 12 V /
24 V
- For accessing the setup menu and
selecting the characteristic type
(press and hold for 10 s)
(8) Error indicator
