BATTERY BACK UP:

Controller has an onboard battery used to retain memory in case of short term or long term
power loss. If battery was to need replacing, use only CR2032.
15.

SOFTWARE UPDATE:

In the event it becomes necessary to update the microprocessor software, it can be updated via
the data port. Remove power from the controller. Access the data port located on the back of the
front door near the top. Insert flash drive containing software update. Return power to controller.
Update should start automatically. Screen visible should show V1.5 with an increasing numeric
value beside it indicating the status of the update. Once the update completes the display will
indicate to remove the flash drive. In the event the automatic update does not start on power up,
remove power and start process once again.
Touchscreen display can also be updated. This information contains all of the on-screen
information and touch panel configuration. Remove power from the controller. Open front door
and locate back of touchscreen. Use the SD card containing software update. Insert card into
SD slot location on the touchscreen PCB on the left hand side. Insert SD card until it clicks into
place. Restore power to controller. Automatic update will occur. When complete, screen will
switch to HOG SLAT LOGO screen. In most cases controller will resume operation from this
screen, If not touch screen twice which will advance screen to the HOME screen. UPDATE is
complete. Remove power and remove SD card by pushing in the card to release it.
16.

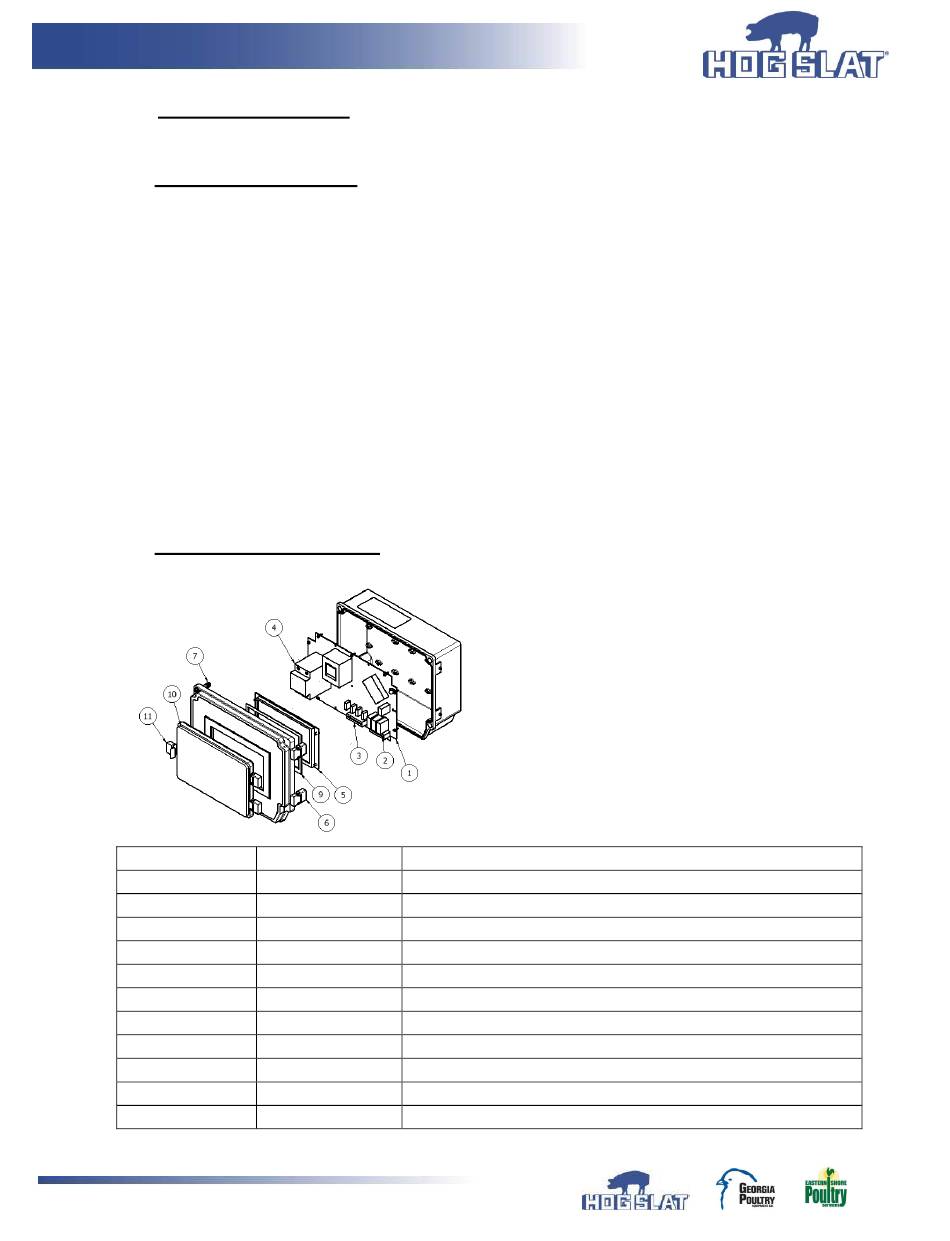

REPLACEMENT PARTS:

ITEM NUMBER
1
2
3
4
5
6
7
8
9
10
11
Hog Slat Inc. Newton Grove, NC USA
PART NUMBER DESCRIPTION
HSCD200-2 CIRCUIT BOARD, MAIN PRE-PROGRAMMED
EL1223 PLUGGABLE, THREE POSITION CONNECTOR 5.08mm
EL1224 PLUGGABLE, TWO POSITION CONNECTOR 5.08mm
EL1225 2 POLE CONTACTOR, 230V COIL
HSCD200-3 7" TOUCH SCREEN, PRE-PROGRAMMED
HSCD200-1-8 HINGE ASSEMBLY
HSCD200-1-6 BOLT, PLASTIC FOR DOOR
HSCD200-5 FLASH DRIVE (NOT SHOWN)
HSCD200-1-7 GASKET, TOUCH SCREEN
HSCD200-1-10 CLEAR COVER, TOUCH SCREEN
HSCD200-1-11 LATCH, CLEAR COVER
March 2019 REV A5
