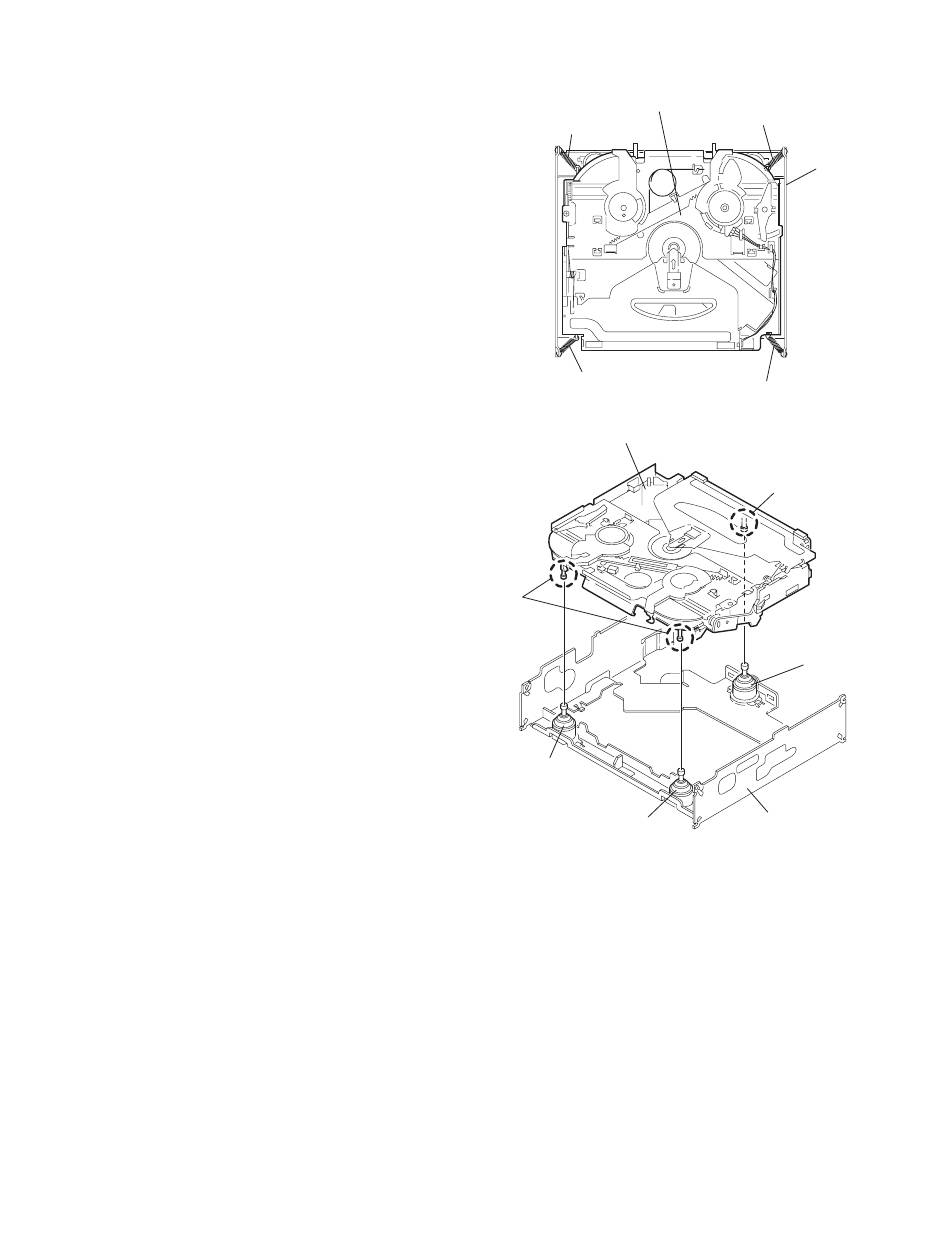

3.2.4 Removing the chassis unit
(See Figs.8 and 9)
• Prior to performing the following procedure, remove the top
cover and connector board.
(1) Remove the two suspension springs (L) and (R) attaching
the chassis unit to the frame.
CAUTION:
• The shape of the suspension spring (L) and (R) are dif-
ferent. Handle them with care.
• When reassembling, make sure that the three shafts
on the underside of the chassis unit are inserted to the
dampers certainly.
1-12 (No.MA111)
Chassis unit
Suspension spring (R)
Suspension spring (R)
Fig.8
Chassis unit
Shafts
Damper
Damper
Fig.9
Suspension spring (L)
Frame
Suspension spring (L)
Shaft
Damper
Frame
