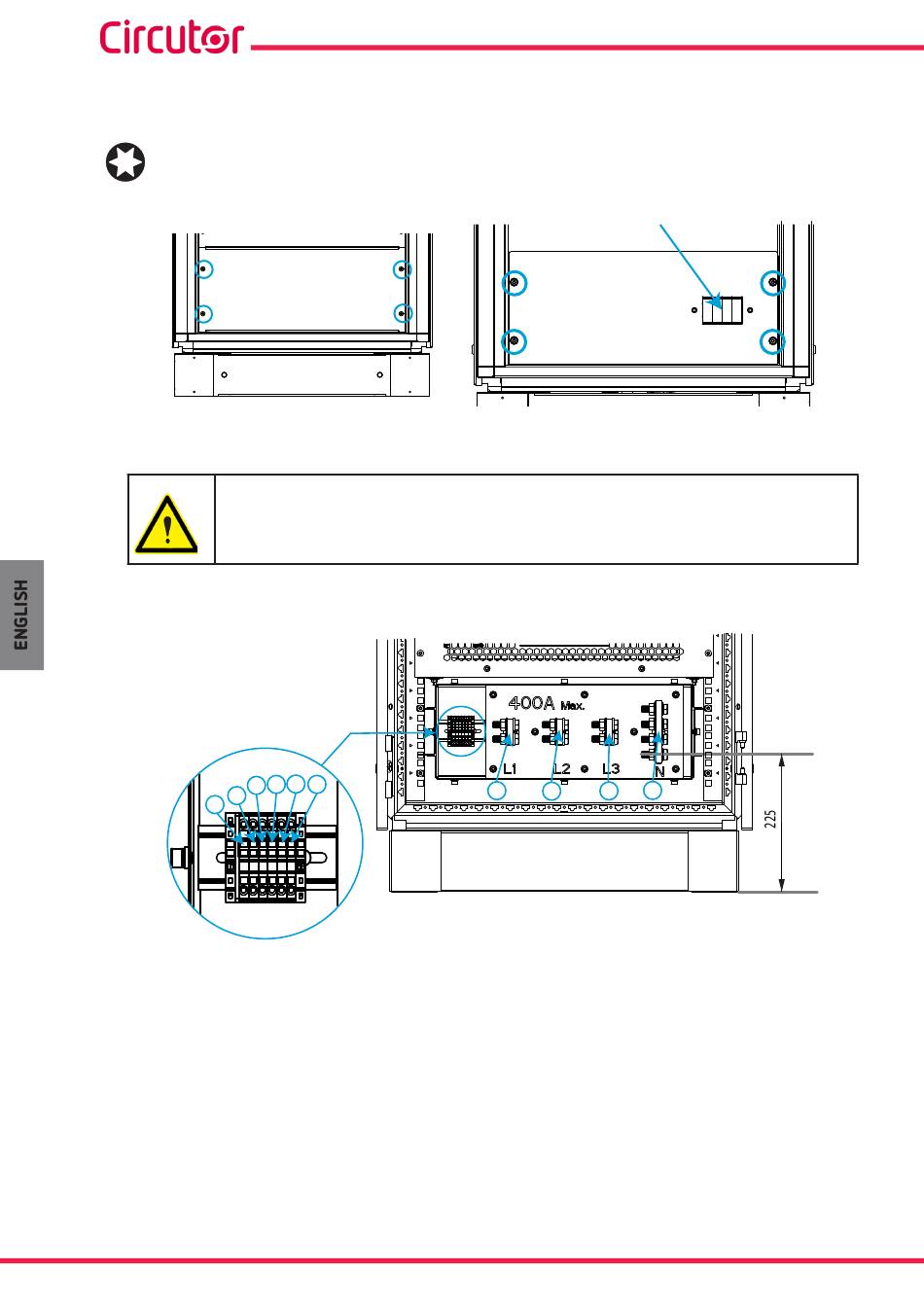

To access the connections for the current input and mains, the screws of the lower front cover have to
be loosened,
30
AFQm-3WF-xxxC-480 and AFQm-4WF-xxxC-400
Once the front cover is open, the device's terminals can be accessed,
102
.
Figure 6
The green lights on the surge voltage protection indicate that they are working cor-
rectly. Immediately replace those whose indicator is red, see
OF SURGE PROTECTIVE DEVICES:70A, 140A, 210A AND 280A AFQm IP54"
5
4
6
3
2
1
Protectores de sobretensión
Surge voltage protection
AFQm-3WF-xxxC-690 and AFQm-4WF-xxxC-550
Figure 6: Screws.
7
8
Figure 7: AFQm IP54 terminals.
"10.2.- MAINTENANCE
and
Figure 7
Figure 8
10
9
Instruction Manual
AFQm IP54
:
