AFQm IP54
Parallel devices have to be connected at the "master" device, which is the one placed at the top of the
cabinet.
1
R BUS
ETHERNET
Instruction Manual

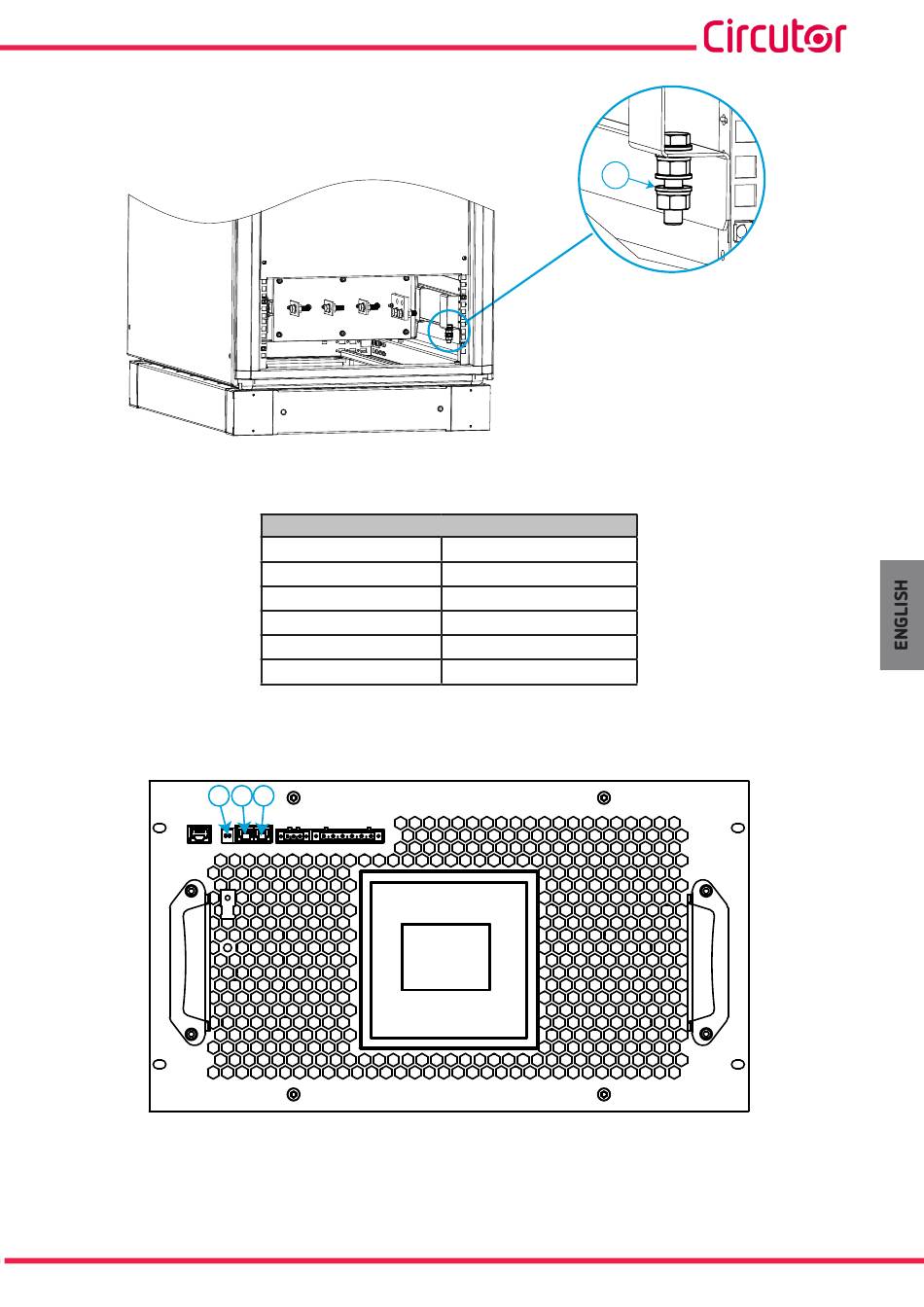

Figure 8: AFQm IP54 earth terminal.
Table 6: List of terminals.
Device terminals
1: S1, Current input L1
2: S2, Current inpu
L1
t
3: S1, Current input L2
4: S2, Current input L2
5: S1, Current input L3
11: Earth connection
2 3
L1 L2 L3
LINK
RS485
IN OUT
S1 S2
A B S S1 S2 S1 S2
Figure 9: Terminals of parallel connection (Inner module).
11
6: S2, Current input L3
7: L1, Mains connection L1
8: L2, Mains connection L2
9: L3, Mains connection L3
10: N, Mains connection N
103
