26

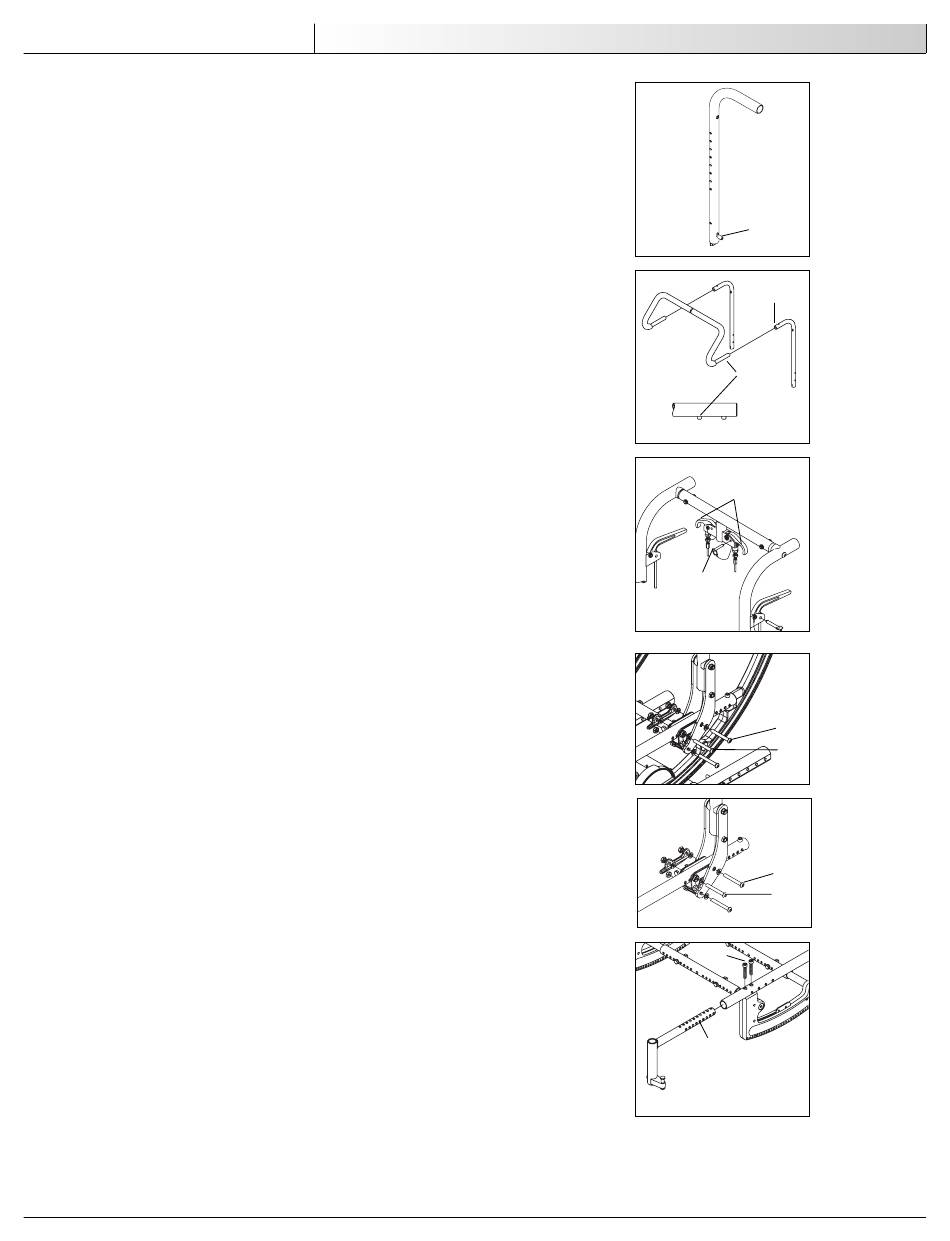

4. Flip-Down Back Function
a. To fold the back down, pull-up the back release pins (A) and push the backrest forward.
b. To lock it back in position, lift the backrest firmly until it locks in its original position.
N. STROLLER HANDLE EXTENSION (OPTIONAL)
Installation
a. Press button (B) on the stroller handle so that release pins are drawn inside the
tube.
b. Insert the tube into the back tube receiver (C) until the release pin protrudes
through the receiver mounting hole.
O. RECLINING BACK
The dual trigger reclining mechanism is installed by Sunrise.
1. To Recline or Raise Backrest
a. Depress both triggers (D) at the same time. Releasing the triggers positively locks
the backrest in place within its 45° range.
b. To lock out the adjustment system, insert the locking pin (E) into the trigger holder.
Always lock the dual trigger reclining mechanism securely in place after positioning
the backrest.
P. FRAME DEPTH
1. Back adjustment
a. Loosen and remove the front bolt (F) located in front of back mounting plate.
b. Loosen and remove the rear bolt (H) from the back mounting plate.
c. Repeat both steps on the other side.
d. Slide the backrest along the seat rail to the desired position.
e. Replace and tighten the front bolt (F) and the rear bolt (H).
f. Repeat on the other side.
IMPORTANT NOTE– The adjustment on each side of the chair should be exactly equal.
2. Hanger Receiver Adjustment
a. Loosen and remove the socket head screws (A) from the seat rail.
b. Slide the hanger receiver (B) in the seat rail to the desired position.
c. Replace and tighten the socket head screws.
d. Repeat on the other side.
IMPORTANT NOTE– These adjustments may also require re-positioning the carriage over the base frame,
refer to matrix in the ordering guide for recommended location.
NOTE–
Depending on the original position of the hanger receiver and the amount of adjustment
required, a new set of seat tubes may be required. Holes in the hanger receiver should not be
visible past the front of the seat tube.
101510 Rev. A
E n g l i s h
I X . S e t - U p & A d j u s t m e n t
A
C
B
D
E
A
B
H
F
H
F
