8. Using Optional Lenses

Five optional lenses are available for the NP2000/NP1000. See the information described on this page to buy the
appropriate lens for your screen size and throw distance. See page

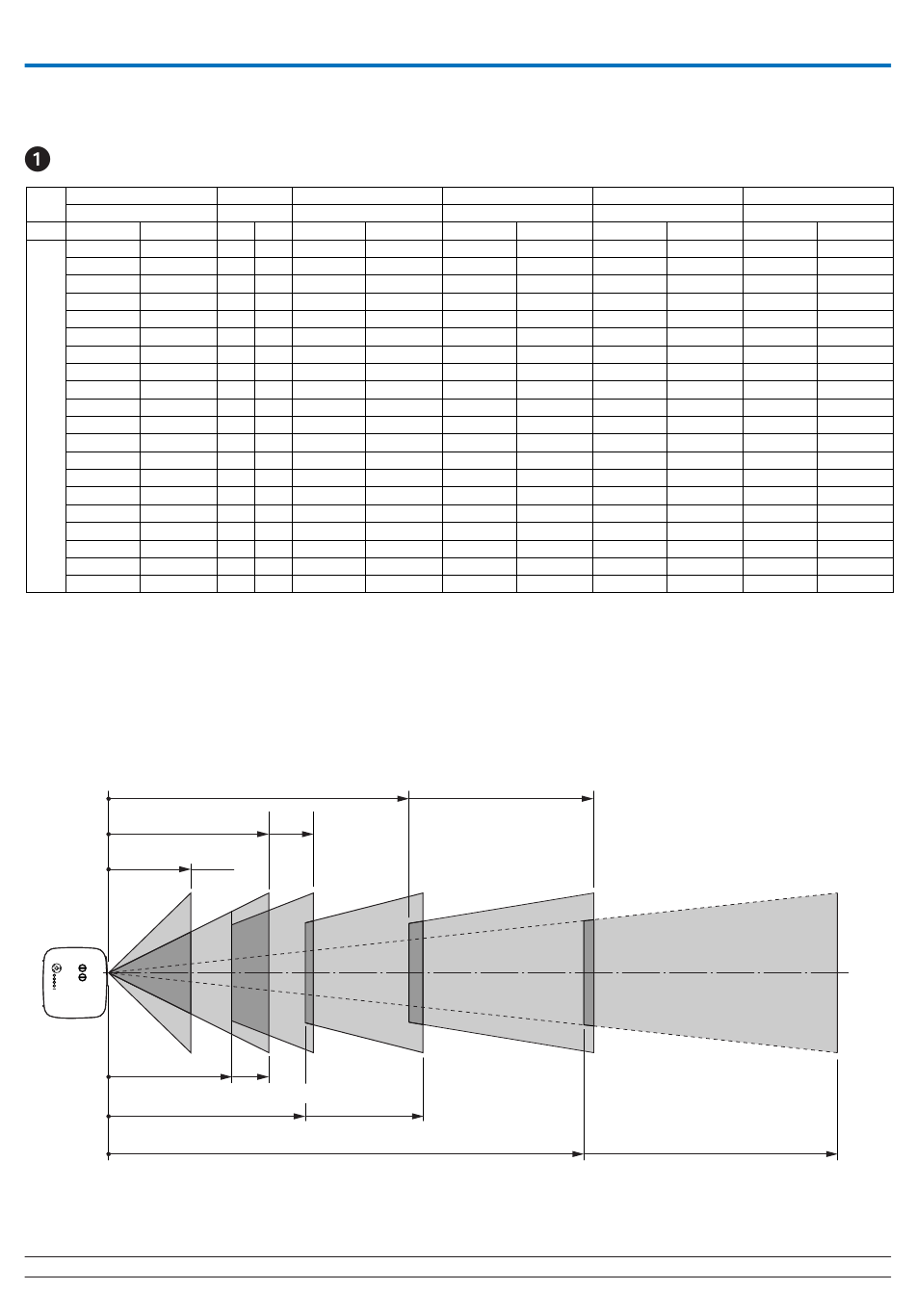

Table of Throw Distances and Screen Sizes for Optional Lenses

Screen STANDARD
Size
1.5 − 2.0
(m) (inches)
30" 0.89 – 1.20 35.1 – 47.3
40" 1.20 – 1.62 47.4 – 63.8
60" 1.83 – 2.45 72.2 – 96.6
67" 2.05 – 2.75 80.8 – 108.2
72" 2.21 – 2.96 87.0 – 116.4
80" 2.46 – 3.29 96.9 – 129.5
84" 2.59 – 3.46 101.8 – 136.1
90" 2.78 – 3.71 109.3 – 146.0
121.6 – 162.4
100" 3.09 – 4.13
120" 3.72 – 4.96 146.3 – 195.3
150" 4.66 – 6.21 183.4 – 244.6
180" 5.60 – 7.47 220.5 – 294.0
200" 6.23 – 8.30 245.3 – 326.9
210" 6.54 – 8.72 257.6 – 343.3
240" 7.49 – 9.97 294.7 – 392.6
250" 7.80 – 10.39 307.1 – 409.1
270" 8.43 – 11.23 331.8 – 442.0
300" 9.37 – 12.48 368.9 – 491.3
400" 12.51 – 16.66 492.5 – 655.8
500" 15.65 – 20.83 616.2 – 820.2
For screen sizes between 30" and 500" not indicated on the above table, use formulas below.
Throw distance for Standard lens (m/inch)=H × 1.5 through H × 2.0 Distance from 0.89m to 20.83m/35.1" to 820.2"
Throw distance for NP01FL(m/inch)=H × 0.8 Distance from 0.64m to 2.5m/25.3" to 98.6"
Throw distance for NP02ZL(m/inch)=H × 1.2 through H × 1.5 Distance from 0.7m to 16.1m/27.5" to 634"
Throw distance for NP03ZL(m/inch)=H × 1.9 through H × 3.1 Distance from 1.56m to 32.15m/61.4" to 1265.6"
Throw distance for NP04ZL(m/inch)=H × 3.0 through H × 4.8 Distance from 3.6m to 49.52m/141.7" to 1949.5"
Throw distance for NP05ZL(m/inch)=H × 4.6 through H × 7.0 Distance from 7.65m to 74.36m/301.3" to 2927.5"
"H"= Screen width
STANDARD (H X 1.5) - (H X 2.0)
NP01FL (H X 0.8)
NP02ZL (H X 1.2) - (H X 1.5)
Example: Distance from a 100" screen with the lens NP03ZL
Referring to the diagram on page 124, "H" is 2.0 m/78.7". Therefore, the projection distances of 100 inches are from
2.0 m/78.7" × 1.9 to 2.0 m/78.7" × 3.1 = from 3.8 m/150" to 6.2 m/244".
NOTE: Distances may vary +/-5%
NP01FL NP02ZL
0.8 1.2 − 1.5
(m) (inches) (m) (inches)
0.70 – 0.92 27.5 – 36.4
0.64 25.3 0.95 – 1.25 37.3 – 49.1
0.98 38.6 1.44 – 1.89 56.9 – 74.5
1.10 43.3 1.62 – 2.12 63.7 – 83.4
1.18 46.6 1.74 – 2.28 68.6 – 89.8
1.32 51.9 1.94 – 2.54 76.4 – 99.9
1.39 54.6 2.04 – 2.67 80.3 – 105.0
1.49 58.6 2.19 – 2.86 86.2 – 112.6
1.66 65.3
2.44 – 3.18 96.0 – 125.4
2.00 78.6 2.93 – 3.83 115.5 – 150.8
2.50 98.6 3.68 – 4.80 144.9 – 188.9
4.42 – 5.77 174.2 – 227.1
4.92 – 6.41 193.8 – 252.5
5.17 – 6.74 203.5 – 265.2
5.91 – 7.71 232.9 – 303.4
6.16 – 8.03 242.7 – 316.1
6.66 – 8.67 262.2 – 341.5
7.41 – 9.64 291.5 – 379.7
9.89 – 12.87 389.3 – 506.8
12.37 – 16.10 487.1 – 634.0
NP03ZL (H X 1.9) - (H X 3.1)
115 for installing the lens.
NP03ZL
1.9 − 3.1
(m) (inches)
1.56 – 2.51 61.4 – 98.6
2.37 – 3.79 93.5 – 149.4
2.66 – 4.25 104.7 – 167.1
2.86 – 4.57 112.8 – 179.8
3.19 – 5.08 125.6 – 200.1
3.35 – 5.34 132.0 – 210.3
3.60 – 5.73 141.7 – 225.5
4.01 – 6.37 157.7 – 250.8
4.82 – 7.66 189.8 – 301.6
6.05 – 9.59 238.0 – 377.7
7.27 – 11.53 286.2 – 453.8
8.08 – 12.81 318.3 – 504.5
8.49 – 13.46 334.3 – 529.9
9.72 – 15.39 382.5 – 606.0
10.12 – 16.04 398.6 – 631.4
10.94 – 17.33 430.7 – 682.1
12.16 – 19.26 478.8 – 758.2
16.24 – 25.70 639.4 –1011.9
20.32 – 32.15 799.9 –1265.6
NP04ZL (H X 3.0) - (H X 4.8)
113
NP04ZL
3.0 − 4.8
(m) (inches)
3.60 – 5.83 141.7 – 229.7
4.03 – 6.53 158.8 – 257.0
4.34 – 7.03 171.1 – 276.6
4.84 – 7.82 190.6 – 307.9 7.65 – 11.73
5.09 – 8.22 200.4 – 323.5 8.05 – 12.33
5.46 – 8.81 215.0 – 346.9 8.63 – 13.23
6.08 – 9.81 239.5 – 386.0 9.62 – 14.72
7.32 – 11.79 288.3 – 464.2 11.58 – 17.70
9.18 – 14.77 361.6 – 581.5 14.52 – 22.17
11.05 – 17.75 434.9 – 698.7 17.46 – 26.65
12.29 – 19.73 483.8 – 776.9 19.43 – 29.63
12.91 – 20.73 508.2 – 816.0 20.41 – 31.12
14.77 – 23.70 581.5 – 933.3 23.35 – 35.59
15.39 – 24.70 605.9 – 972.4 24.33 – 37.08
16.63 – 26.68 654.8 –1050.5 26.29 – 40.06
18.49 – 29.66 728.1 –1167.8 29.23 – 44.54
24.70 – 39.59 972.4 –1558.7 39.04 – 59.45
30.90 – 49.52 1216.7–1949.5 48.85 – 74.36
NP05ZL (H X 4.6) - (H X 7.0)
NP05ZL
4.6 − 7.0
(m) (inches)
301.3 – 462.0
316.8 – 485.5
340.0 – 520.7
378.6 – 579.4
455.8 – 696.8
571.7 – 872.9
687.5 –1049.0
764.8 –1166.4
803.4 –1225.1
919.3 –1401.2
957.9 –1459.9
1035.1–1577.3
1151.0–1753.5
1537.2–2340.5
1923.4–2927.5
