3.4 - INSTALLING THE MAGNETIC LIMIT SWITCHES

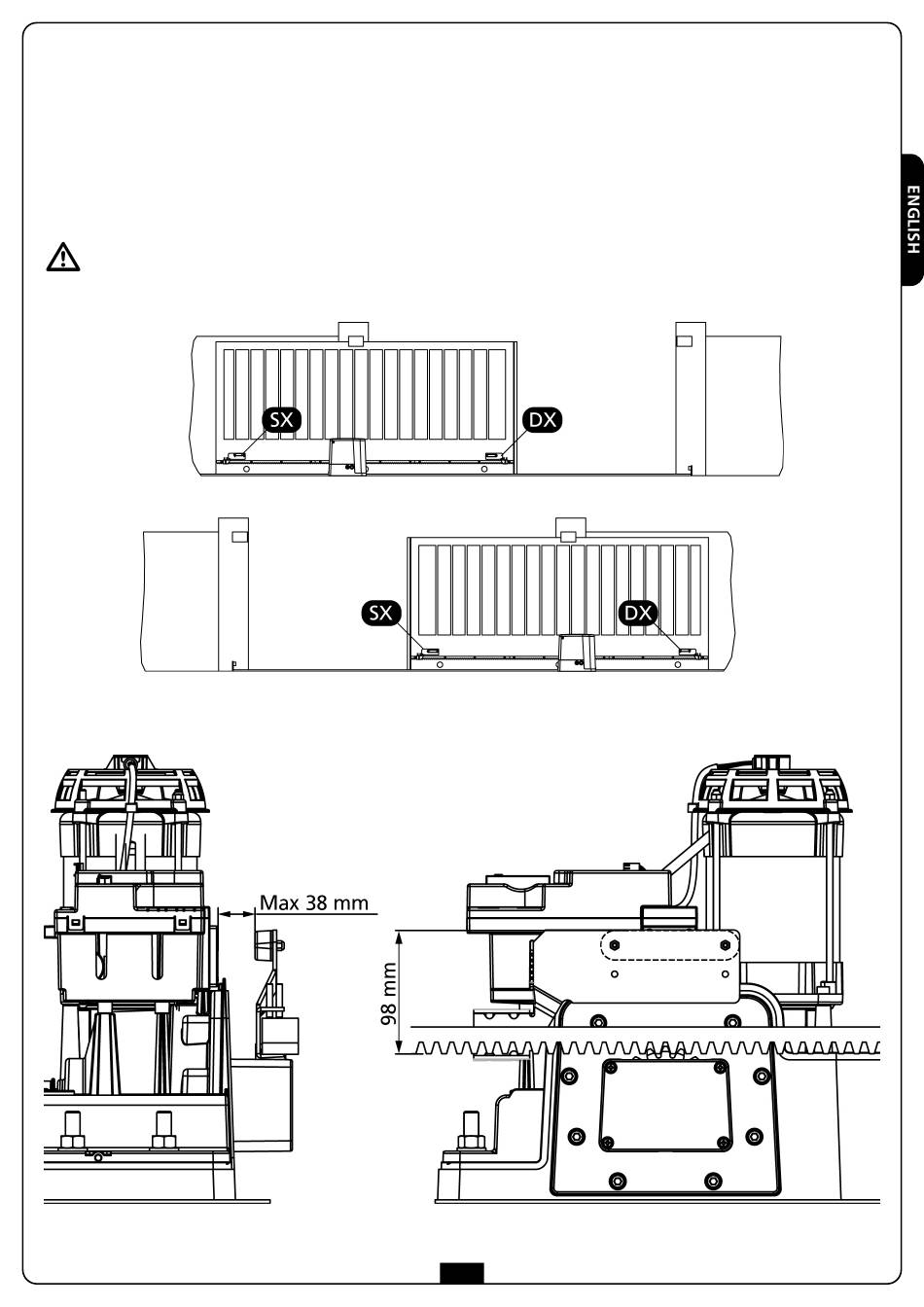

Install the supplied magnet holder on the rack in a way that, in the opening and closing limit positions, the magnet be
positioned next to the magnetic sensor behind the hood (as near as possible to the hood).
The supplied magnets have been colored differently in order to be distinguished from each other:
BLUE MAGNET = RIGHT LIMIT SWITCH (DX)
RED MAGNET = LEFT LIMIT SWITCH (SX)
The type of limit switch (RIGHT/LEFT) depends on the position of the limit switch towards the motor, independently from the opening
sense.
WARNING: Once checked the proper working of the system, we suggest to weld the end-of-stroke brackets on the rack
