NOTE: This step is applicable after the neccessary wiring is completed.

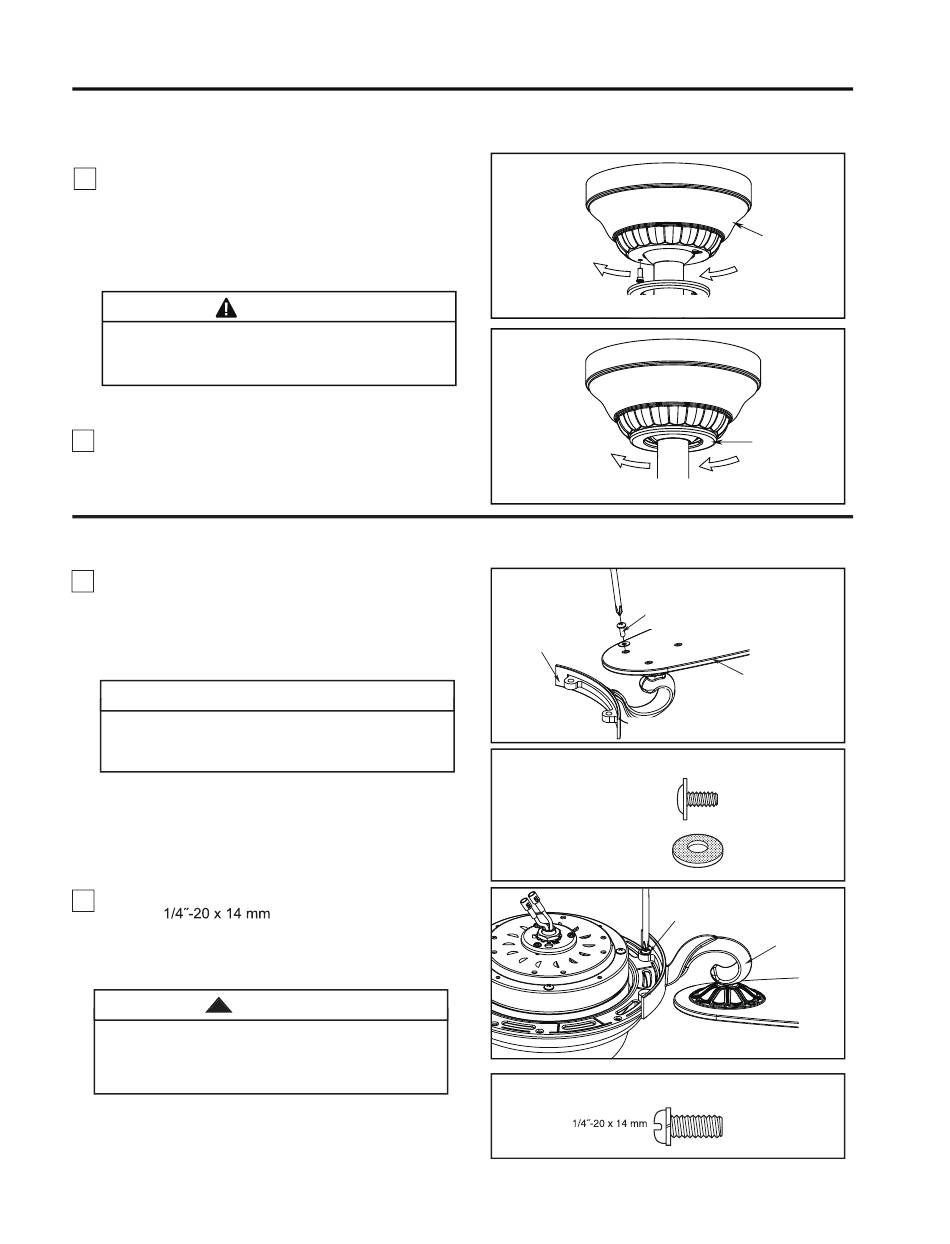

1. Remove one of the two shoulder screws in the

hanger bracket. Loosen the second shoulder screw

without fully removing it. Assemble canopy by

rotating key slot in canopy over shoulder screw in

hanger bracket. Tighten shoulder screw. Fully

assemble and tighten second shoulder screw that

was previously removed. (Figure 19)

WARNING

To avoid possible fire or shock, make sure that the

electrical wires are completely inside the canopy

housing and not pinched between the housing and the

ceiling.

Securely attach and tighten the canopy screw cover

over the shoulder screws in the hanger bracket utilizing

the keyslot twist-lock feature. (Figrue 20)

How to Assemble the Blades and Light Kit Assembly

Position the blade over the blade holder with

threaded posts showing. Make sure the bottom edge

of the blade is fully seated against the blade arm.

With a Phillips screwdriver, tighten #8-32 x 8 mm

washer head screws and fiber washers to secure the

blade to the blade holder. (Figure 21)

CAUTION

Do not connect fan blades until the fan is completely

installed. Installing the fan with blades assembled

may result in damage to the fan blades.

2. Secure the blade holders to the motor assembly

using the

located on the side of the motor assembly. (Figure 22)

NOTE:

Periodically check blade holder hardware and

resecure if necessary.

WARNING

To reduce the risk of personal injury, do not bend the

blade holders when installing, balancing the blades

or cleaning the fan. Do not insert foreign objects in

between the rotating blades.
