CHIMNEY COMPONENTS

NICE - MIRIAM - CRISTAL - LEONORA - PRETTY - DIANA - KRISS - MARY

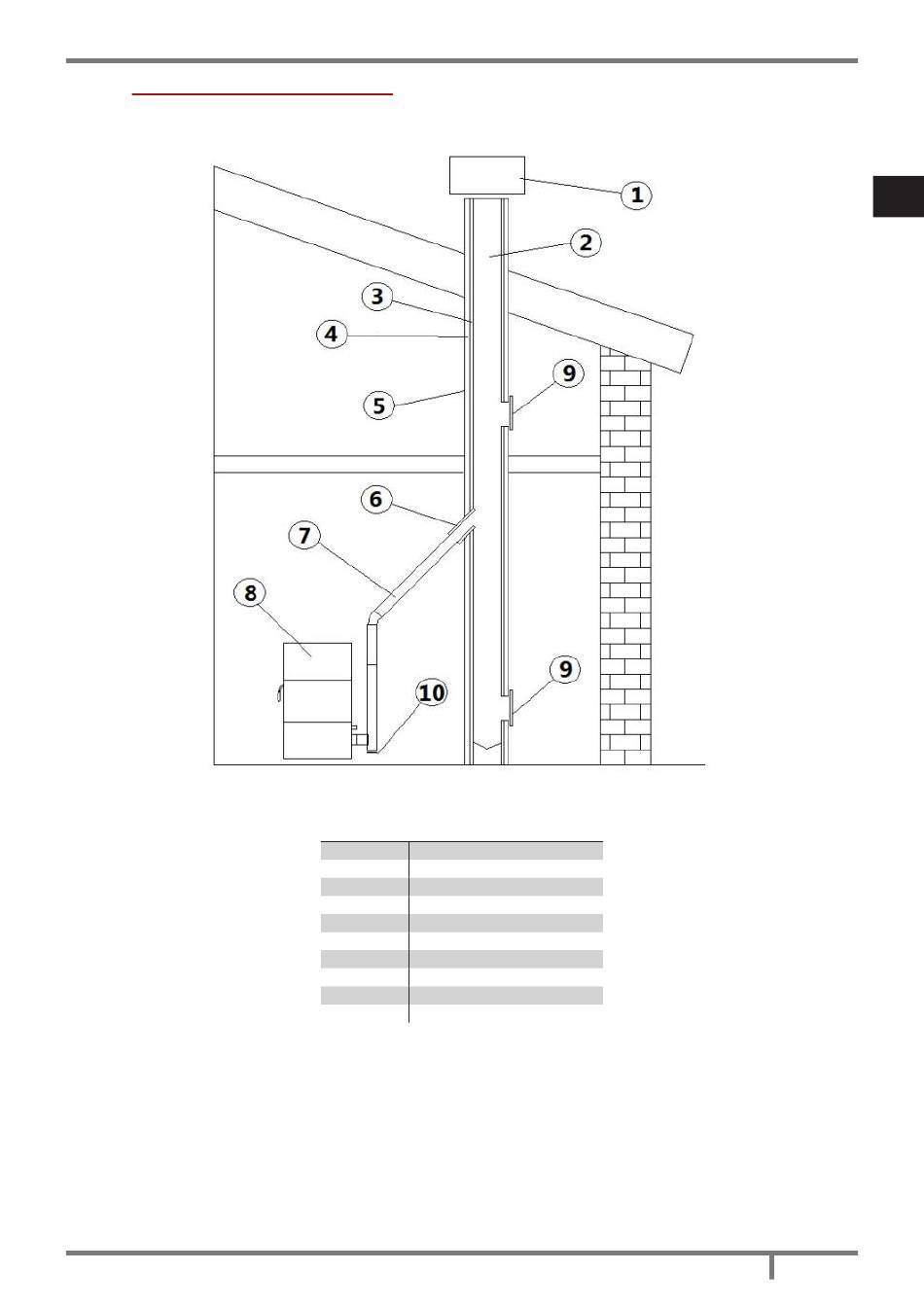

Fig. 6 - Chimney components
LEGEND Fig. 6 page 55
1 Chimney pot
2
Fume outlet
3
Chimney flue
4 Termal insulation
5
External wall
6
Chimney union
7
Fume pipe
8
Heat generator
9 Inspection door
10
T-union with inspection plug
