AD2817C Operation Manual
Perform the following steps to set the edge mode:
a) At system setup page, select "TRIGER" through
4-35.
b) Press ▲ or ▼ key to select trigger edge mode.
c) Press ENTER key or ESC key to exit.
7) HDL
Perform the following steps set signal hold:
a) At system setup page, select "HDL" through
4-36.
b) Press ▲ or ▼ key to select HOLD or CLEAR.
c) Press ENTER key or ESC key to exit.
Figure 4-36 HANDLER interface's signal hold
8) ALARM
AD2817C provides alarm function for sorting result.
OFF:
alarm off;
NOGO:
alarm at fail (no good);
AUX:
alarm at auxiliary bin;
PASS:
alarm at any pass bin
Perform the following steps to set alarm:
a) At system setup page, select "ALARM" through
4-37.
b) Press ▲ or ▼ key to select alarm mode.
c) Press ENTER key or ESC key to exit.
9) SOUND

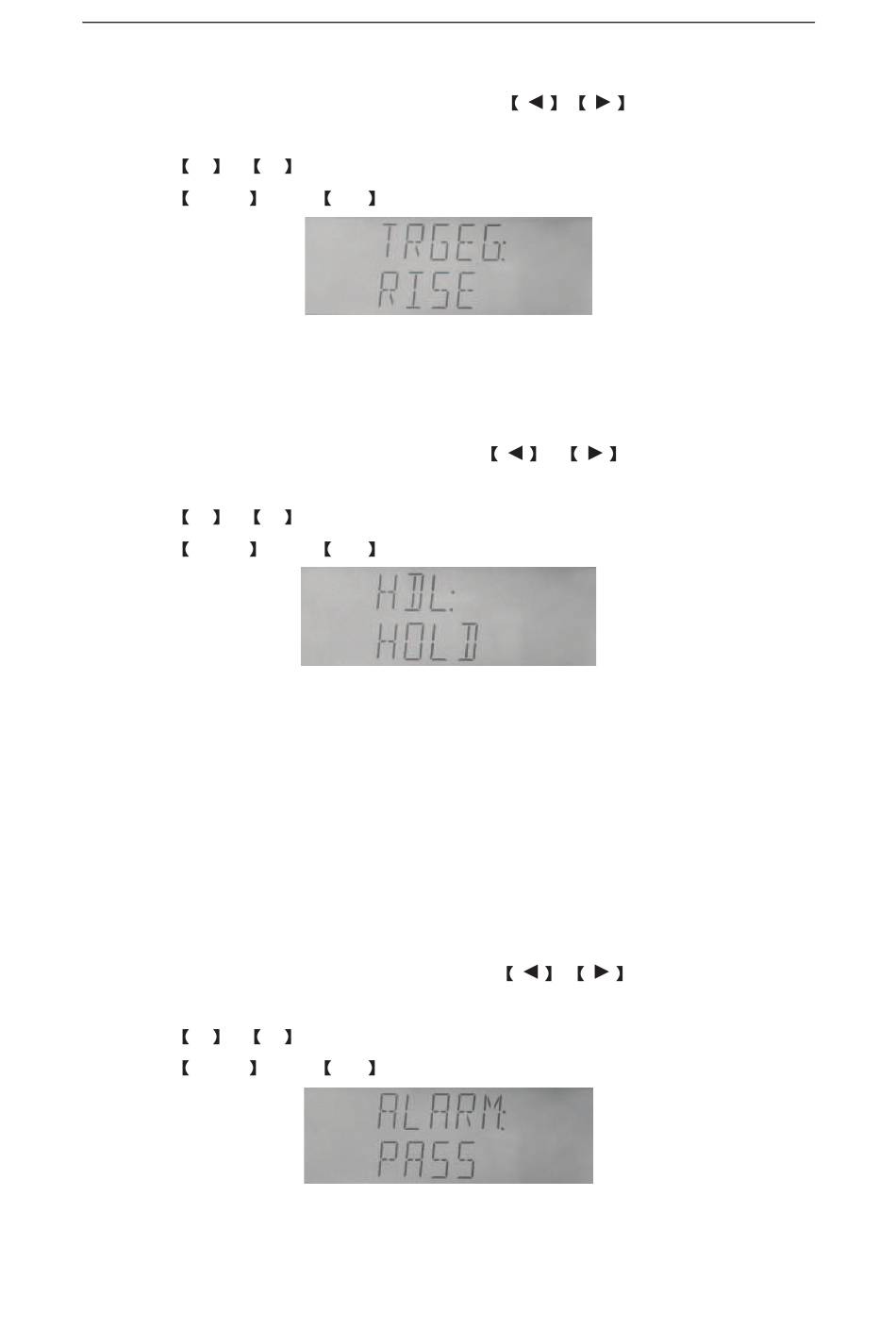

Figure 4-35 Trigger edge
Figure 4-37 Comparator's alarm setup
38
or key, as shown in Figure
or key, as shown in Figure
or key, as shown in Figure
