I/2
Go to the next menu page
The ALT Trigger menu (Type edge)(Page 2/2)

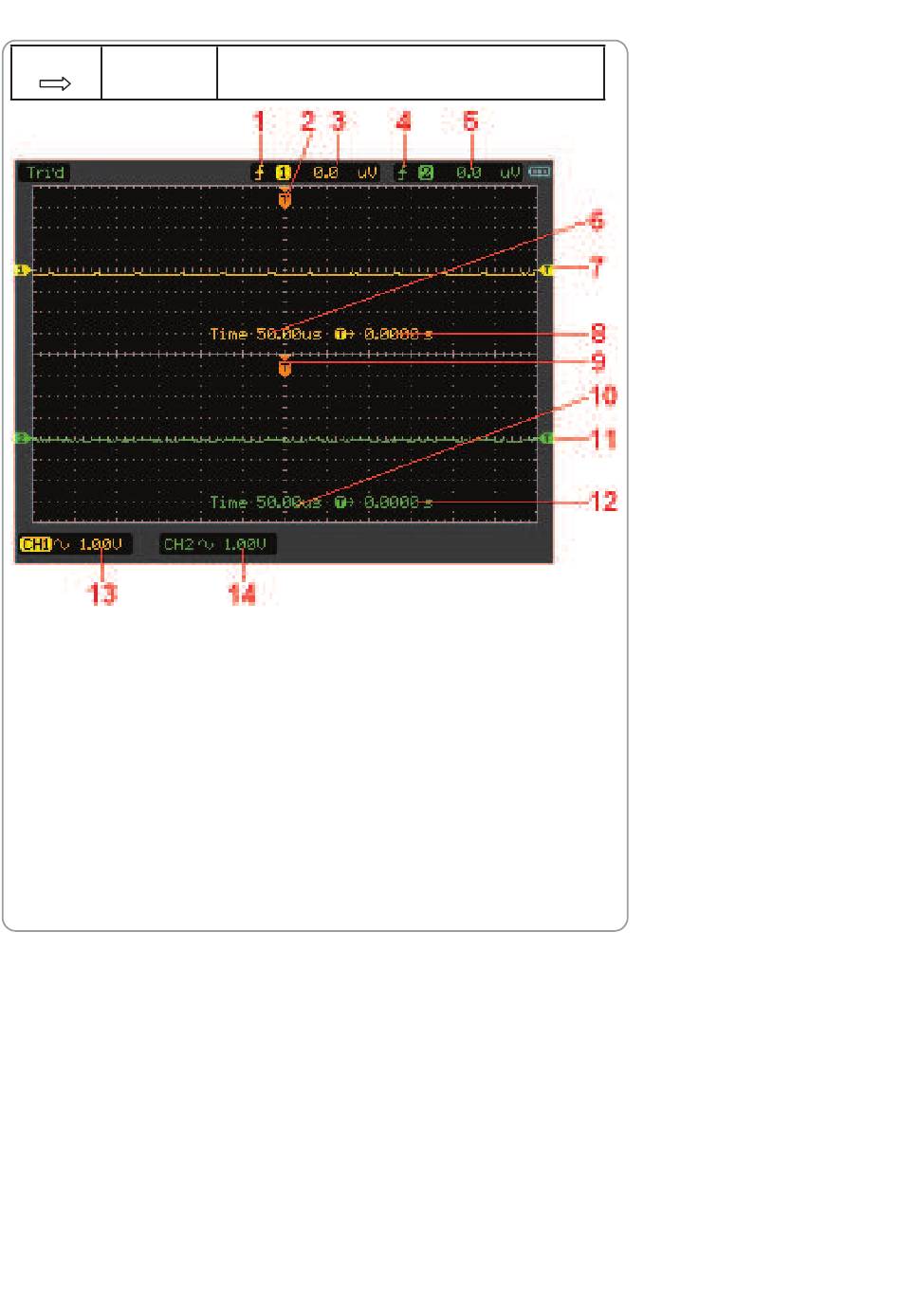

Figure 2-29 ALT Mode Screen
Description:
I. The Slope type of CHI Trigger.
2. The horizontal trigger position of CHI Trigger.
3. The trigger level value of CHI.
4. The trigger position of CH2.
5. The trigger level value of CH2.
6. The time base value of CHI.
7. The trigger level of CHI.
8. The trigger level value of CHI.
9. The horizontal trigger position of CH2.
I0. The time base value of CH2.
II. The trigger level of CH2.
I2. The trigger position value of CH2.
