Example 3: The FFT Cursor Measurements
FFT measurement includes: Amplitude measurement (Vrms or dBVrms) and the
Frequency measurement (Hz).
Do these steps as followings:
1. Press the key CURSOR to show Cursor menu.
2.Select Mode->Manual to enter the Manual Cursor Mode window.
3. Select Type->XIY, select the Cursor Type to X or Y.
3. Select Source->MATH(FFT operation) in the Manual Cursor Mode window.
4. Drag the Cursor to the point of interest.
See the FFT Measurement (Cursor Type Y) in figure 3-3.

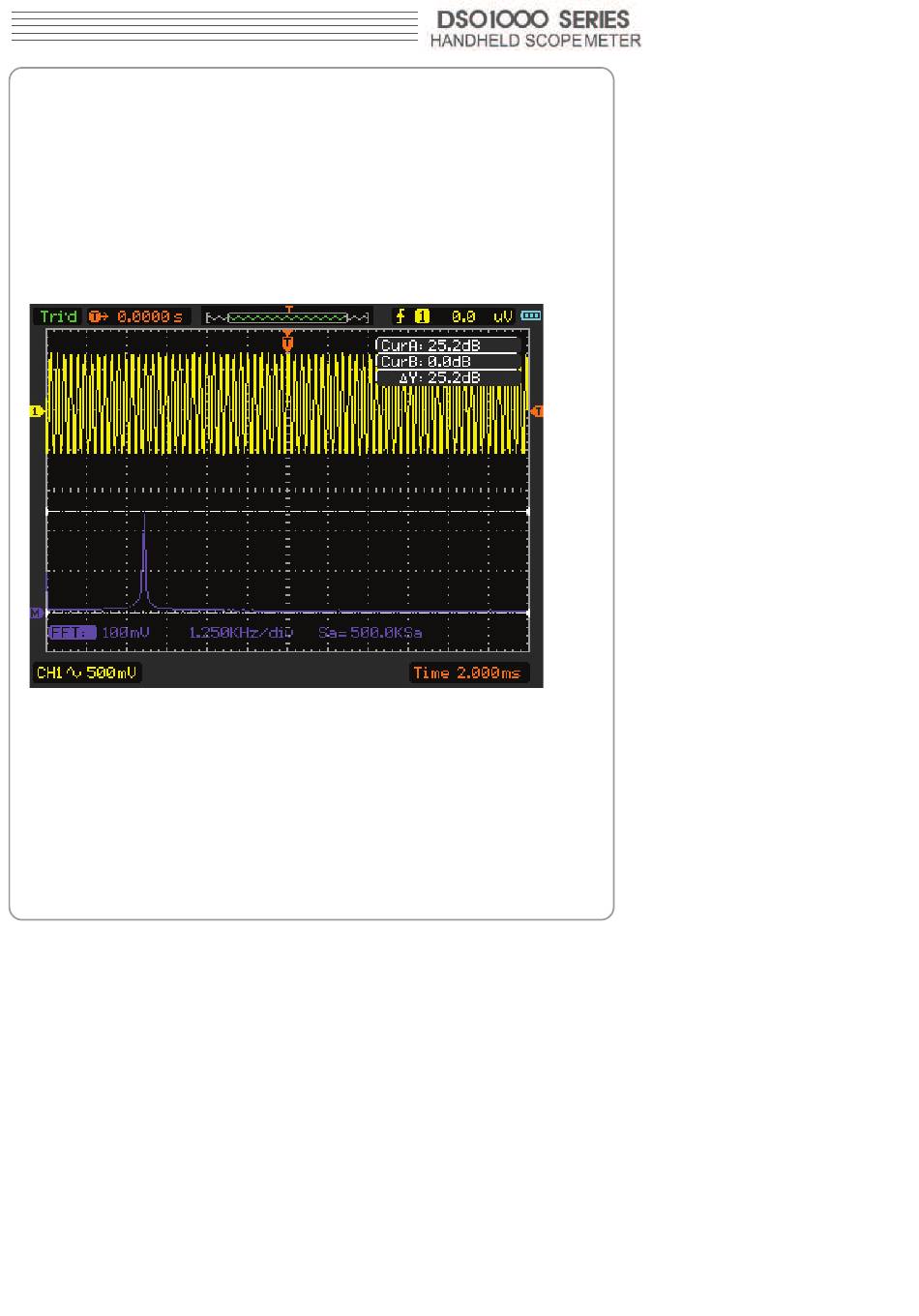

Figure 3-3 FFT Measurement (Cursor Type Y)
See the FFT Measurement (Cursor Type X) in figure 3-4.
