The Time Measurement menu table
Menu
Reciprocal of the period of the first cycle in the waveform
Frequency
Period Time to take for the first signal cycle to complete in the waveform
Rising The time taken from lower threshold to upper threshold
Falling The time taken from upper threshold to lower threshold
+Width Measured of the first positive pulse in the waveform
-Width Measured of the first Negative pulse in the waveform
Positive Duty Cycle = (Positive Pulse Width)/Period x 100%
+Duty
Measured of the first cycle in waveform
Negative Duty Cycle = (Negative Pulse Width)/Period x 100%
-Duty
Measured of the first cycle in waveform
The delay of rising time between channel 1 and channel 2
Delay 1->2
The delay of falling time between channel 1 and channel 2
Delay 1->2
NOTE:
The results of the automatic measurements will be displayed on the bottom of
the screen. Maximum 3 results could be displayed at the same time. When there is no
room, the next new measurement result will make the previous results moving left out of
screen.

Cursor Measurement

The screen displays two parallel cursors. Move the cursors to make custom voltage
or time measurements of the signal. The values are displayed on the boxes below the
menu. Before using cursors, make sure to set the Signal Source as the channel for
measuring.
CURSOR
Press to shows the cursor menu as the following:
The Cursor menu
The Cursors menu table
Menu Setting
ON
Mode
OFF
Description

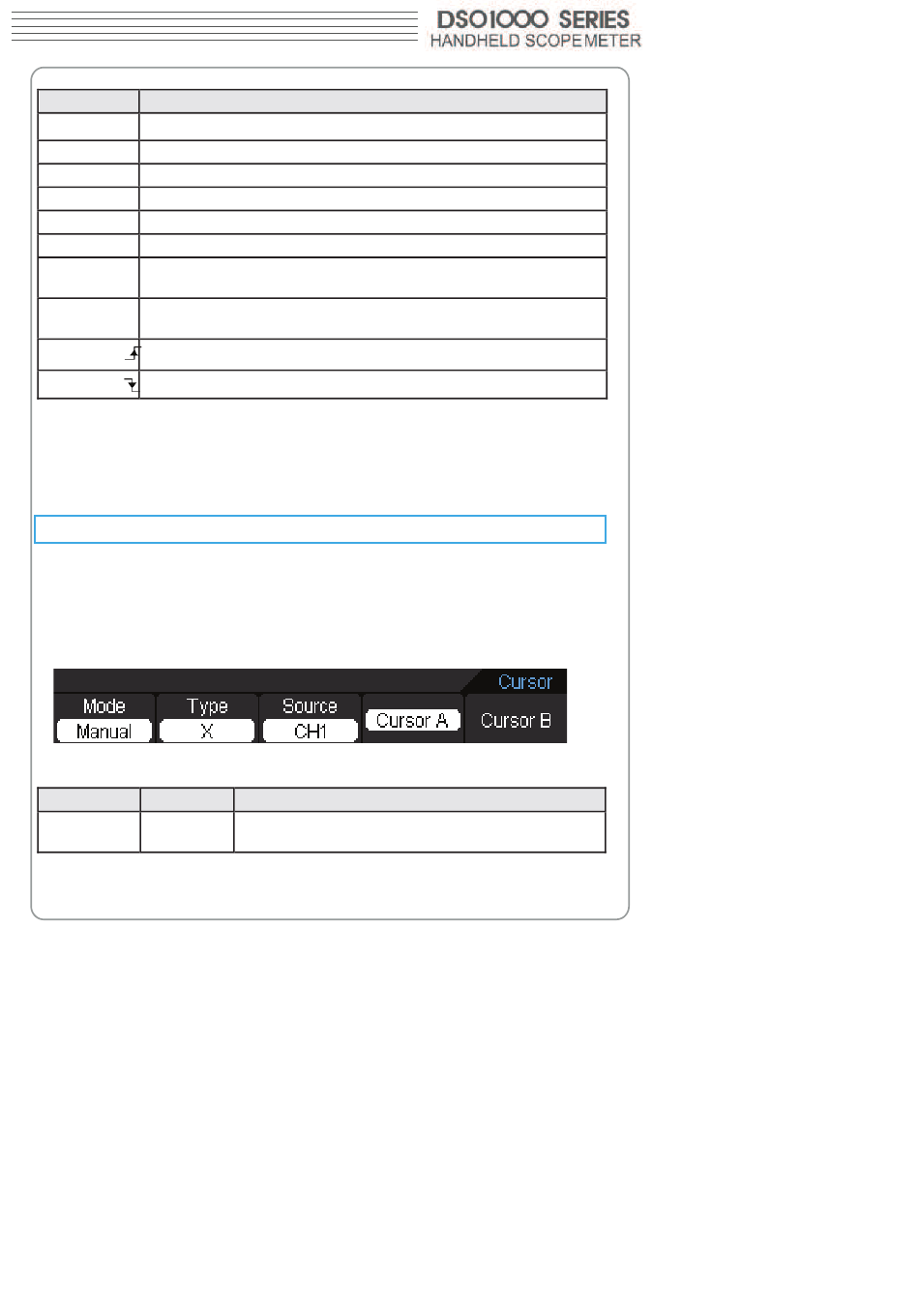

Figure 2-60 The Cursor menu
Description
Turn on/off the cursor measure
