Load
The Mask setting menu (Page 2/2) When the save as external memory
Menu Setting
Save
Load
Waveform Recorder
Waveform recorder records input waveforms from CHI and CH2, with a maximum
record length of 1000 frames.
Utility→Record
Press Setting to go to the following
Waveform recorder
: Record the waveforms with specified interval.
The Recorder menu (Page 1/2)
The Recorder menu (Page 2/2)
The Record menu table (Page 1/2)
Menu Setting
Record
Play back
Mode
Storage
OFF
CH1
Source
CH2
End Frame <1-1000>
Recall mask setting file from internal memory.
Back to the previous menu page
Description
Go to save menu (same as REF save menu).
Recall mask setting file from external memory.

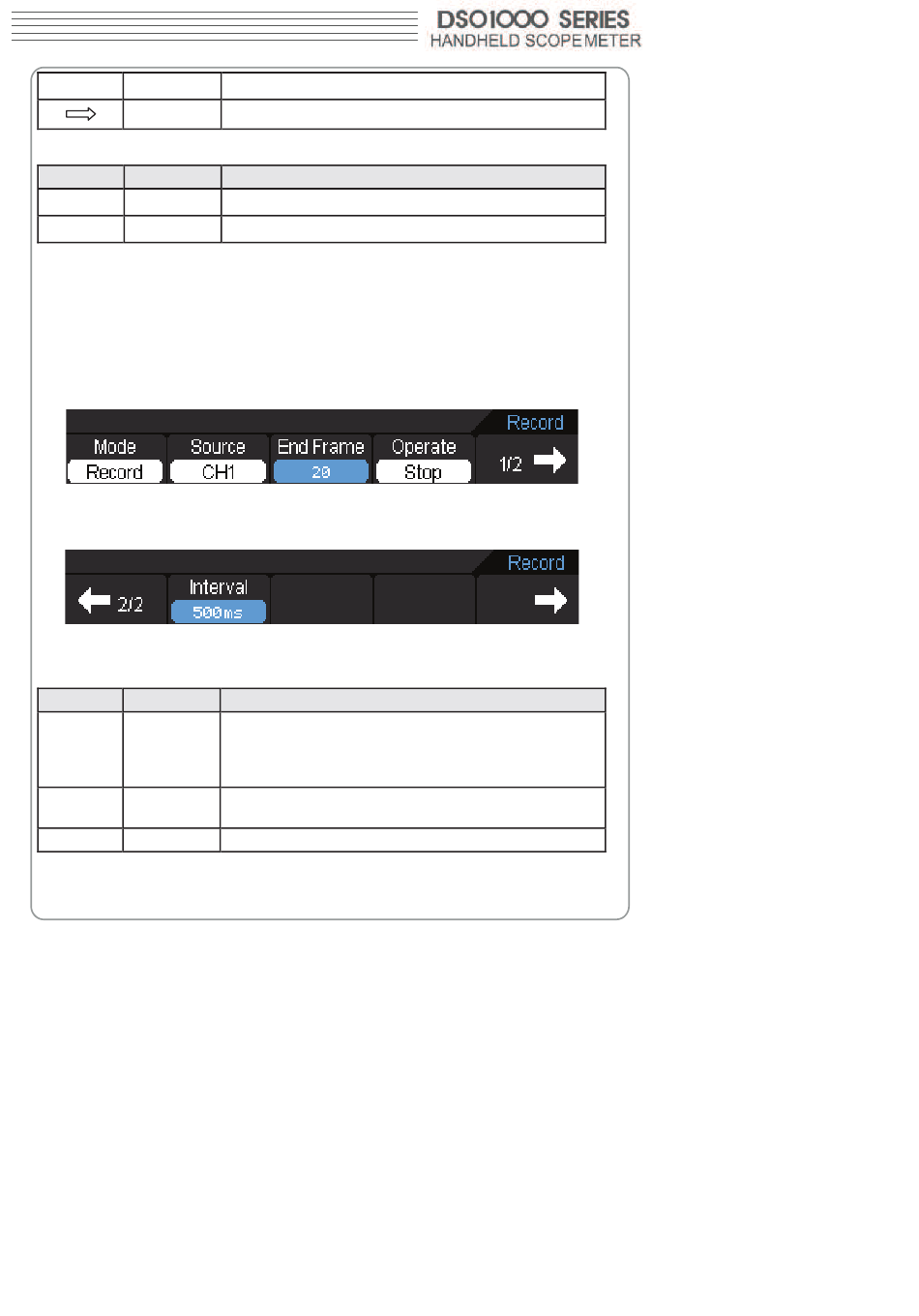

Figure 2-49 The Recorder menu
Figure 2-50 The Recorder menu
Description
Select record mode.
Select play back mode.
Select storage mode.
Turn off all recorder function.
Select record source channel.
Set number of record frames.
