Assembly - Hanging the Fan (continued)
11

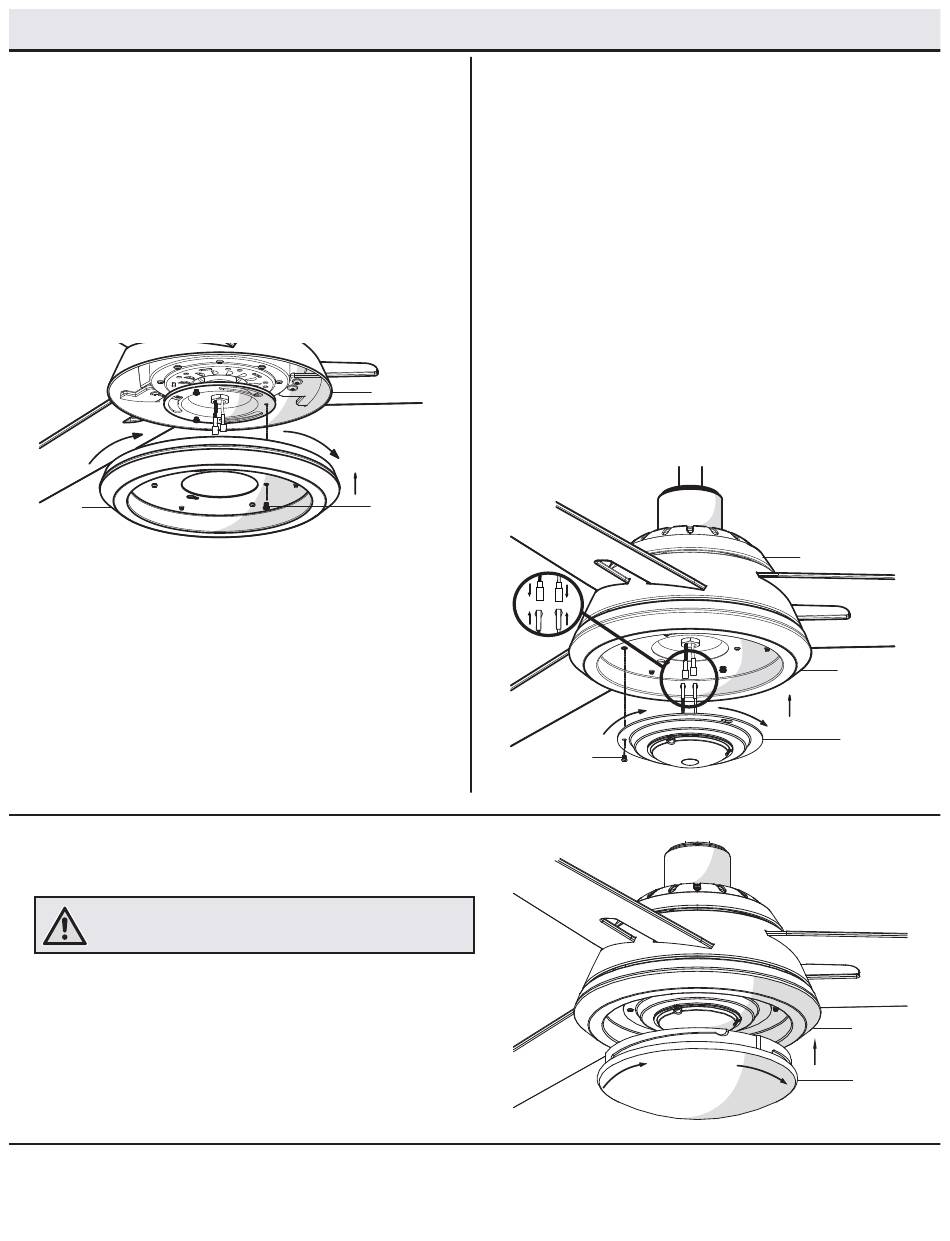

Attaching the light kit pan
□
Remove one screw (KK) from the black bracket below fan
motor assembly (E) and loosen but do not remove the other
two screws.
□
Push the light kit pan (G) up to the fan motor assembly (E)
so that the two loosened screw heads fit into the keyholes
slots. Turn the light kit pan (G) clockwise.
□
Re-install the screw (KK) that was removed in step 1.
□
Make sure all the screws are firmly tightened.
G
13
Installing the glass bowl
WARNING: To reduce the risk of injury, allow the glass to cool
completely before removing.
□
Place the bowl (I) into the light kit pan (G), by aligning the
three flat areas on the top flange of the bowl (I) with the three
raised dimples in the light kit pan (G).
□
Turn the shade clockwise until it stops.
12
Attaching the light kit fitter
assembly
□
Remove one screw (LL) from the light kit pan, and loosen, but
do not remove the other two screws.
□
Connect the blue wire exiting the bottom of the fan motor
assembly (E) with the black wire from the top of the light kit
fitter assembly (H).
□
Connect the white wire exiting the bottom of the fan motor
assembly (E) with the white wire from the top of the light kit
fitter assembly (H).
□
Push the light kit fitter assembly (H) up to the light kit pan so
that the two loosened screw heads fit into the keyhole slots.
Turn the light kit fitter assembly (H) clockwise to secure.
□
Re-install the screw that was removed in step 1.
E
□
Make sure all the screws are firmly tightened.
KK
13
LL
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
E
G
H
G
I
