4 GETTING STARTED

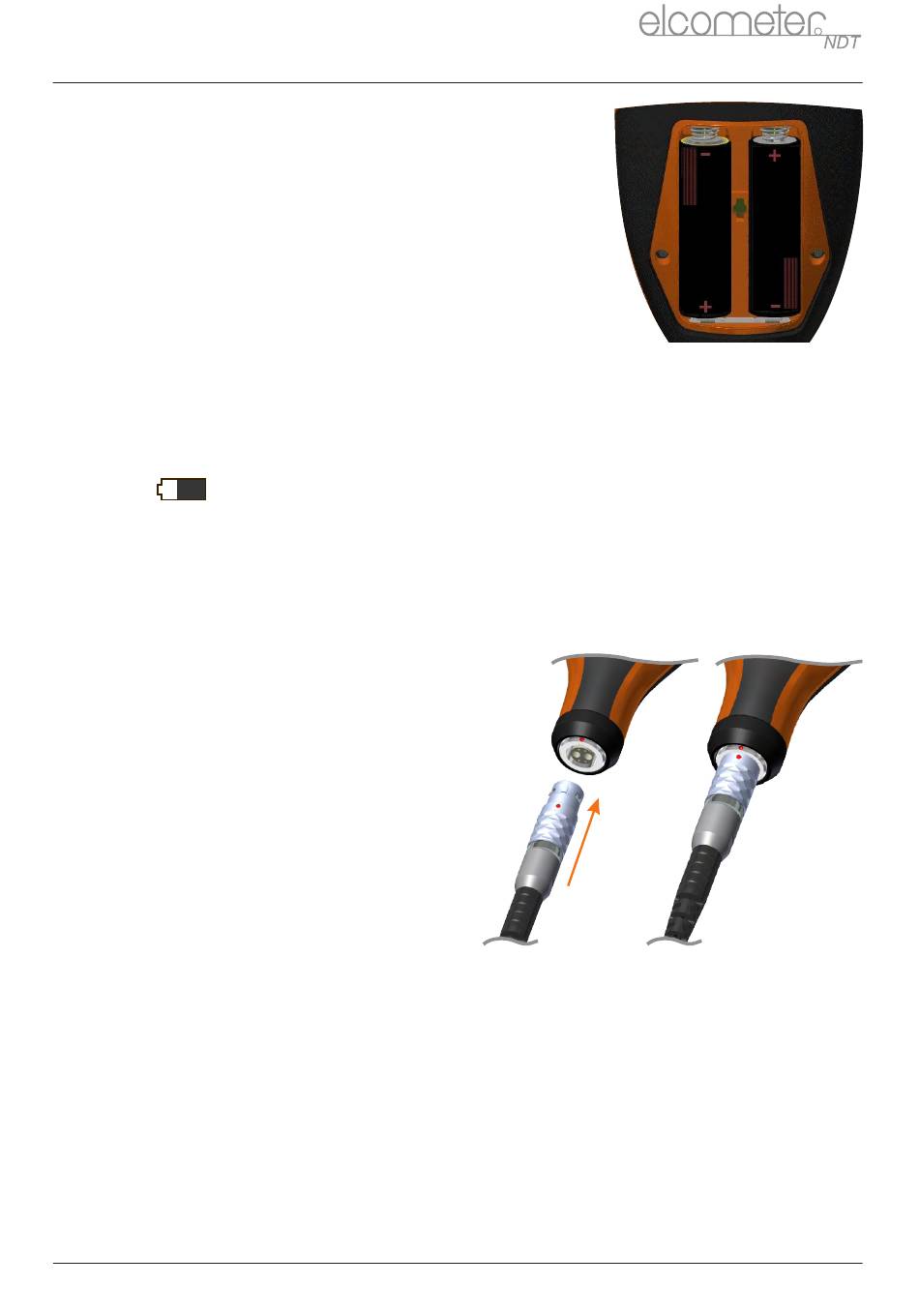

4.1 FITTING THE BATTERIES

Each gauge is supplied with 2 x AA alkaline
batteries.
To insert or replace the batteries:
1 Lift the latch on the battery compartment
cover and rotate anti-clockwise to remove
the cover.
2 Insert 2 batteries taking care to ensure
correct polarity.
3 Refit the cover and rotate the latch clockwise to close.
The battery condition is indicated by a symbol in the top right of the
display ( ):
Full symbol (orange) = batteries at full capacity

Empty symbol (red, flashing) = batteries at lowest

sustainable level
4.2 CONNECTING A TRANSDUCER
1 Align the red dot on the
transducer plug with the red dot
on the base of the gauge.
2 Push the transducer into the
gauge, ensuring that the
connector is fully engaged.
All single element delay line
transducers which can be connected
directly to the base of a PTG gauge -
see Section 16.1 'Transducers' on
page en-28 - are 'intelligent' transducers.
The transducer frequency and diameter will be identified
automatically by the gauge and the user will be prompted to select
the type of delay line attached (if any).
Details of the transducer connected can be viewed at any time via
Menu/About/Transducer Information.
