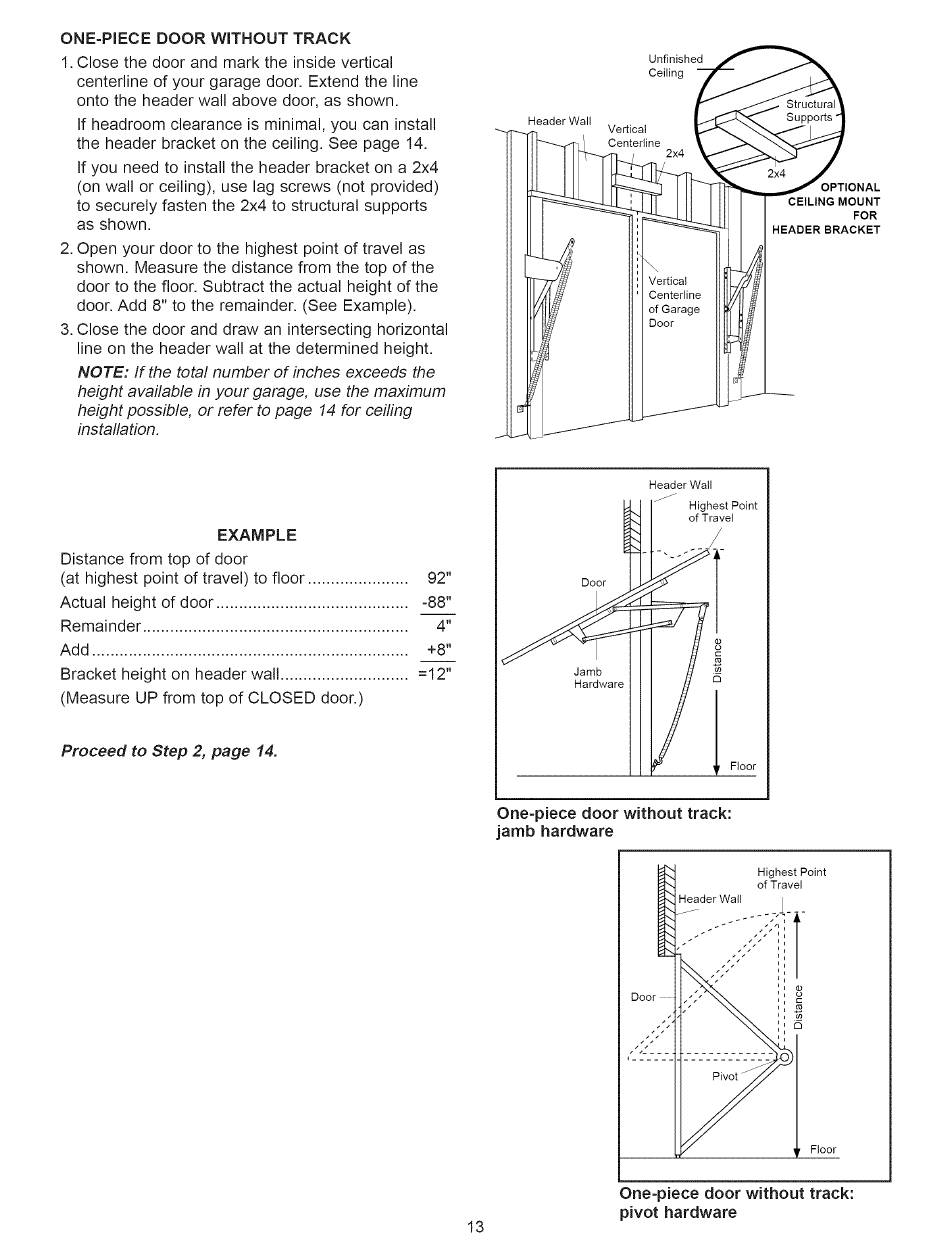

ONE-PIECE D OOR WITHOUT TRACK
1.Close the doorandmark the insidevertical
centerline o f yourgaragedoor. E xtend theline
ontothe header w allabove door,asshown.
If headroom clearance i s minimal, youcaninstall
theheader b racket o ntheceiling. S eepage14.
Ifyouneedto install t heheaderbracket o na 2x4
(onwallor ceiling), u selagscrews (notprovided)
tosecurely fastenthe2x4to structural supports
as shown.
2.Openyourdoortothe highest p ointof travel a s
shown. M easure t he distance f romthetopofthe
doortothefloor.Subtract theactual h eight o f the
door. A dd8"totheremainder. (SeeExample).
3.Close the dooranddrawanintersecting h orizontal
lineonthe header w allatthe determined h eight.
NOTE: If the total number of inches exceeds the
height available in your garage, use the maximum
height possible, or refer to page 14 for ceiling
installation.
Header Wall
Unfinished
Ceiling
Vertical
Centedine
2x4
OPTIONAL
CEILING MOUNT
FOR
HEADER BRACKET
EXAMPLE
Distance from top of door
(at highest point of travel) to floor ...................... 92"
Actual height of door .......................................... -88"
Remainder .......................................................... 4"
Add ..................................................................... +8"
Bracket height on header wall ............................ =12"
(Measure UP from top of CLOSED door.)
Proceed to Step 2, page 14.
Door 1
.Jamb
Hardware
Header Wall
Highest Point
of Travel
¢u
ii
C3
Floor
One-piece door without track:
jamb hardware
Door
t
/
s
• J__
J ....
Highest Point
of Travel
Header Wall
t t Jl
'J co
D
Floor
13
One-piece door without track:
pivot hardware
