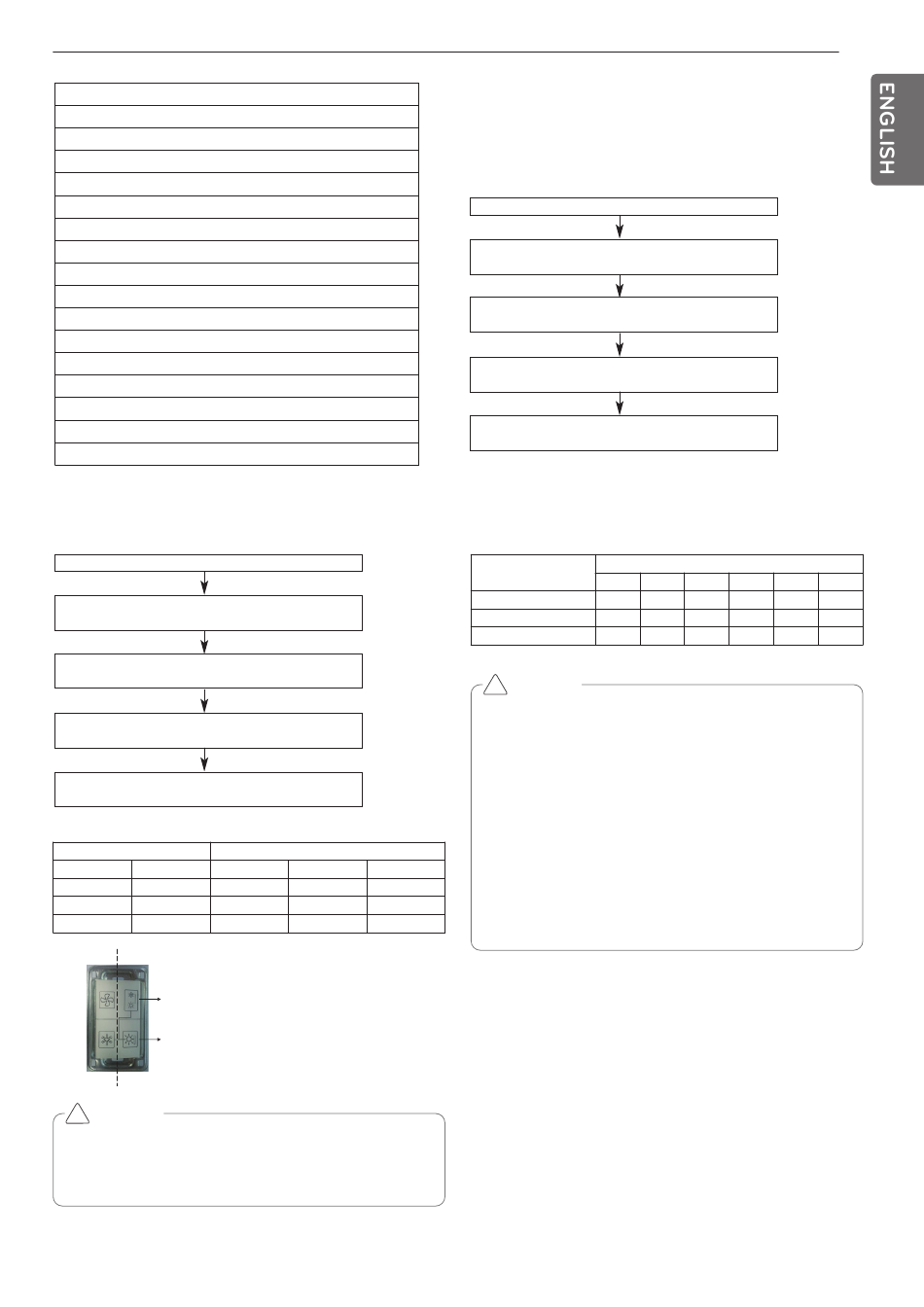

Group recognizing the central controller
No.0 group (00~0F)
No.1 group (10~1F)
No.2 group (20~2F)
No.3 group (30~3F)
No.4 group (40~4F)
No.5 group (50~5F)
No.6 group (60~6F)
No.7 group (70~7F)
No.8 group (80~8F)
No.9 group (90~9F)
No. A group (A0~AF)
No. B group (B0~BF)
No. C group (C0~CF)
No. D group (D0~DF)
No. E group (E0~EF)
No. F group (F0~FF)
Cool & Heat selector
How to set the mode
Turn on DIP switch No.5 of the master unit PCB
Use '▶' and '◀' button to mark "Func" in the 7 seg-
ment, and press ' ' button.
Use '▶' and '◀' button to mark "Fn1" in the 7 seg-
ment, and press ' ' button.
Use '▶' and '◀' button to select one from "OFF",
"op1", "op2" in the 7 segment, and press ' ' button.
Cool & Heat selection mode is set
Function setting
Switch control
Switch(Phase) Switch(Bottom)
Right Left Not operate
Right Right Not operate
Left - Not operate
Right side
Left side
Switch (Phase)
Switch (Bottom)
! CAUTION
• Request the function settings to the installation specialist during
the outside unit installation.
• When the function is not used, set it to OFF.
• If use a function, first install a Cool & Heat selector.
Function
OFF op1(mode) op2(mode)
Cooling Cooling
Heating Heating
Fan mode Off
Geothermal mode setting
If you want to use the product with heat source water of the low tem-
perature such as ground heat, it is the function that enables the use of
ground heat mode.
How to set the mode
Turn on DIP switch No.5 of the master unit PCB
Use '▶' and '◀' button to mark "Func" in the 7 seg-
ment, and press ' ' button.
Use '▶' and '◀' button to mark "Fn2" in the 7 seg-
ment, and press ' ' button.
Use ' ' and ' ' button to select between "ON" and
"OFF" in the 7 segment, and press ' ' button.
Decide the Geothermal mode according to
the setting mode.
Mode setting
- ON: Set to operate in geothermal mode
- OFF: Set to operate in general mode
Minimum temperature for anti freezing (°C)
Anti freeze type
0
Ethylene glycol (%) 0
Propylene glycol (%) 0
Methanol (%) 0
! CAUTION
• Request the function settings to the installation specialist during
the outside unit installation.
• When the function is not used, set it to OFF.
• Before changing the mode, make sure to check if the antifreeze
is added to the heat source water with appropriate ratio.
(If it is set to geothermal mode with inappropriate addition of an-
tifreeze or without antifreeze, there is a risk of product damage,
and we will not be responsible for such damage of the product.)
• When you add antifreeze, there may be increase of pressure dif-
ference in the heat source water system and product perform-
ance degradation.
• If it is in geothermal mode, add antifreeze according to the tem-
perature condition of at least -10°c.
(If the added amount is of -10°C or more, it may cause freeze
and burst of the heat source water.)
-5 -10 -15 -20
12 20 30 -
17 25 33 -
6 12 16 24
27
