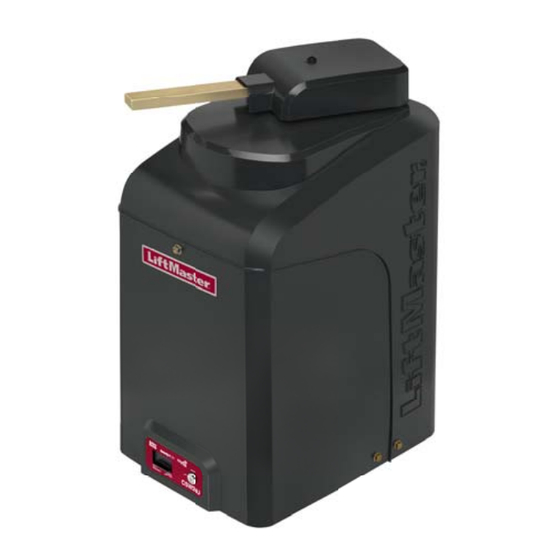

LiftMaster ELITE Serie Inicio Rápido

LiftMaster ELITE Serie Inicio Rápido

Ocultar thumbs Ver también para ELITE Serie:
1
2
3
4
5
6

Publicidad

Idiomas disponibles

Idiomas disponibles

Enlaces rápidos

Descargar este manual
QuickStar t
for single gate application
2016 UL 325 Gate Operators require use of LiftMaster
external monitored entrapment protection devices.
This QuickStart is intended to highlight a single gate
application. Each application is unique and it is the
responsibility of the purchaser, installer and end user to ensure
that the total gate system is installed and operated properly.
Refer to the installation manual for complete information
regarding installation, testing, and programming.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
LiftMaster.com
01-38135
© 2016, LiftMaster – All Rights Reserved
Determine location for concrete pad
and operator.
Dimension (A) thru (E) are from
the center of one pivot point to
the center of another pivot point.
D
minus 10" (25.4 cm)
10" (25.4 cm)
Distance
Chart A
DISTANCE
46"
35.5"
29.5"
35"
11"
45"
(116.8 cm)
(90.1 cm)
(74.9 cm)
(88.9 cm)
(27.9 cm)
(114.3 cm)
46.8"
35.5"
33.5"
42"
11"
37"
(118.7 cm)
(90.1 cm)
(85.1 cm)
(106.7 cm)
(27.9 cm)
(94 cm)
46.8"
37"
31.5"
40"
11"
41"
(118.7 cm)
(94 cm)
(80 cm)
(101.6 cm)
(27.9 cm)
(104.1 cm)
47.3"
37.3"
30"
37"
11"
45"
(120 cm)
(94.6 cm)
(76.2 cm)
(94 cm)
(27.9 cm)
(114.3 cm)
47"
35"
29.5"
32"
11"
45"
(119.4 cm)
(89 cm)
(74.9 cm)
(81.3 cm)
(27.9 cm)
(114.3 cm)
42.5"
33"
26.5"
28.5"
11"
41"
(108 cm)
(83.8 cm)
(67.3 cm)
(72.4 cm)
(27.9 cm)
(104.1 cm)
Chart B
DISTANCE
29.5"
35"
14"
43"
34.5"
34.8"
(87.6 cm)
(88.3 cm)
(74.9 cm)
(88.9 cm)
(35.6 cm)
(109.2 cm)
44"
36.5"
32.5"
42"
14"
32"
(106.7 cm)
(35.6 cm)
(81.3 cm)
(111.8 cm)
(92.7 cm)
(82.6 cm)
44"
37"
30.5"
40"
14"
40"
(111.8 cm)
(94 cm)
(77.5 cm)
(101.6 cm)
(35.6 cm)
(101.6 cm)
45"
37"
30.5"
37"
14"
43"
(114.3 cm)
(94 cm)
(77.5 cm)
(94 cm)
(35.6 cm)
(109.2 cm)
44.8"
35.8"
29.5"
32"
14"
44"
(113.7 cm)
(90.8 cm)
(74.9 cm)
(81.3 cm)
(35.6 cm)
(111.8 cm)
41"
39"
27.5"
28.5"
14"
41"
(104.1 cm)
(99.1 cm)
(69.9 cm)
(72.4 cm)
(35.6 cm)
(104.1 cm)
INSTALLATION
Install conduit and pour concrete pad.
Attach the operator to the concrete pad.
4.5" (11.4 cm)
Conduit location
4" (10.2 cm)
3" (7.6 cm)
10" (25.4 cm)
15" (38.1 cm)
24" (61 cm)
6" (15.2 cm) Above
Ground
Below the frost line. Check
all national and local
codes. Minimum of 24"
(61 cm) recommended in
regions with no frost line.
28" (71.1 cm)
24" (61 cm)
Weld long arm, short arm, and gate bracket.
Position the gate bracket.
46" (116.8 cm)
Adjust the operator arm length.
Install the cover.
Remove pin
from vent plugs
on gearboxes.
