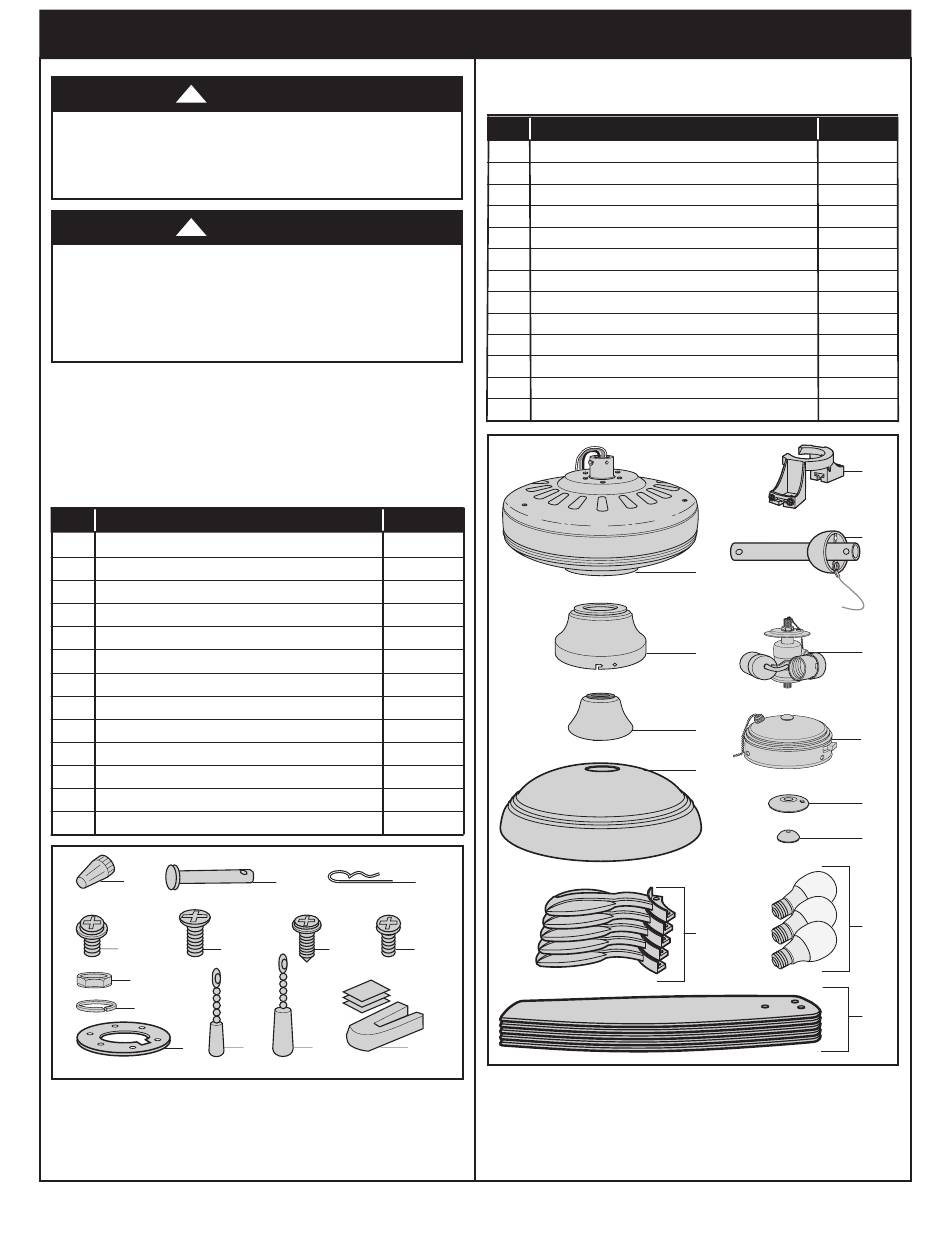

Unpacking Instructions; Package Contents; Hardware Contents - Luminance Brands Kathy Ireland Home ASHLAND CF717AP02 El Manual Del Propietario

WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-777-4440
WARNING
!
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
1.1
Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer
to exploded view illustration.

HARDWARE CONTENTS

Part Description
1 Wire Connectors, 12 ga.
2 Clevis Pin
3 Hairpin Clip
4 #8-32 x 8mm Washer Head Screws
5 1/4-20 x 1/2" Oval Head Screws
6 M5 Screw (spare)
7 5/32" Truss Screw (spare)
8 Hex Jam Nut
9 Split Lockwasher
10 Rubber Gasket
11 Small Wood Pendant w/Coupling
12 Large Wood Pendant w/Coupling
13 Blade Balance Kit
1
4 5
8
9
10
NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, call 1-800-777-4440
for replacement parts before proceeding.

1. Unpacking Instructions

Quantity
5
1
1
16
11
1
1
1
1
1
1
1
1
2 3
6 7
11 12 13

PACKAGE CONTENTS

Part Description
A Fan Motor Assembly
B Ceiling Cover with Decorative Cap
C Coupler Cover
D Glass Shade
E Flanges Set
F Blades Set
G Hanger Bracket, Dual Mount
H Hanger Ball/4.5" Downrod Assembly
I Light Fitter
J Switch Housing
K Bowl Cap
L Finial Nut
M 6.5-Watt Medium Base LED Bulbs
1.2
Remove the Fan Motor Assembly from the protective
plastic bag .
Please contact 1-800-777-4440 for further assistance
3
Quantity
1
1
1
1
5
5
1
1
1
1
1
1
3
G
H
A
I
B
C
J
D
K
L
M
E
F
