Set-up and Start-up
Protective hood
Protective shield
38

4.8 Assemble / connect accessories

5

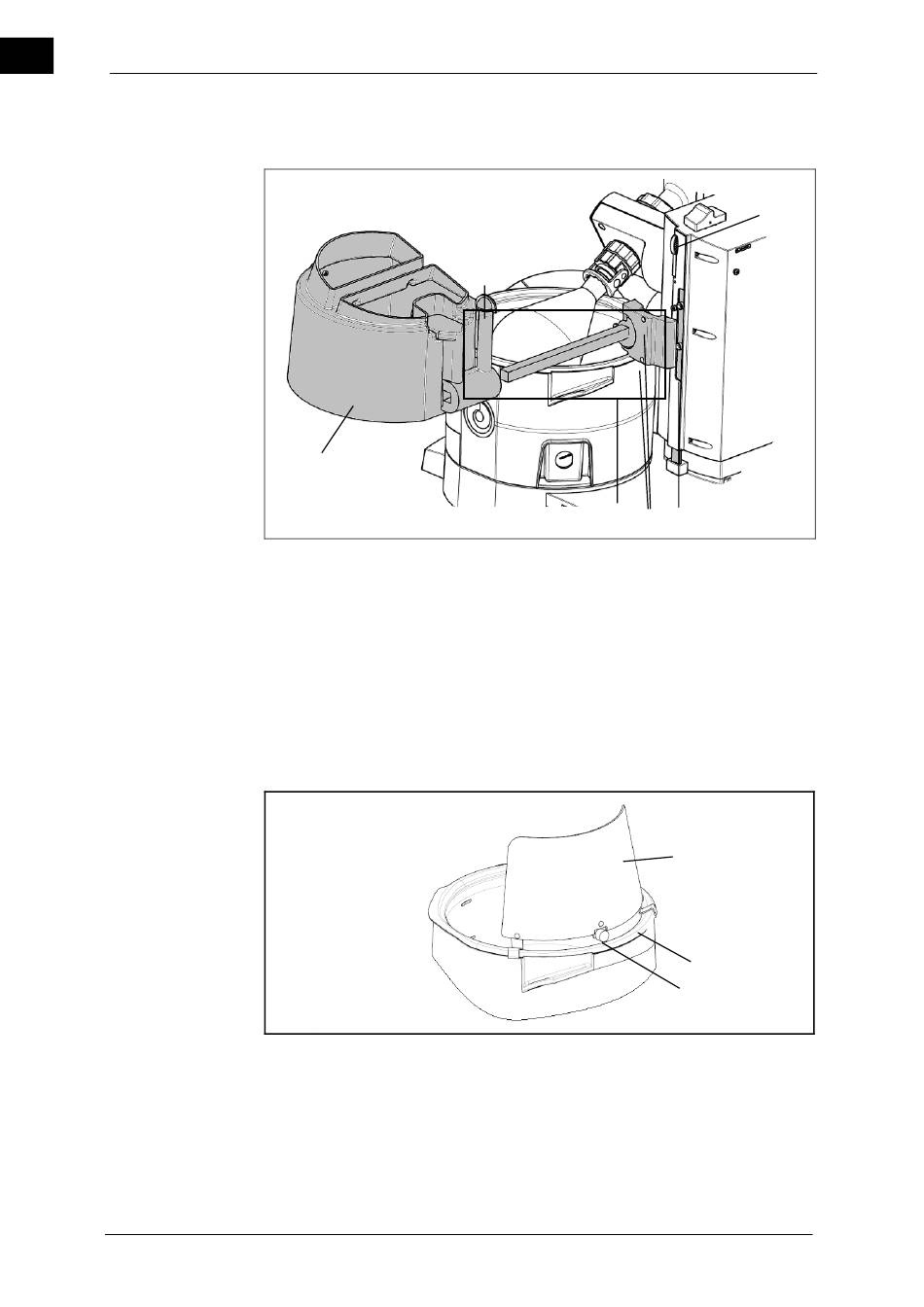

Figure 4-27: Assemble the protective cover
1 Height stop
2 Allen screws
3 Support cover
1. Screw the support cover (3) to the height stop (1) by using the two enclosed Allen
screws (2).
2. Release the clamping screw (4) and align the cover (5) over the heating bath by
shifting horizontally.
3. Tighten the clamping screw.
The cover is assembled. The cover can be opened by the handle.
Figure4-28: Assemble the protective shield
1 Protective shield
2 Heating bath
1. Move the lift upward.
2. Attach the protective shield (1) on the edge of the heating bath (2) and position so
that the (possibly available) cover can be easily opened.
4
3 2
4 Lock screw
5 Protective hood
6 Height stop lock
3 Eccentric screw
6
1
1
2
3
