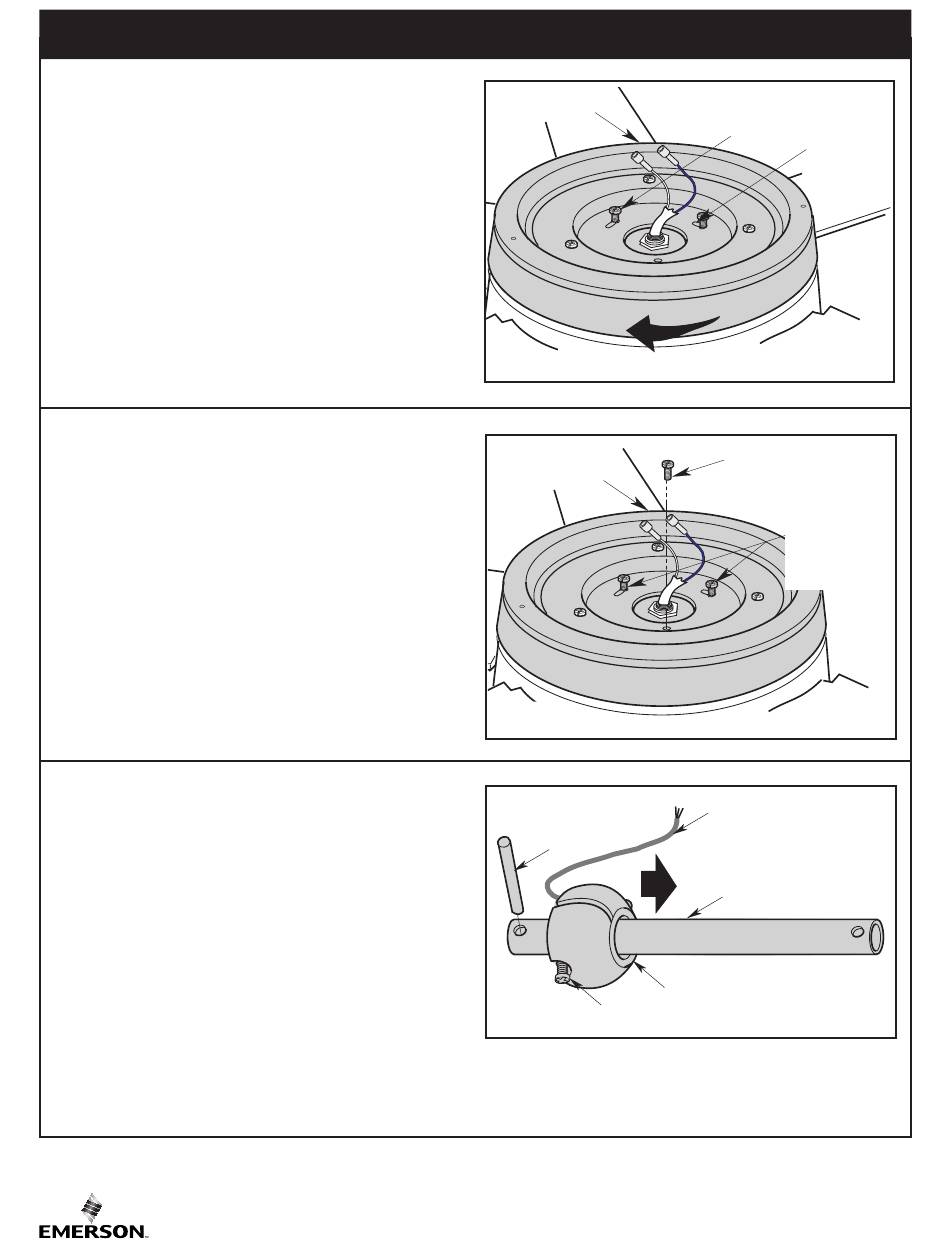

3. Ceiling Fan Assembly
3.4
P o s i t i o n t h e L o w e r H o u s i n g o n t o t h e F a n
Motor Assembly by rotating the Lower Housing
Counter-Clockwise to engage the Two loosened
#8-32 x 10 mm Serrated Pan Head Screws in the
Two Key Slots (Figure 4).
3.5
Reinstall the previously removed #8-32 x 10 mm
Serrated Pan Head Screw into the Lower Housing
(Figure 5).
Secure the Lower Housing by tightening the Three
#8-32 x 10 mm Serrated Pan Head Screws (Figure 5).
A spare #8-32 x 10 mm Serrated Head Pan Screw
supplied in parts bag, if needed.
The LED Light Fixture Assembly will be installed during
the Final Assembly, after Ceiling Fan is hung and
wired.
3.6
Carefully turn the partially assembled Ceiling Fan right
side up and place the Fan securely into the packing
styrofoam.
Remove the Hanger Ball by loosening the Phillips Head
Set Screw in the Hanger Ball until the Ball falls freely
down the 4.5" Downrod (Figure 6).
Remove the Pin from the 4.5" Downrod, then remove
the Hanger Ball (Figure 6).
Retain the Pin and Hanger Ball for reinstallation in
Step 3.13.
Note: Do not loosen the Screw that attaches the
Green Ground Wire to the Hanger Ball.
(Continued)
LOWER
HOUSING
ROTATE COUNTER-CLOCKWISE
Figure 4
LOWER
HOUSING
Figure 5
PIN
PHILLIPS HEAD SET SCREW (LOOSENED)
Figure 6
6
TWO LOOSENED #8-32 x 10 mm
SERRATED PAN HEADS
SCREWS
TWO KEY
HOLE SLOTS
REINSTALL ONE
#8-32 x 10 mm SERRATED
PAN HEAD SCREW
RETIGHTEN TWO
#8-32 x 10 mm
SERRATED PAN
HEAD SCREWS
GREEN GROUND WIRE
4.5" DOWNROD
HANGER BALL
U.L. Model No.: CF930L
