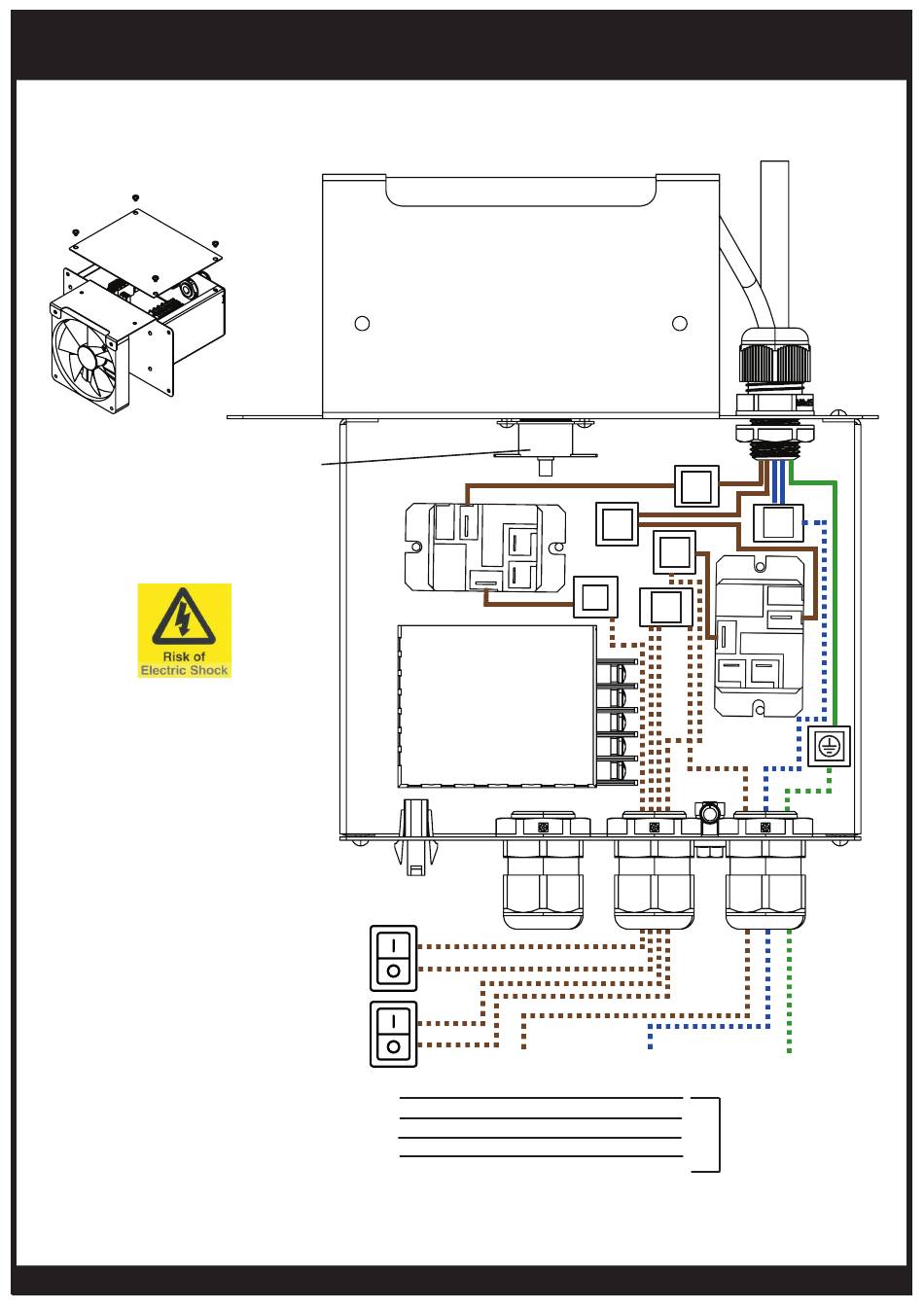

WIRING DIAGRAM FOR LOW CLEARANCE CEILING RECESS KIT
4500W (FOR USE WITH WALL SWITCH)
BELOW IS A SIMPLIFIED DIAGRAM OF THE TERMINAL BOX.
ALL CONNECTIONS ADJUSTED BY THE INSTALLER ARE DISPLAYED.
ITEMS NOT DISPLAYED SHALL NOT BE MODIFIED.
Non-self resetting
thermal switch
TOP VIEW OF
TERMINAL BOX
WARNING
AC Single Phase Heater
must be permanently
installed and hard wired
by an authorised/licensed
person.
This product is designed for use
with both 220-240V & 208V
Platinum Electric Heaters.
WALL SWITCH (3000W)
SUPPLIED BY CUSTOMER
WALL SWITCH (1500W)
SUPPLIED BY CUSTOMER
WIRES DENOTED BY DASHED
LINES ARE SUPPLIED BY THE
INSTALLER.
NOTES:
• The ceiling recess kit is designed for the Platinum Electric SII 2300W, 3400W & 4500W units.
BROWN
LIVE/ACTIVE
OR HOT LEG 1
OR
PHASE A
OR
PHASE B
OR PHASE C
bromic.com
S2
S4
S3
S1
L
BLUE
GREEN/YELLOW
NEUTRAL
HOT LEG 2
US ONLY
PHASE B
240V OR 208V
PHASE C
PHASE A
HEATER
CABLE
N
EARTH
