17 Technical Information
Description of the Turbo-V 2K-G

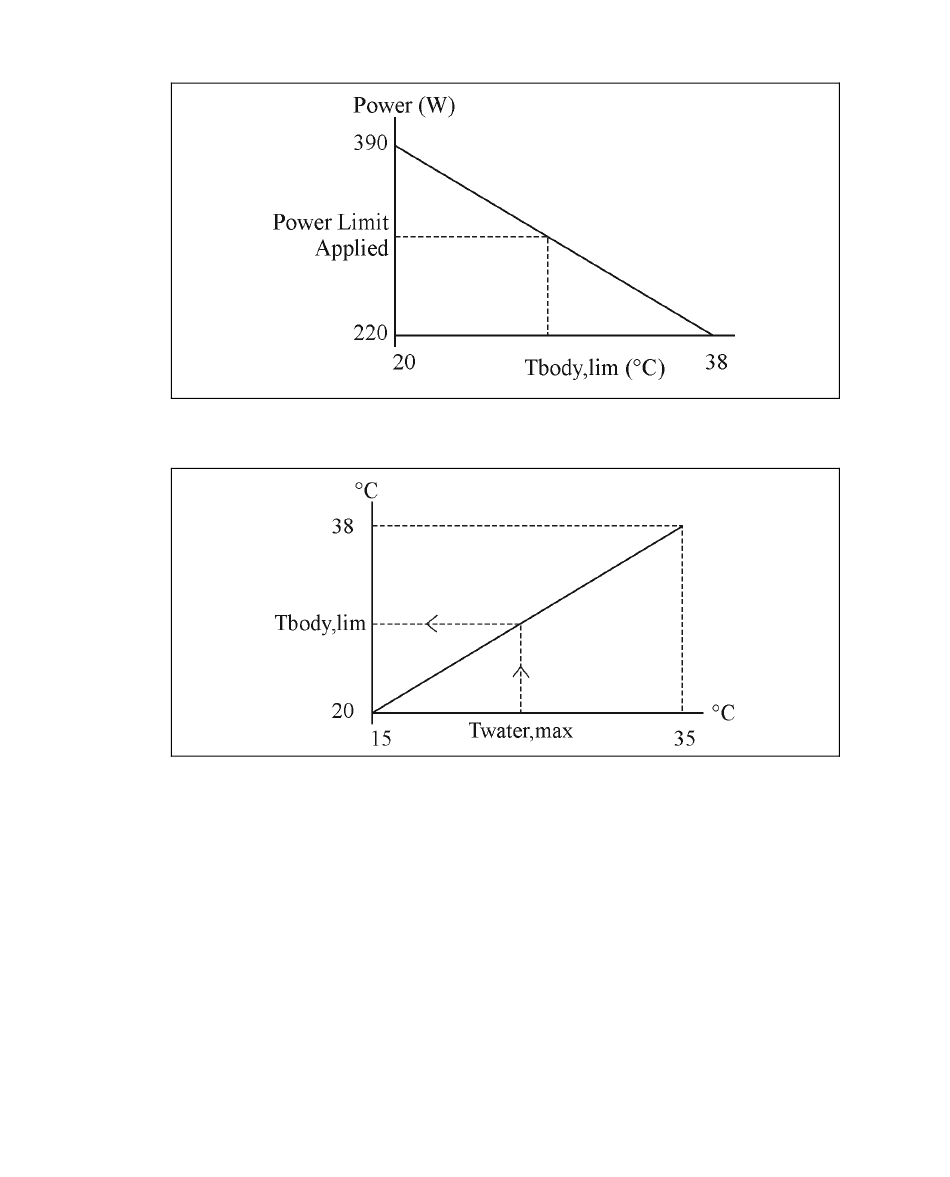

Figure 6
Figure 7
A thermistor sensor is mounted near the upper bearing in order to
read the bearing temperature and to prevent the pump from
overheating.
A thermistor sensor is mounted near the water-cooling channel in
order to evaluate the cooling efficiency.
The pump can be water cooled only. For this purpose the customer
must use the dedicated chan-nel on the pump body.
The pump is balanced after assembly with a residual vibration
amplitude less than 0.01 μm.
304/372
Figure 1
Figure 2
Turbo-V 2K-G Pumping System User Manual / 87-900-968-01 (G)
