17 Technical Information
MoniTorr
Functionality
As soon as it is activated, file download establishes a connection with
the MoniTorrs on the network and updates the data that are present
on the panel displayed on the personal computer monitor.
As soon as it is activated it starts to scan the network and it
continuously downloads the file when it is ready.
The program is configured to work with the COM 1 serial port. If a
change is required, click the right mouse button with the cursor on
the Agilent logo on the right-hand side of the windows bar.

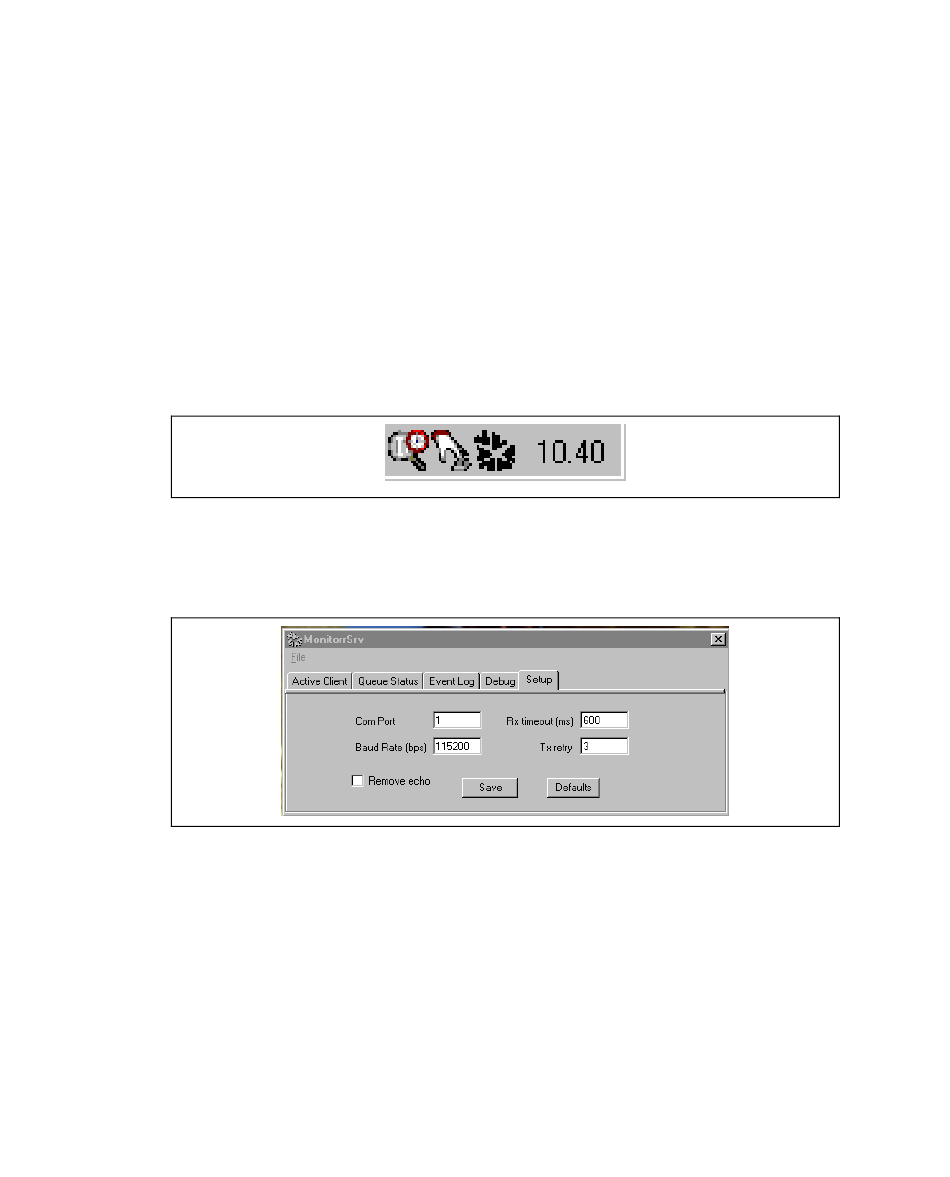

Figure 36
Select the Setup option and the program displays the following:
Figure 37
Select the COM port of the computer being used and then check
whether or not all the other parameters are the same as those shown
in the example. It is also very important to have the same configu-
ration for the Remote Echo option.
At this point save the Setup and exit from the program. Exit also
from the FileDownload program. The program will be reconfigured
the next time the computer is restarted.
