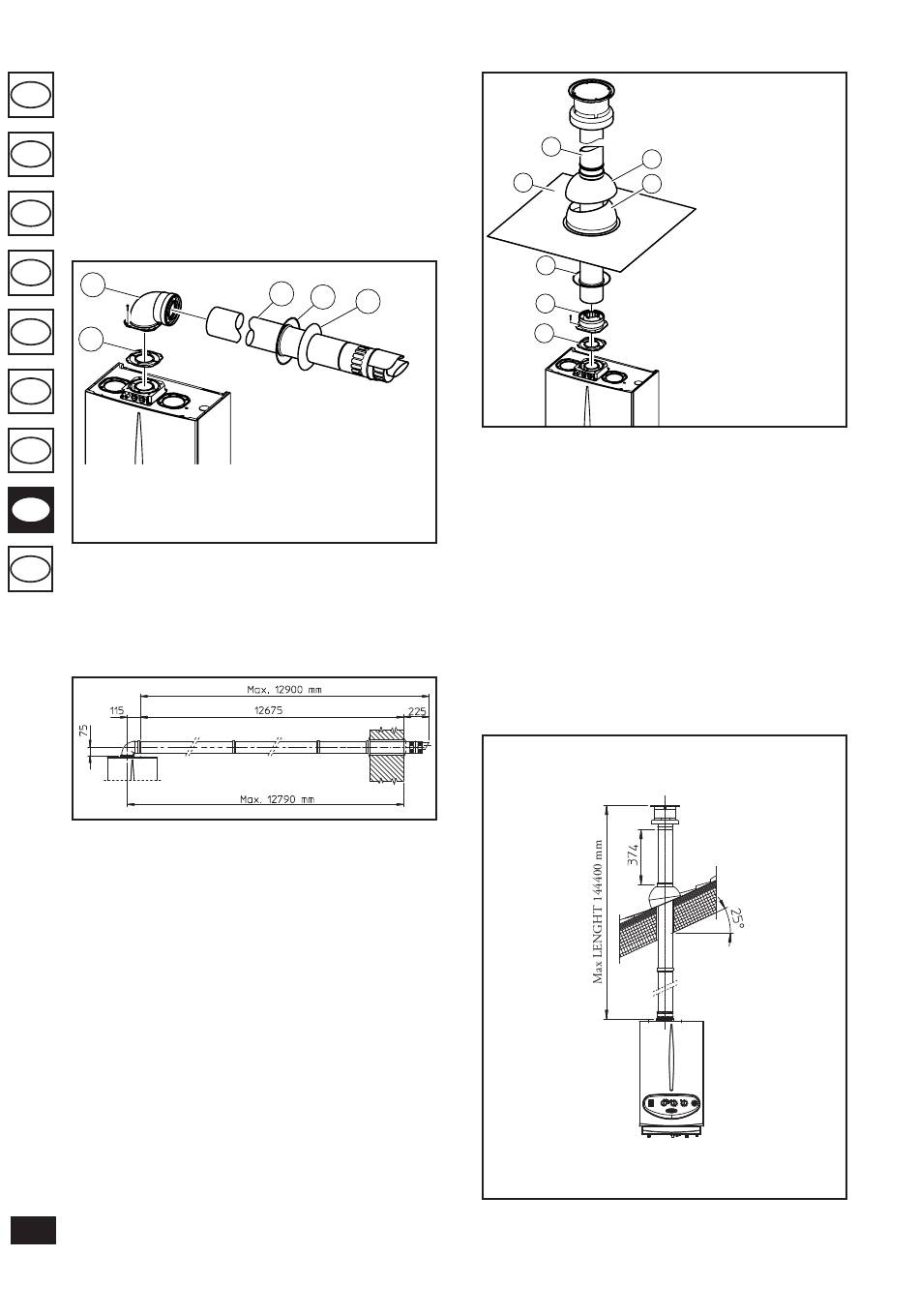

Horizontal intake kits - exhaust Ø 60/100.
Kit assembly: install the bend with flange (2) on the central hole of the
ES
boiler inserting the seal (1) (which does not require lubrication), position-
ing it with the round protrusions downwards in contact with the boiler
flange and tighten using the screws supplied with the kit. Fit the male end
PL (smooth) of the Ø 60/100 concentric terminal pipe (3) up to the stop
on the female end of the bend (2), making sure the relevant internal and
external rings are fitted; this will ensure hold and joining of the elements
making up the kit.
TR
N.B.: for correct operation of the system the terminal with grill must be
correctly installed, respecting the indication "top" on the terminal.
CZ
2
SI
1
HU
RU
IE
• Coupling extension pipes and concentric elbows Ø 60/100. To install
SK
snap-fit extensions with other elements of the boiler assembly, proceed as
follows: fit the concentric pipe or elbow with the male section (smooth)
on the female section (with lip seal) to the end stop on the previously
installed to ensure sealing efficiency of the coupling.
The Ø 60/100 kit can be installed with the rear, right side, left side and
front outlet.
C13
• Extensions for horizontal kit. The horizontal intake-exhaust kit Ø 60/100
can be extended up to a max. horizontal length of 12.9 m, including the
grill terminal and excluding the concentric bend leaving the boiler. This
configuration corresponds to a resistance factor of 100. In this case special
extensions must be requested.
N.B.: When installing the ducts, a section clamp with pin must be installed
every 3 metres.
• External grill. N.B.: for safety purposes, do not even temporarily obstruct
the boiler intake/exhaust terminal.
Vertical kit with aluminium tile Ø 60/100.
Kit assembly: install the concentric flange (2) on the central hole of the
boiler inserting the seal (1) (not requiring lubrication), positioning it with
the round protrusions downwards in contact with the boiler flange and
tighten using the screws supplied with the kit.
Imitation aluminium tile installation: replace the tile with the aluminium
sheet (4), shaping it to ensure that rainwater runs off. Position the fixed
half-shell (6) on the aluminium tile and insert the intake/exhaust pipe (5).
Fit the male end (5) (smooth) of the Ø 60/100 concentric terminal up to
the stop on the flange (2), making sure that the ring (3) is already fitted; this
will ensure seal and joining of the elements making up the kit.
188
C13
3
4
5
The kit comprises:
1 - Seal (1)
1 - Concentric bend Ø 60/100 (2)
1 - Concentric intake/exhaust
terminal Ø 60/100 (3)
1 - White internal ring (4)
1 - Grey external ring (5)
5
7
4
6
3
2
1
• Coupling extension pipes and concentric elbows. To install possible cou-
pling extensions on other fume extraction elements, proceed as follows:
fit the male end (smooth) of the concentric pipe or concentric elbow up
to the stop on the female end (with lip seals) of the previously installed
element; this will ensure correct hold and joining of the elements.
Caution: if the exhaust terminal and/or extension concentric pipe needs
shortening, consider that the internal duct must always protrude by 5 mm
with respect to the external duct.
This specific terminal enables flue exhaust and air intake in a vertical
direction.
N.B.: the vertical kit Ø 60/100 with aluminium tile enables installation on
terraces and roofs with maximum slope of 45% (24°) and the height between
the terminal cap and half-shell (374 mm) must always be respected.
The vertical kit with this configuration can be extended to a max. vertical
length of 14.4 m, including the terminal. This configuration corresponds
to a resistance factor of 100. In this case specific extensions must be re-
quested.
C33
The kit comprises:
1 - Seal (1)
1 - Female concentric flange (2)
1 - Ring (3)
1 - Aluminium tile (4)
1 - Intake/Exhaust concentric pipe
Ø 60/100 (5)
1 - Fixed half-shell (6)
1 - Mobile half-shell (7)
C33
