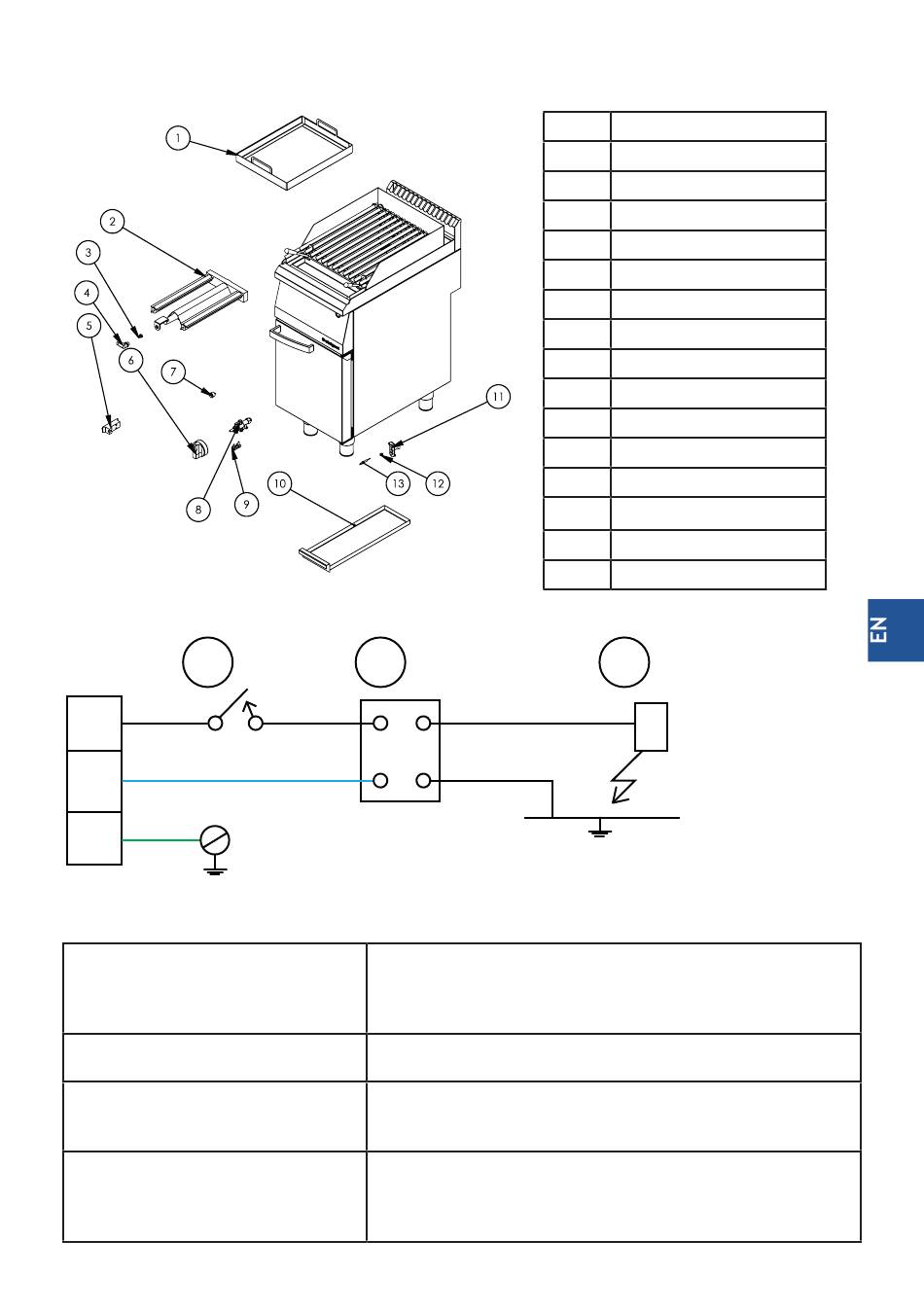

7. LIST OF SPARE PARTS FOR 9732010, 9732030, 9732110, 9732130
8.

ELECTRICAL WIRING DIAGRAM

1
L
N
PE
9. TROUBLESHOOTING
The main burner pilot does not
work
The pilot's flame is not retained
The main burner does not work.
Main burner flame burns yellow
2
4
•
Gas pressure is too low
•
The pilot nozzle is clogged.
•
The gas valve is defective.
•
Electrode damaged
•
Broken thermocouple or insufficiently heated by the pilot
flame.
•
Gas pressure is too low
•
The main burner nozzle is clogged
•
The gas valve is defective.
•
Wrong amount of air supplied to the main burner -
requires adjustment of the sleeve at the main burner
nozzle
•
Soiled main burner - holes
- 69 -
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
3
5
Part name:
Stone container
Burner
Nozzle
Elbow
Generator
Knob
Switch
Valve
Valve brace
Drawer
Remote
Pilot nozzle
Electrode
Grate for meat
Grate for fish
1. Button
2. Spark regulator
3. Electrode
