LED LIGHT FIXTURE INSTALLATION:
Tuck wires into the LED Light Fixture Assembly and
position in the Lower Housing Assembly .
Attach the LED Light Fixture Assembly to the Lower
Housing by rotating the LED Light Fixture Assembly
clockwise to engage the loosened screws in the two
LED Light Fixture Assembly Keyhole Slots (Figure 17) .
Reinstall and tighten the 8-32 x 5/16" Pan Head Screws
that was previously removed (Figure 17) .
Secure the LED Light Fixture Assembly by tightening
the two previously loosened 8-32 x 5/16" Pan Head
Screws (Figure 17) .
A spare 8-32 x 5/16" Pan Head Screw supplied in parts
bag, if needed .
WARNING
!
To avoid possible fire or shock, do not pinch wires
between the lower housing and the LED light fixture
assembly.
6.6
Place the Shade into the opening in the Lower Housing,
aligning the three Flat Areas on the top edge of the
Shade with the three raised Dimples on the Lower
Housing and turn the Shade clockwise until it stops
(Figure 18) .
NOTE: Periodically check that the Shade is seated
fully clockwise in the Lower Housing.
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan .

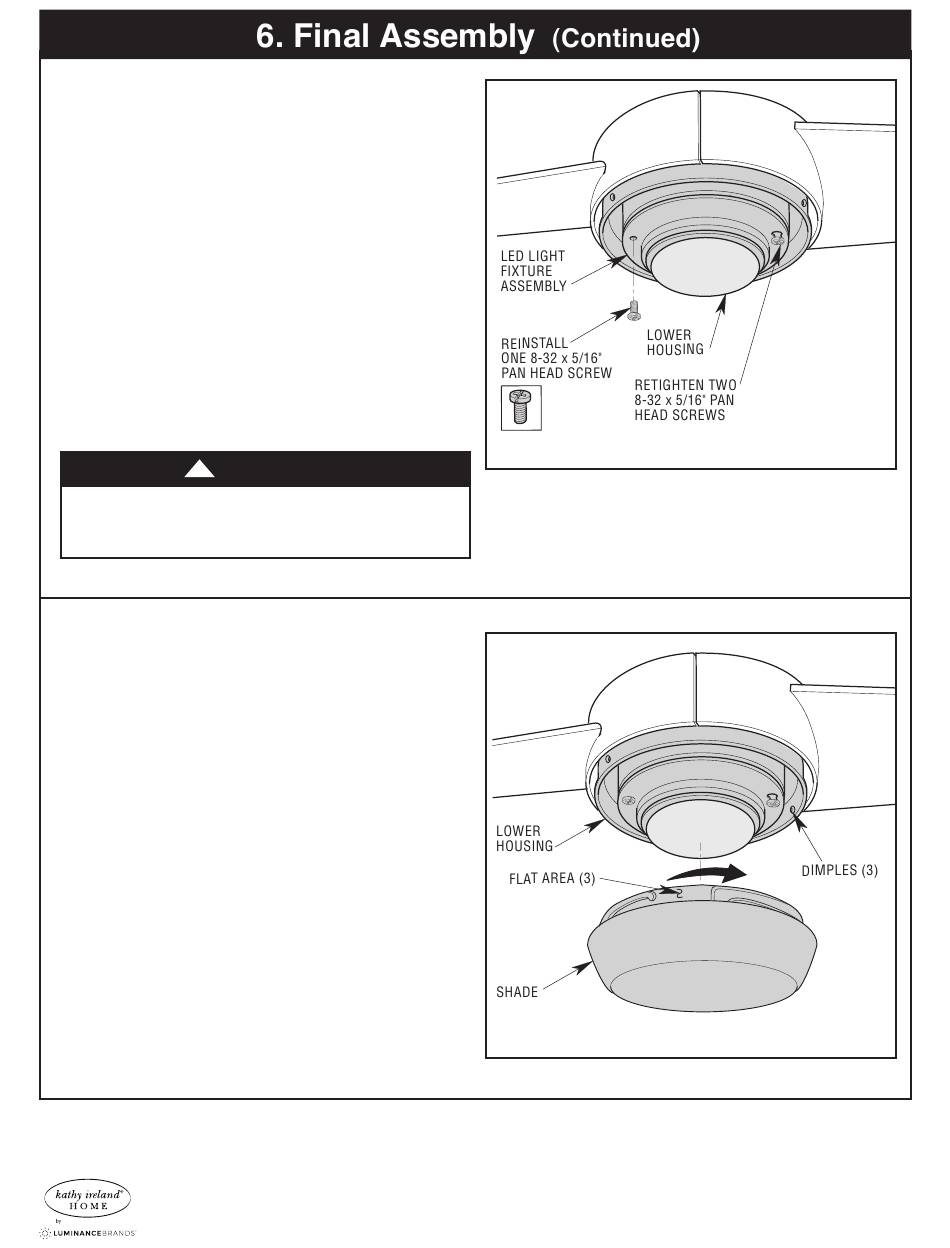

Figure 17
