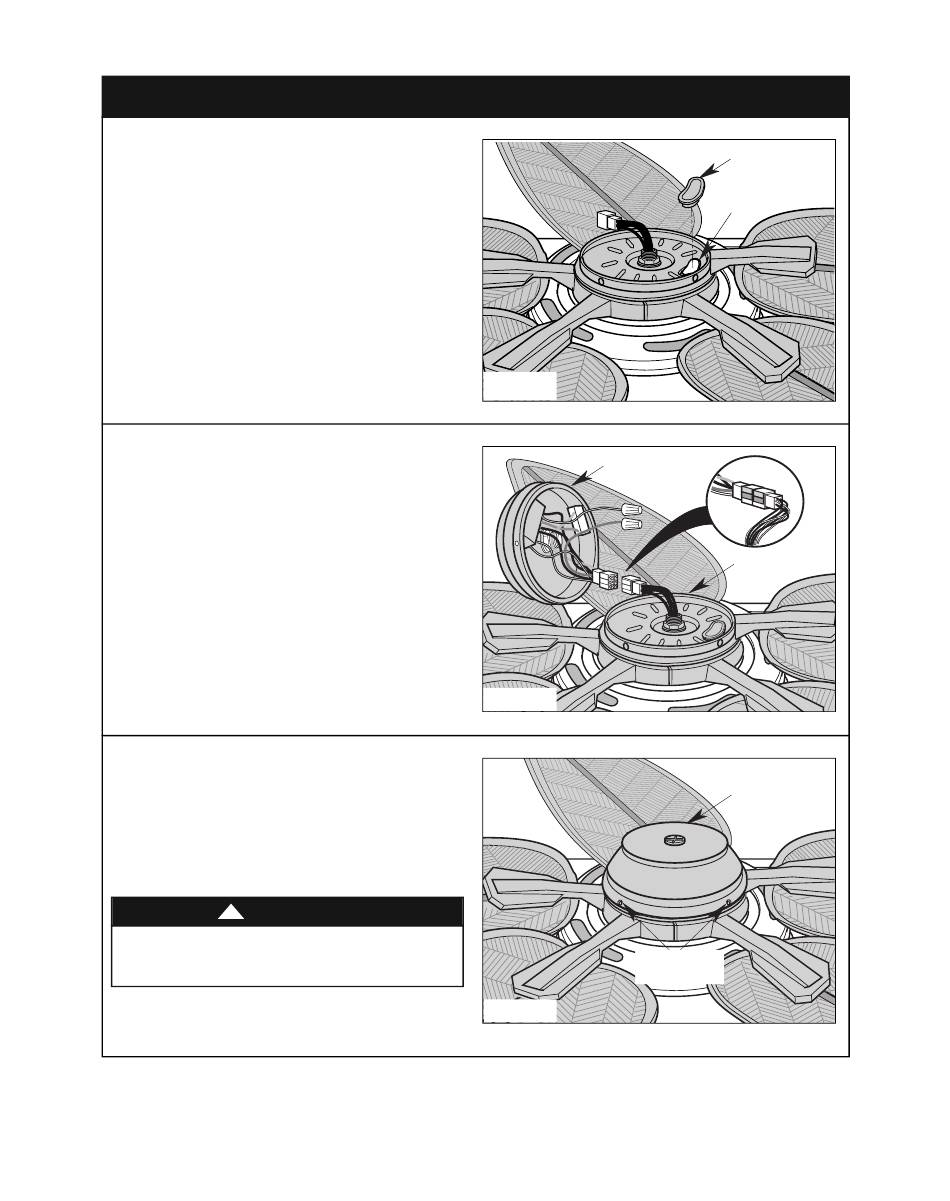

4. Switch Cover Assembly Only
4.8
Locate the rubber plug from the hardware pack and install
it into the blade installation slot of the switch housing plate
NOTE: The rubber plug must be installed to prevent
by firmly pushing it into the slot (Figure 21).
water penetration of the switch housing assembly.
4.9
Position the switch cover near the switch housing plate at
the bottom of the motor housing assembly.
Align and engage the large white switch cover electrical
connector with the large white motor electrical connector.
The two connectors are keyed and color-coded and must
be mated correctly (color-to-color) before they can be
correctly engaged (Figure 22 ).
Make sure the connector latch closes to properly to lock
both pieces together.
4.10
Carefully tuck all wires and electrical connectors into the
switch cover and carefully install it onto the switch housing
plate (Figure 23).
Spin the switch cover to align the three holes in the cover
with the switch housing plate threaded holes.
WARNING
!
To avoid possible fire or shock, do not pinch wires
between the switch cover and the switch housing
plate.
All manuals and user guides at all-guides.com
Figure 21
Figure 22
Figure 23
13
(Continued)
RUBBER PLUG
BLADE
INSTALLATION
SLOT
SWITCH COVER
SWITCH COVER
PLATE
SWITCH COVER
SWITCH COVER
HOLES (3)
emersonfans.com
Please contact 1-800-654-3545 for further assistance
U.L. Model No.: CF135
