In order to install level probes:
- Take the three probes from inside the electric switchboard (probe cabinet). Fully tighten
in the screw and then take off the plastic sleeve.
- Take the 1mm² cross section cable, connect it to the core and put the plastic sleeve
back on the sensor. Repeat the procedure with the other sensor.
- Connect the probes to the electrical probe switchboard, terminals 5, 6 and 7.
- Connect the power supply of the electric valve to the electrical probe switchboard,
terminals 3 and 4.
- Connect the power supply of the electrical probe switchboard (terminals 1 and 2) to the
main control cabinet.
Fig. 24
Place silicone between the connection of the probe and the cable in order to avoid false
contacts caused by water oxidation.

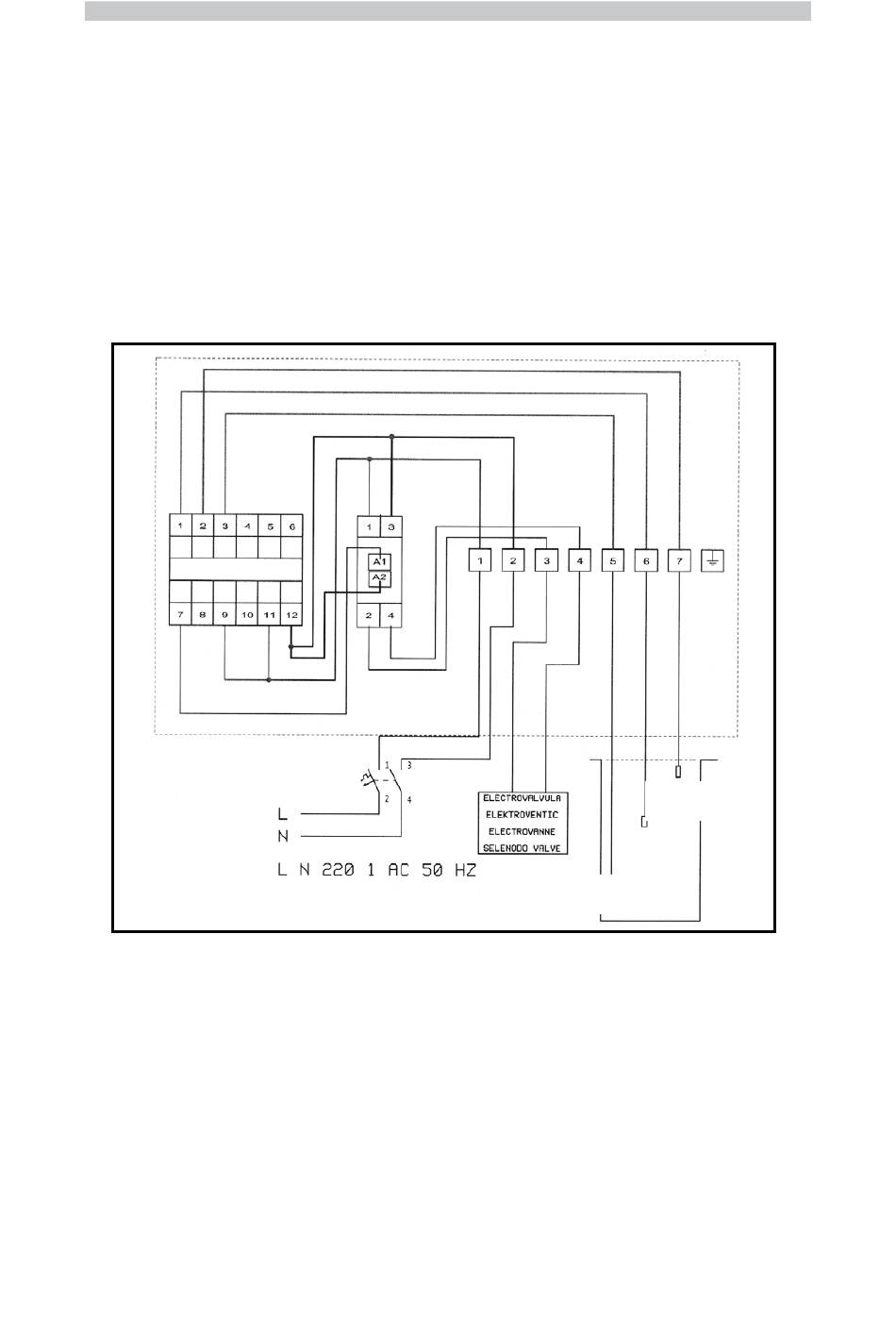

Diagram of electrical switchboard controlling level probes.
